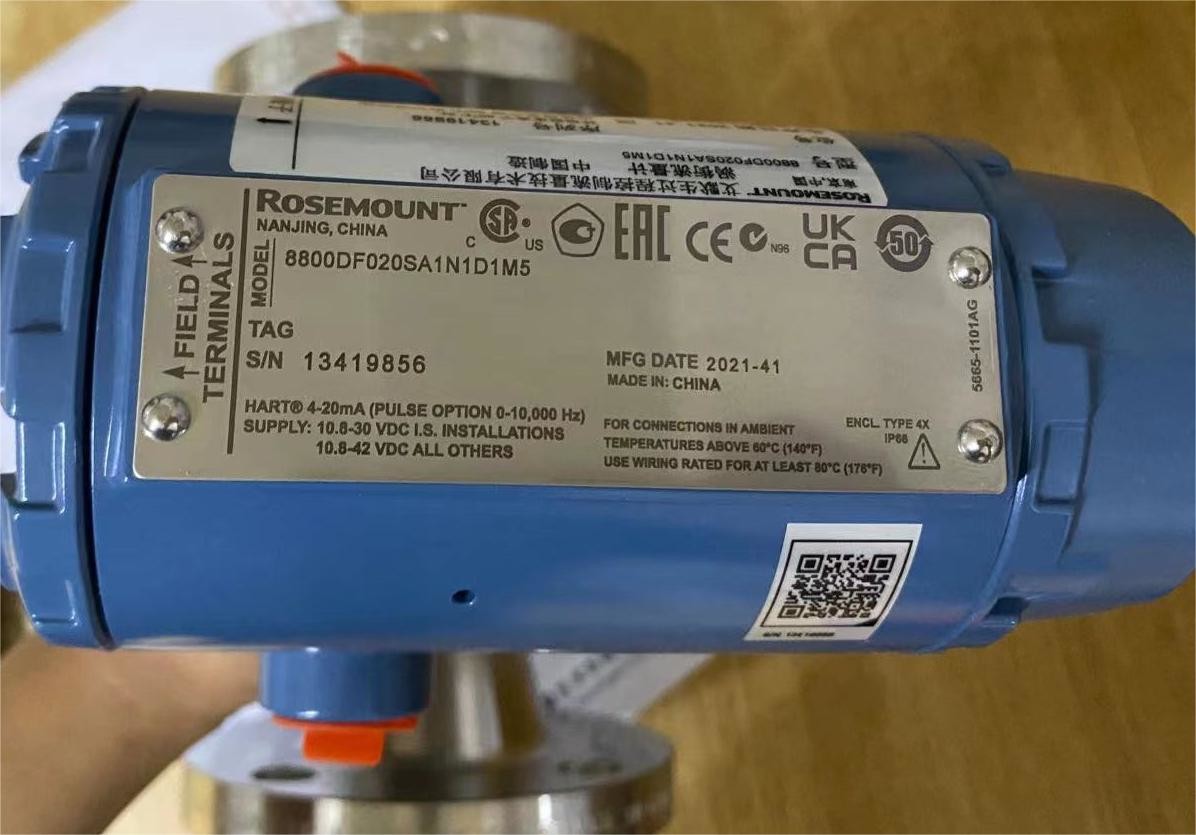

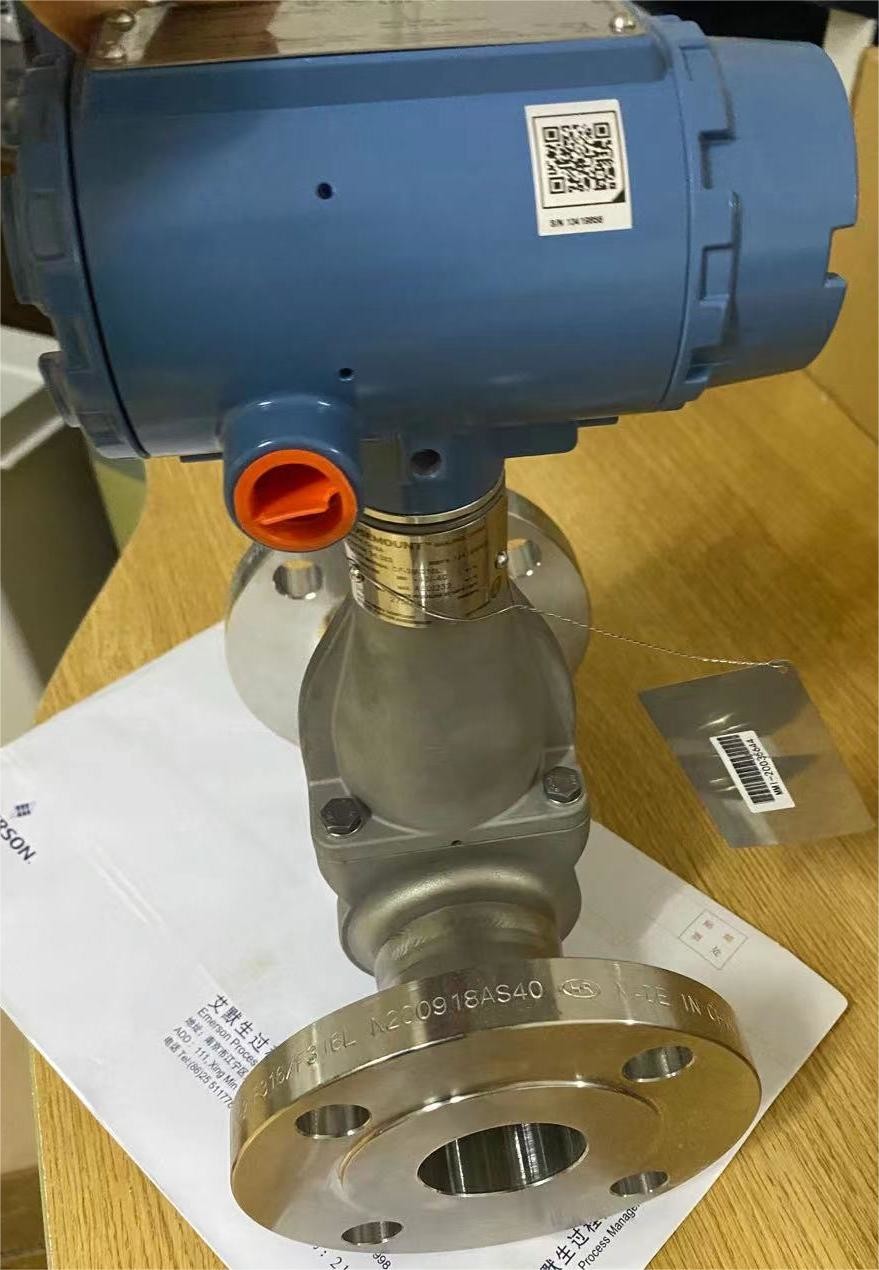

8800D Series Emerson Rosemount Transmitter Vortex Flow Meter 8800DF020SA1N1D1M5
Product Details:
| Place of Origin: | China |
| Brand Name: | ROSEMOUNT |
| Certification: | CE |
| Model Number: | 8800DF020SA1N1D1M5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Model: | 8800D | Meter Style: | Standard Body Style For Use With Flanged, Welded, And Threaded Process Connections |
|---|---|---|---|
| Line Size: | 2 Inch (50 Mm) | Wetted Materials: | 316 Wrought Stainless And CF-3M Cast Stainless; Material Of Construction Is 316/316L. |
| Process Connection Style And Pressure Rating: | EN 1092-1 PN 16 Type F | Housing Material And Conduit Entries: | Aluminum Housing, Two ½–14 NPT Conduit Entries |
| Outputs: | Modbus RS-485 (device Status And 4 Dynamic Variables) | ||
| Highlight: | 8800D Series Emerson Rosemount Transmitter,Emerson Rosemount Transmitter 50mm,vortex flow meter 2inch |
||
Product Description

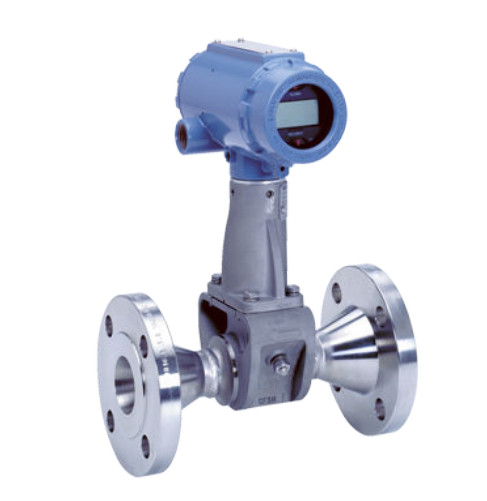

Rosemount 8800D Series Vortex Flow Meter 8800DF020SA1N1D1M5
The Rosemount 8800D Series Vortex flow meter is available in wafer, flanged, reducer flange, dual sensor, and high pressure designs. The all-welded non-clog design on the Rosemount 8800D Series Vortex flow meter eliminates impulse lines, ports and gaskets which improve reliability. Mass balancing of the sensor system and the Patented Adaptive Digital Signal Processing (ADSP) provide the meters vibration immunity.
The unique isolated sensor design on the Rosemount 8800D Series Vortex flow meter allows sensor replacement without breaking the process seal. All line sizes use the same sensor design allowing a single spare to serve every meter. Troubleshooting with the Rosemount 8800D Series Vortex flow meter is simple through device diagnostics and enables field verification of the meter electronics and sensor without shutting down the process.
The Rosemount 8800D Series Vortex flow meters include the Reducer Vortex. This meter extends the measurable flow range at a reduced cost. The Reducer eliminates field assembly and welding of separate reducers and piping which can decrease installation costs by as much as 50%. By incorporating the Reducer ™ Vortex the low-end measurable flow range is doubled. The meter is available as a flanged design from 1 to 12" in stainless steel and nickel alloy and also features Foundation fieldbus functionality.
