3/4 MNPT Emerson Rosemount Toroidal Conductivity Sensor 228-04-21-54-61
Product Details:
| Place of Origin: | MEXICO |
| Brand Name: | ROSEMOUNT |
| Certification: | CE |
| Model Number: | 228-04-21-54-61 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Sensor Type: | Toroidal Conductivity Sensor | Materials Of Construction: | Glass Filled Tefzel |
|---|---|---|---|
| Process Connection: | 3/4 In. MNPT | Cable Type: | Unshielded Cable |
| Cable Length: | 20 Ft (6.1 M) | Wetted Materials: | Body Materials Either Glass-filled PEEK, Glass-filled Tefzel, Or Unfilled Tefzel. Option-20 Has EPDM Gasket |
| Highlight: | 3/4 MNPT Rosemount Toroidal Conductivity Sensor,20ft Rosemount Toroidal Conductivity Sensor,6.1m emerson toroidal conductivity sensor |
||
Product Description

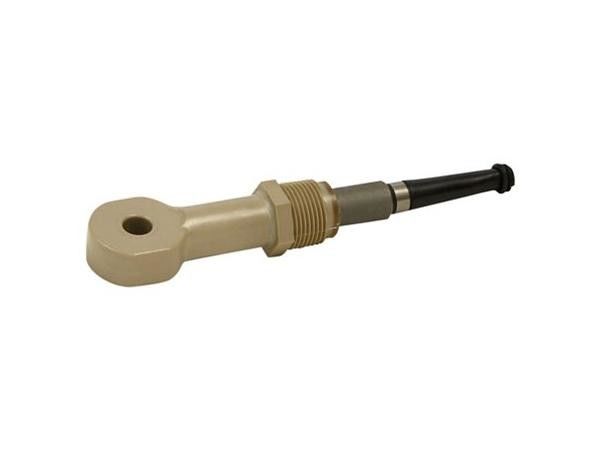

Rosemount Toroidal Conductivity Sensor 228-04-21-54-61
A Versatile Conductivity Sensor for Solving Diverse Application Challenges
Rosemount 228 toroidal conductivity sensors reliably measure conductivity in highly conductive electrolyte solutions up to 2 S/cm (2,000,000 µS/cm). These sensors work in dirty and corrosive applications where metal electrode sensors would otherwise fail. A robust sensor design makes the Rosemount 228 ideal for measuring concentrations of acid, base, and salt solutions.
High Performance and Reliability
- Meet challenging application requirements with a selection of chemical resistant body options including PEEK and Tefzel
- High vibration tolerance with reinforced internal metal frame design
- High temperature option for process temperatures up to 392 °F (200 °C) and suitable for use under high pressure up to 295 psig (2135 kPa [abs])
Accessories
|
Part number |
Description |
|
23550-00 |
Remote junction box |
|
23294-00 |
Unshielded interconnecting cable |
|
23294-05 |
Shielded interconnecting cable |
|
23311-00 |
Mechanical valve insertion assembly |
|
23311-0 |
Manual valve insertion assembly |
|
2001990 |
Mounting adapter,2 in.MNPT,CPVC |
|
9550179 |
O-ring,EP rubber,for 2001990 |
|
23242-02 |
Mounting adapter,1-1/2 in.MNPT insertion,1 in.FNPT conduit connection,PEEK |
|
33081-00-995Q7091A |
Adapter insert,Tefzel,for 23242-02 |
|
33081-00 |
Adapter insert,PEEK,for 23242-02 |
|
23242-03 |
Mounting adapter,1-1/2 in.MNPT insertion,3/4 in.FNPT conduit connection,PEEK |
|
33080-01-995Q7182 |
Adapter insert,Tefzel,for 23242-03 |
|
23277-01 |
Mounting adapter,Foxboro,PEEK,5/811 UNC |
|
23277-01-995Q7182 |
Mounting adapter,Foxboro,Tefzel,5/811 UNC |
|
33075-00 |
Viton gasket for option 20 |
|
33075-03 |
Kalrez gasket for option 20 |
|
9200276 |
Extension cable,unprepped |
|
9340065 |
1-1/2 in.FNPT full port ball valve for use with retraction assemblies |
