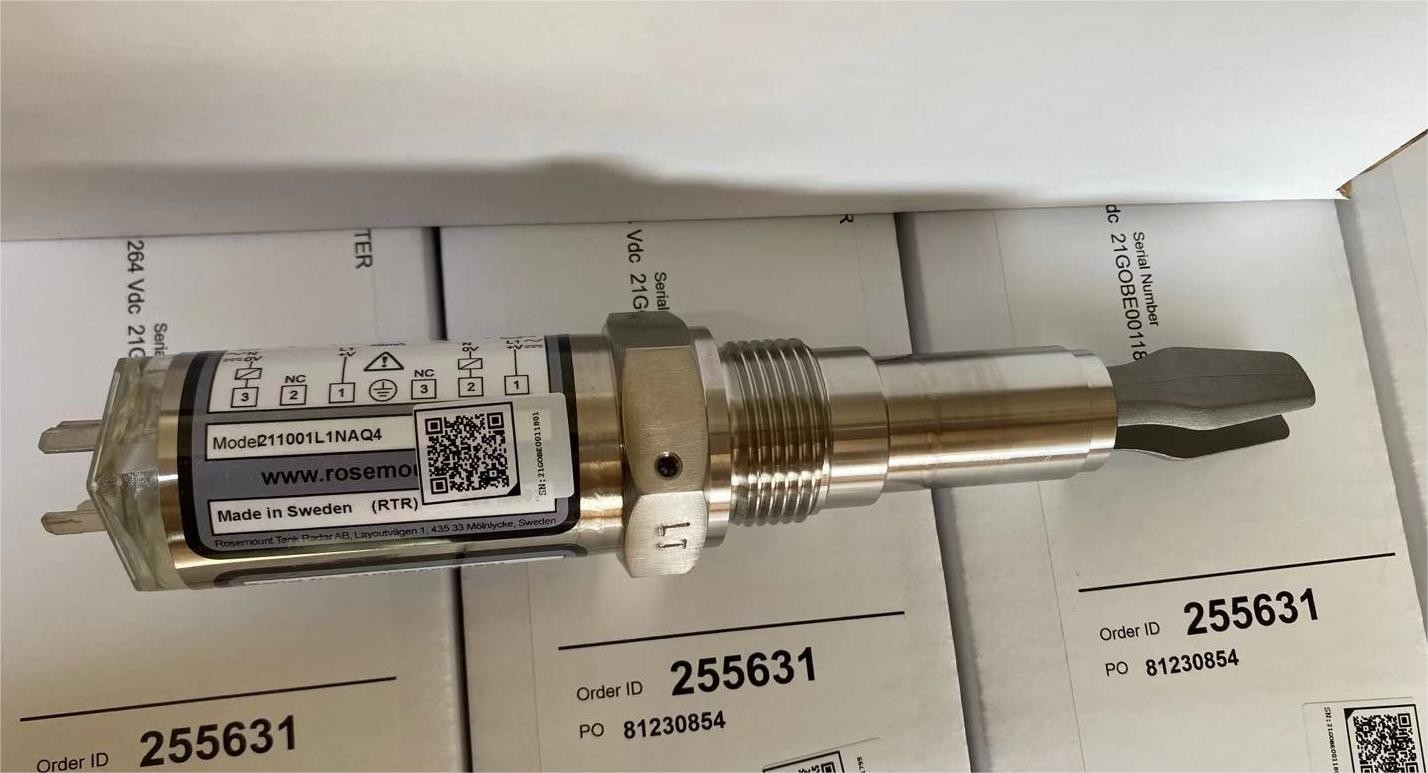

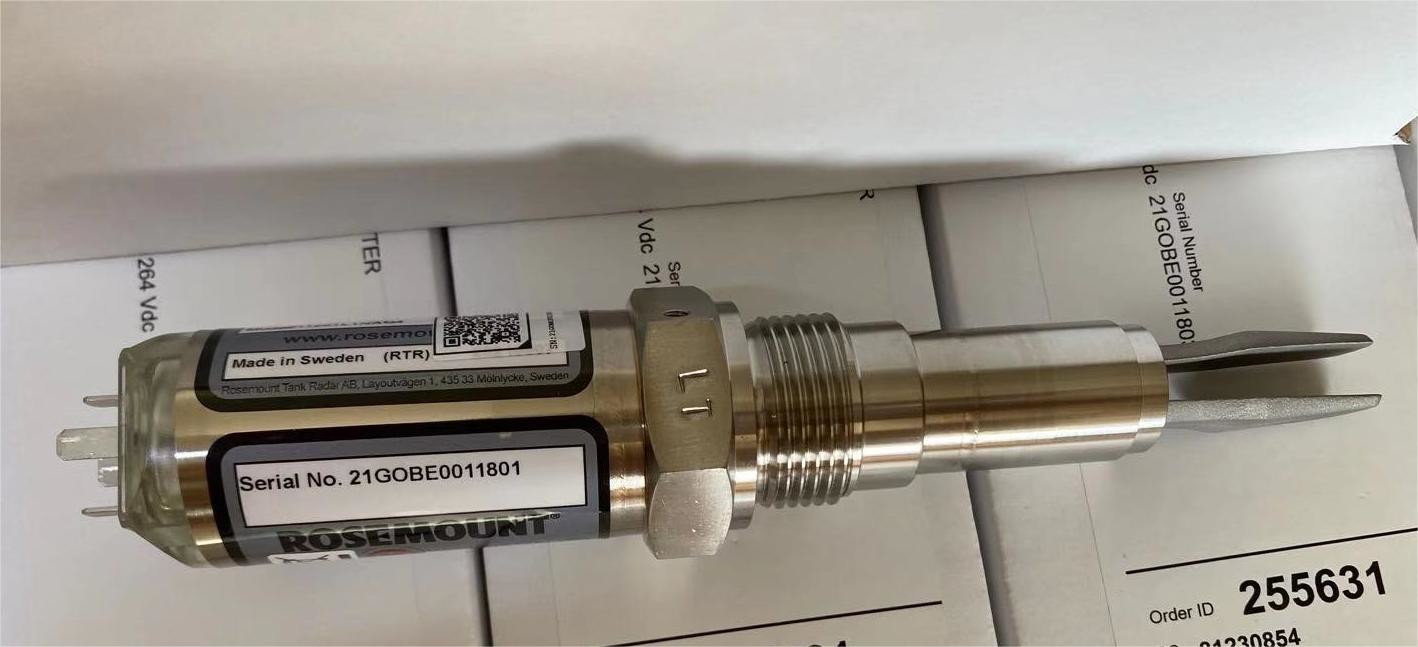

Rosemount 2110 Emerson Rosemount Transmitter Level Switch 2110 211001L1NAQ4
Product Details:
| Place of Origin: | Sweden |
| Brand Name: | ROSEMOUNT |
| Certification: | CE |
| Model Number: | 211001L1NAQ4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T, |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Mode: | Compact Vibrating Fork Liquid Level Switch | Electronic Type: | Direct Load Switching With Plug Connection (2 Wire) 21 To 264 Vac 50/60Hz, 21 To 264 Vdc |
|---|---|---|---|
| Process Connection Size / Type: | 1-in. BSPP (G) Semi-extended 4.6 In. (116 Mm) | Surface Finish: | Standard Surface Finish |
| Product Certificates: | No Hazardous Locations Certifications (safe Area Use Only) | Calibration Data Certificate: | Certificate Of Compliance To EHEDG |
| Highlight: | Emerson Rosemount Transmitter 2110,BSPP Emerson Rosemount Transmitter,Rosemount 2110 |
||
Product Description

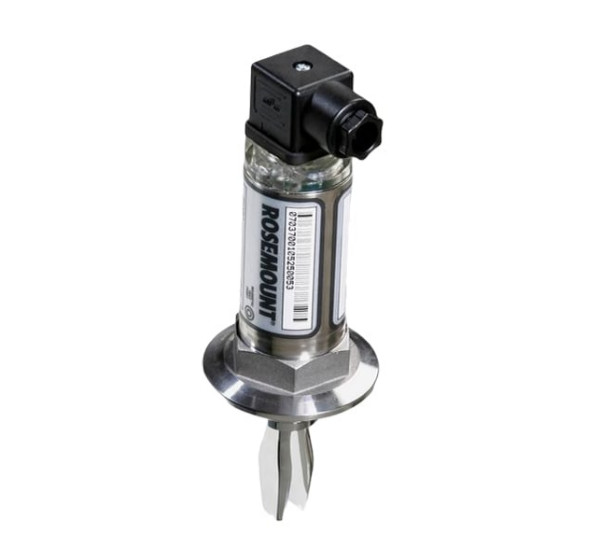

Rosemount 2110 Level Switch 2110 211001L1NAQ4
Measurement principle
The Rosemount 2110 is designed using the principle of a tuning fork. A piezo-electric crystal oscillates the forks at their natural frequency. Changes to this frequency are continuously monitored. The frequency of the vibrating fork sensor changes depending on the medium in which it is immersed. The denser the liquid, the lower the frequency. When used as a low level alarm, the liquid in the tank or pipe drains down past the fork, causing a change of natural frequency that is detected by the electronics and switches the output state. When the Rosemount 2110 is used as a high level alarm, the liquid rises in the tank or pipe, making contact with the fork which then causes the output state to switch.
Spare Parts and Accessories
| Part number | Description |
| 02100-1000-0001 | Seal for 1-in.BSPP(G1A).Material:Non-asbestos BS7531 grade X carbon fiber with rubber binder |
| 02100-1010-0001 | Adaptor boss 1-in.BSPPto 1'/2-in.(38mm)Tri Clamp.Material:316 SST fitting.FPM/FKM O-ring |
| 02100-1020-0001(1) | 2-in.(51 mm)Tri Clamp kit(vessel fitting,clamp ring,and seal).Material:316 SST,NBR Nitrile |
| 02100-1030-0001 | Telescopic test magnet |
