EPDM Endress Hauser Ultrasonic Measurement Time-Of-Flight Prosonic FMU30-AAHEABGHF

EPDM Endress Hauser Ultrasonic Measurement Time-Of-Flight Prosonic FMU30-AAHEABGHF
EPDM Endress Hauser Ultrasonic Measurement Time-Of-Flight Prosonic FMU30-AAHEABGHF EPDM Endress Hauser Ultrasonic Measurement Time-Of-Flight Prosonic FMU30-AAHEABGHF EPDM Endress Hauser Ultrasonic Measurement Time-Of-Flight Prosonic FMU30-AAHEABGHF
Basic Information
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: ATEX, CSA C/US, IEC Ex, NEPSI
Model Number: FMU30-AAHEABGHF
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now
Characteristic / Application: Compact Ultrasonic Transmitter Supply / Communication: 2-wire
Accuracy: +/- 3 Mm Or +/- 0,2 % Of Set Measuring Range Ambient Temperature: -20 °C ... 60 °C (-4 °F ... 140 °F)
Process Temperature: -20 °C ... 60 °C (- 4°F ... 140 °F) Process Pressure / Max. Overpressure Limit: 0.7 Bar ... 3 Bar Abs (10 Psi ... 44 Psi)
Main Wetted Parts: PP/EPDM Process Connection: G / NPT 1 1/2" G / NPT 2"
Highlight:

EPDM endress ultrasonic level transmitter

,

NEPSI endress ultrasonic level transmitter

,

FMU30-AAHEABGHF

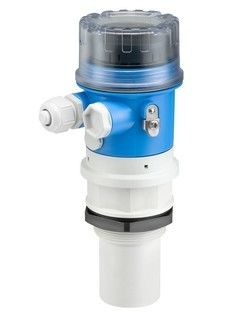

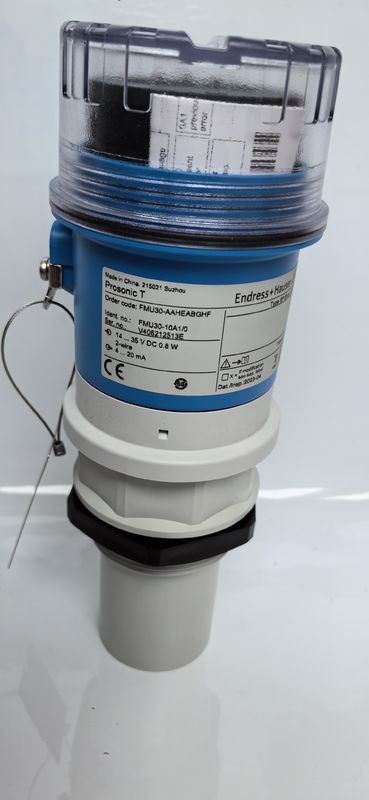

Endress Hauser Ultrasonic measurement Time-of-Flight Prosonic FMU30-AAHEABGHF



Field of application

The range of applications extends from monitoring levels in sewage treatment plants and process water tanks to applications for loading, storage and buffer tanks. FMU30 ultrasonic sensor offers proven software algorithms and all warning and alarm messages are shown on the four-line plain text display and guarantee fast remedy of problems. The envelope curve can also be shown on the display. As the analysis results are displayed directly on-site, this ensures quick and accurate error diagnostics.

Two-wire instrument for continuous non-contact level and flow measurement.

Process connection: Thread

Temperature: -20 to +60°C (-4 to +140°F)

Pressure: +0.7 to +3bar (+10 to +44psi)

Maximum measuring distance:
Sensor 1½" for liquids 5m (16ft) and for bulk solids 2m (6.6ft),
Sensor 2" for liquids 8m (26ft)and for bulk solids 3.5m (11ft)

Blocking distance:
Sensor 1½" 0.25m (0.8ft),
Sensor 2" 0.35m (1.15ft)

International explosion protection certificate
