Endress Hauser 1-channel Transmitter Liquiline CM14 4-wire Transmitter
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Endress+Hauser |
| Certification: | CE |
| Model Number: | CM14-1020/0（CM14-AAM） |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-14weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Approval: | Non-hazardous Area | Sensor Input:: | Digital,Memosens PH, ORP (glass) |
|---|---|---|---|
| Output: | 2 X 0/4 To 20 MA | Communication: | 2 X Relay |
| Gross Weight:: | Gross Weight: | Country Of Origin: | DE |
| Highlight: | 1-channel Transmitter Liquiline CM14,Endress Hauser Liquiline CM14,Endress Hauser 4-wire Transmitter |
||
Product Description

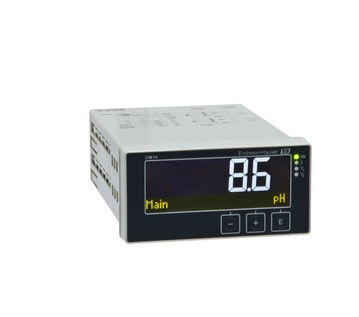

Endress Hauser 1-channel transmitter Liquiline CM14
Liquiline CM14 is a basic transmitter that offers all that you need to run a standard measuring point. It fits in the common cabinet cut-outs and is easy to commission thanks to Memosens digital technology. The Memosens hot plug and play concept allows you to quickly install and configure your digital pH/ORP, conductivity or dissolved oxygen sensors. Liquiline CM14 is compact, easy-to-operate, and cost efficient.
-
Food & Beverages
-
Power & Energy
-
Water & Wastewater
Liquiline CM14 features the following protocols and interfaces:
-
0/4...20 mA
-
-
Measuring principle
Potentiometric
Application
Water, waste water
Characteristic
4-wire transmitter with a two-line display
Measuring principle
pH/ORP transmitter for digital Memosens sensors.
Design
panel housing (48x96 mm)
Material
panel housing, polycarbonate
front membrane polyesterDimension
48 mm x 96 mm x 152 mm(built in depth)
3.74x3.74x5.98 inch (built in depth)Temperature sensor
Display and current output
Ex certification
no
Ingress protection
Front IP65 , NEMA 4X, Body IP20
Input
One-channel-transmitter
Output / communication
2 x 0/4 to 20 mA
2 x RelayAdditional certifications
CSA C/US general purpose
UL listed -
