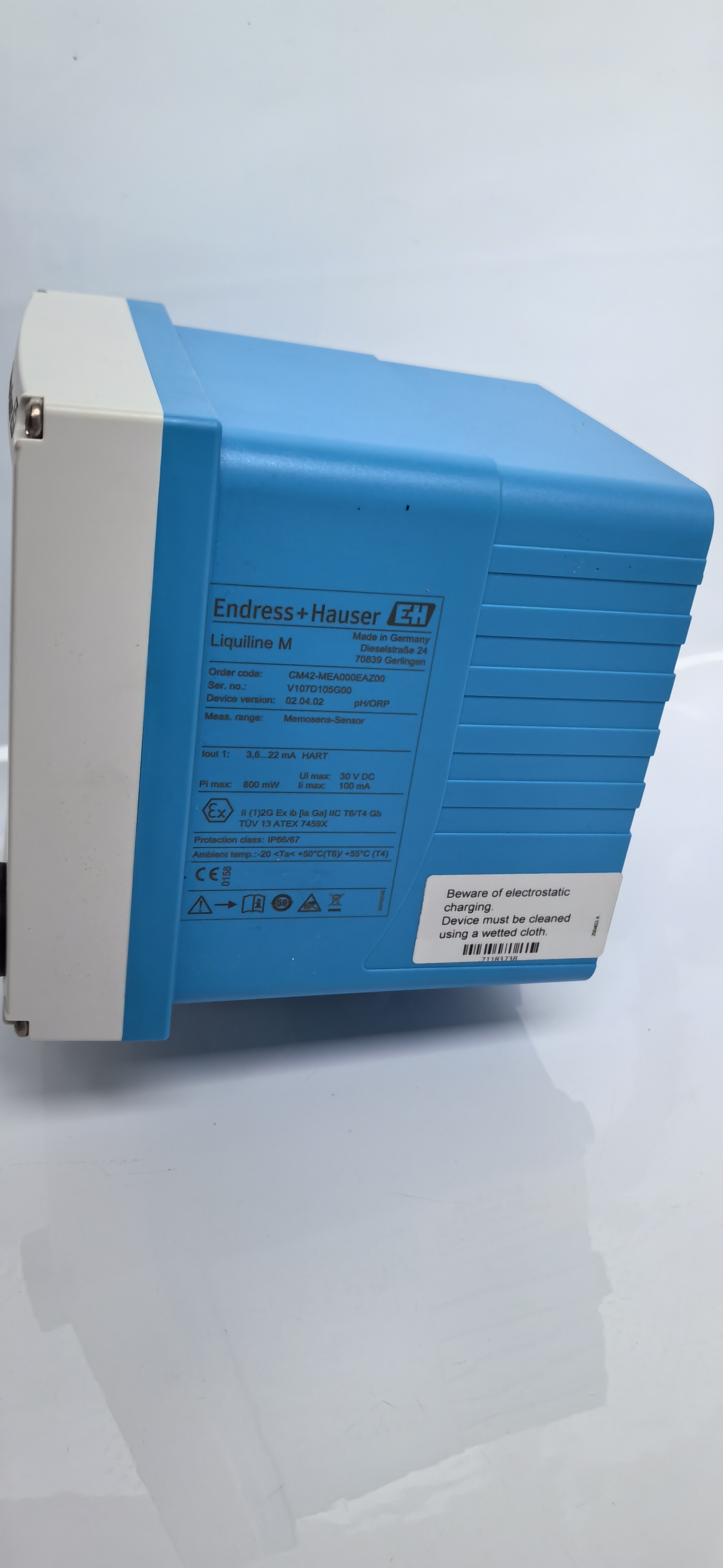

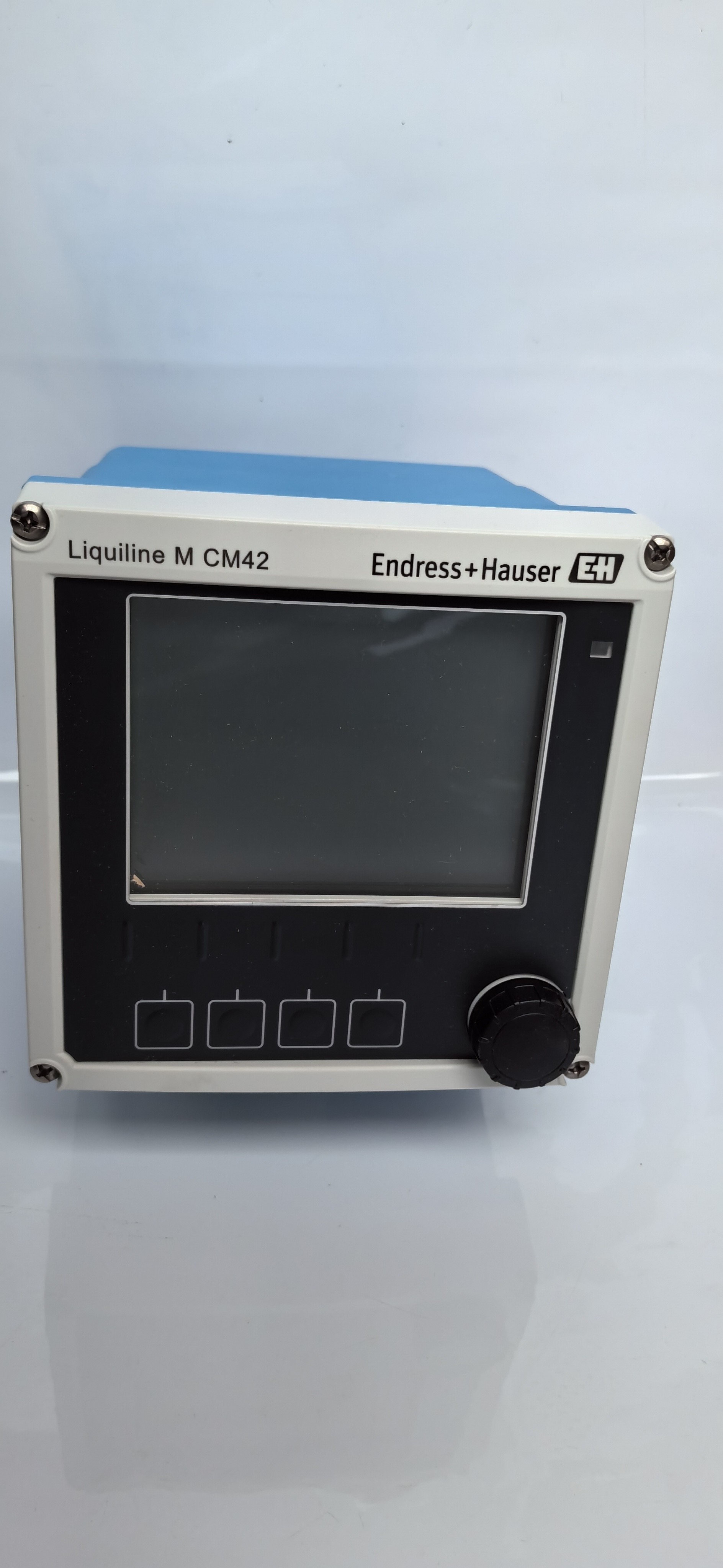

Endress Hauser 1-channel Transmitter Liquiline M CM42 Modular Two-wire Transmitter

  • Endress Hauser 1-channel Transmitter Liquiline M CM42 Modular Two-wire Transmitter
  • Endress Hauser 1-channel Transmitter Liquiline M CM42 Modular Two-wire Transmitter
  • Endress Hauser 1-channel Transmitter Liquiline M CM42 Modular Two-wire Transmitter
Place of Origin Germany
Brand Name Endress+Hauser
Certification CE
Model Number CM42-MEA000EAZ00
Minimum Order Quantity 1pc
Price negotiable
Packaging Details standard carton packing
Delivery Time 12-14weeks
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Sensor Input Digital, Memosens PH, (glass) ORP Approval ATEX II (1)2G Ex Ib (ia Ga) IIC T4/T6 G
Certificate Not Selected Output 1x4-20mA, HART
Housing Plastics (PC) Cable Entry Gland M20x1,5
Highlight

Endress Hauser Liquiline M CM42

,

1-channel Transmitter Liquiline M CM42

,

Modular Two-wire Transmitter
Leave a Message
Product Description

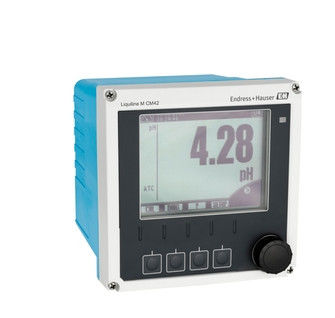

Endress+Hauser 1-channel transmitter Liquiline M CM42



Liquiline M CM42 is the robust transmitter for pH/ORP, conductivity or oxygen measurement in all process applications. It is the best choice for demanding environments be it hygienic applications, hazardous areas or functional safety areas. Liquiline’s intuitive operating concept simplifies commissioning, handling, and maintenance saving you time every day. Easy switching of parameters and seamless system integration give you the flexibility to adapt it exactly to your measuring task.

The Liquiline CM42 transmitter is suitable for all process applications, for example in these industries and their utilities:

  • Chemicals

  • Food & Beverages

  • Life Sciences

  • Power & Energy

  • Oil & Gas

  • Primaries & Metal



Liquiline CM42 features the following protocols and interfaces:

  • 0/4...20 mA

  • HART

  • PROFIBUS PA

  • FOUNDATION Fieldbus

With its international explosion protection approvals, such as IECEx, ATEX, FM, CSA, TIIS and NEPSI, the transmitter is suitable for hazardous area use.



Measuring principle


ISFET

Application


Chemical processes, pharmaceuticals industry, foodstuff technology, applications in hazardous areas

Characteristic

Liquiline M CM42 is a modular two-wire transmitter for all areas of process engineering

Measuring principle

Potentiometric pH measurement

Design

Depending on the ordered version, Liquiline M CM42 has one or two analog current outputs or it can be connected to field busses as per FOUNDATION Fieldbus, PROFIBUS PA and HART protocol
Liquiline is developed acc. to the international safety standard IEC 61508

Material

Plastic or stainless steel housing with EPDM sealings

Dimension

Plastic housing:
144 x 144 x 148 mm
5.67 x 5.67 x 5.83 inch
Stainless Steel:
174 x 174 x 134 mm
6.85 x 6.85 x 5.28 inch

Temperature sensor

Applicable:
Pt100, Pt1000, NTC 30K

Ex certification

: ATEX, IECEx, FM, CSA, NEPSI, EAC, UKEx, JPN Ex

Ingress protection


IP66/67, NEMA 4X

Input

One channel transmitter for Memosens and analog (pH, ORP, conductivity)

Output / communication

1/2 x 4 to 20 mA, HART, Profibus PA, FF
Additional second output possible, also later



Endress Hauser 1-channel Transmitter Liquiline M CM42 Modular Two-wire Transmitter 0
