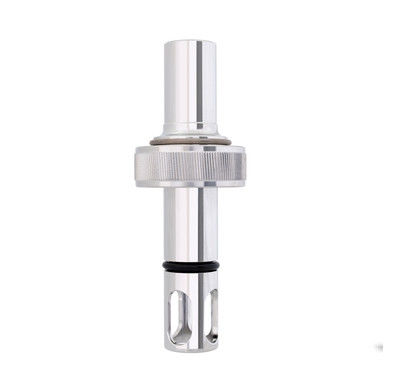

Endress Hauser Process Assembly Unifit CPA842 Accessory Enclosed 1.4435/316L

Endress Hauser Process Assembly Unifit CPA842 Accessory Enclosed 1.4435/316L
Endress Hauser Process Assembly Unifit CPA842 Accessory Enclosed 1.4435/316L Endress Hauser Process Assembly Unifit CPA842 Accessory Enclosed 1.4435/316L Endress Hauser Process Assembly Unifit CPA842 Accessory Enclosed 1.4435/316L
Basic Information
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: CE
Model Number: CPA842-1040/0(CPA842-AA1E1AAA1+PK)
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-14weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now
Approval: Non-hazardous Area Material; Surface Wetted Parts: 1.4435/316L; Ra=0,76
Seals: EPDM-FDA (USP Class VI) Process Connection: DN25 Standard
Device Model: 1 Accessory Enclosed: Weld-in Socket G1 1/4 DN25 Standard Oblique, 1.4435/316L
Highlight:

Endress Hauser Process Assembly Unifit

,

Process Assembly Unifit CPA842

Endress+HauserProcess assembly Unifit CPA842



The Unifit CPA842 process assembly meets highest requirements concerning inline cleaning and sterilization. It allows the easy installation of pH/ORP, oxygen, conductivity or cell growth sensors into tanks and pipelines of hygienic and sterile applications. Unifit is designed according to EHEDG, 3-A, ASME BPE, FDA and USP 88 class VI.

Unifit CPA842 is intended for permanent installation in tanks and pipework in:

  • Food and beverage

  • Life sciences

  • Chemicals

It is suitable for use with pressures of up to 16 bar (stainless steel).



Measuring principle

Potentiometric

Application

Food & Beverage, Life Science, Process

Installation

Fixed installation assembly

Characteristic

Open and closed tank, piping

Design

Hygienic assembly with corresponding process connections
12 mm electrodes
Optional with protection guard
Optional with leakage control

Material

Holder: stainless steel 1.4404
Seals: EPDM, FKM, FFKM, all seals are FDA conform, USP Class VI

Dimension

Immersion depth: 29.5 to 86.5 mm (1.16 to 3.4 inch)

Process temperature

-15 to 140 °C (5 to 280 °F)

Process pressure

16 bar up to 140 °C (232 psi up to 284 °F)

Connection

DN25 standard, DN25 B.Braun, Clamp 1.5" (short and long), Clamp 1.5'' angled at 15°, Clamp 2", Varivent flange N, dairy fitting DN50
Endress Hauser Process Assembly Unifit CPA842 Accessory Enclosed 1.4435/316L 0
