Endress Hauser FTL31 Liquiphant Point Level Detection with G1/2 Thread ISO228 Connection

Basic Information

Place of Origin:	Germany
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	FTL31-AA4U3AAWBJ( FTL31-1530/0)

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	12-14weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now

Approval:

Non-hazardous Area

Power Supply; Output:

10-30VDC; 3-wire PNP

Electrical Connection:

Valve Plug ISO4400 M16, IP65 NEMA Type 4X Encl.

Sensor Design:

Max. Process Temperature 150oC/302oF

Sensor Type:

Compact Version 316L Ra<3.2um/126uin

Process Connection:

Thread ISO228 G1/2, 316L

Highlight:

Point Level Detection FTL31 Liquiphant

Endress Hauser FTL31 Liquiphant

Endress+Hauser Point level detection Liquiphant FTL31

Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill protection or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting.
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
-Reliable switching independent of media properties
Easy:
- No calibration
- Plug & play
- IO-Link connectivity

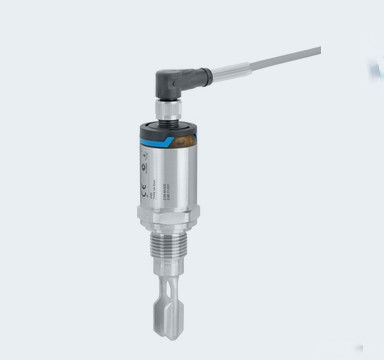

Point level switch in compact design with stainless steel housing.

Process connections: Threads
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +40bar (-14.5 to 580psi)
Surface roughness: 3.2µm
Overfill protection and leakage detection WHG, marine approvals, final inspection report

Measuring principle	Vibration Liquids
Characteristic / Application	Level switch for liquids and is used in tanks, vessels and pipes.
Supply / Communication	20 ... 253V AC/DC, 2-wire 10 ... 30V DC-PNP 3-wire
Ambient temperature	-40 °C ... 70 °C (-40 °F ... 158 °F)
Process temperature	-40 °C ... 150 °C (-40 °F ... 302 °F)
Process pressure / max. overpressure limit	Vacuum ... 40 bar (Vacuum ... 580 psi)
Min. density of medium	Min. density of medium
Main wetted parts	316L
Process connection	Threads: G1/2, G3/4, G1, MNPT1/2, MNPT3/4, MNPT1, R1/2, R3/4, R1
Communication	AC/DC, DC-PNP
Certificates / Approvals	CSA C/US, EAC
Safety approvals	Overfill protection WHG Leakage
Design approvals	EN 10204-3.1
Marine approval	ABS/ LR/ BV/ DNV
Options	Adjustment switching delay Cleaned from oil+grease, PWIS free

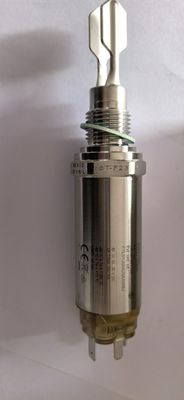

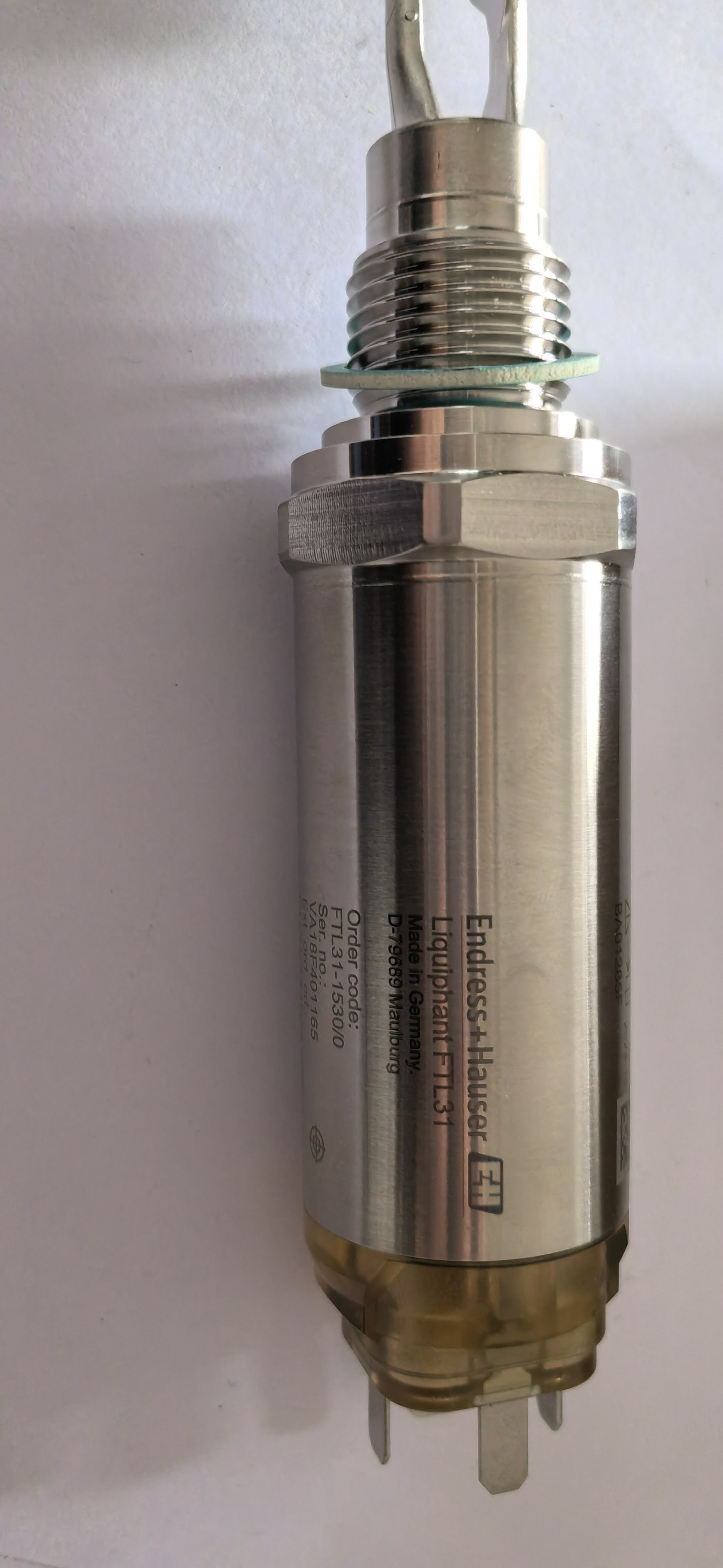

Endress Hauser FTL31 Liquiphant Point Level Detection with G1/2 Thread ISO228 Connection 0

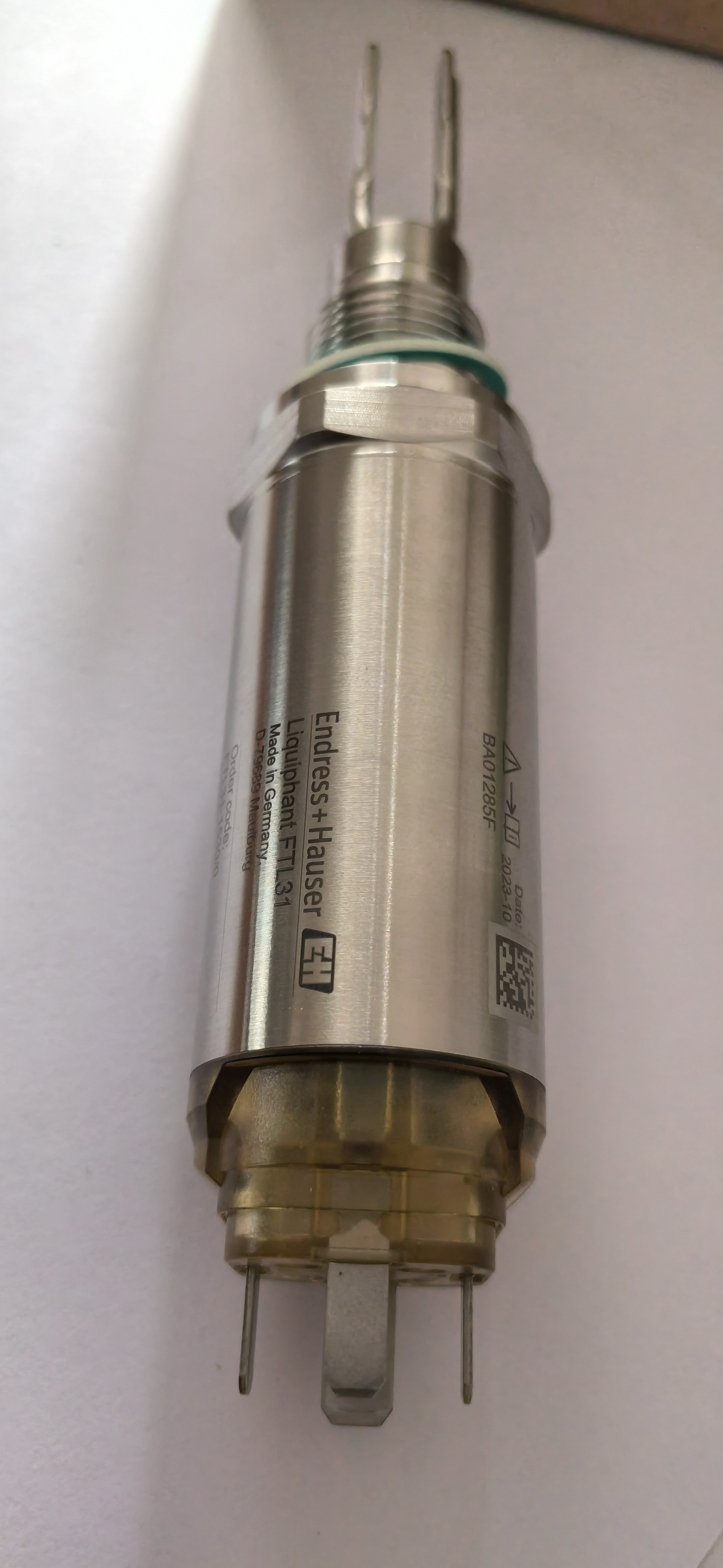

Endress Hauser FTL31 Liquiphant Point Level Detection with G1/2 Thread ISO228 Connection 1
