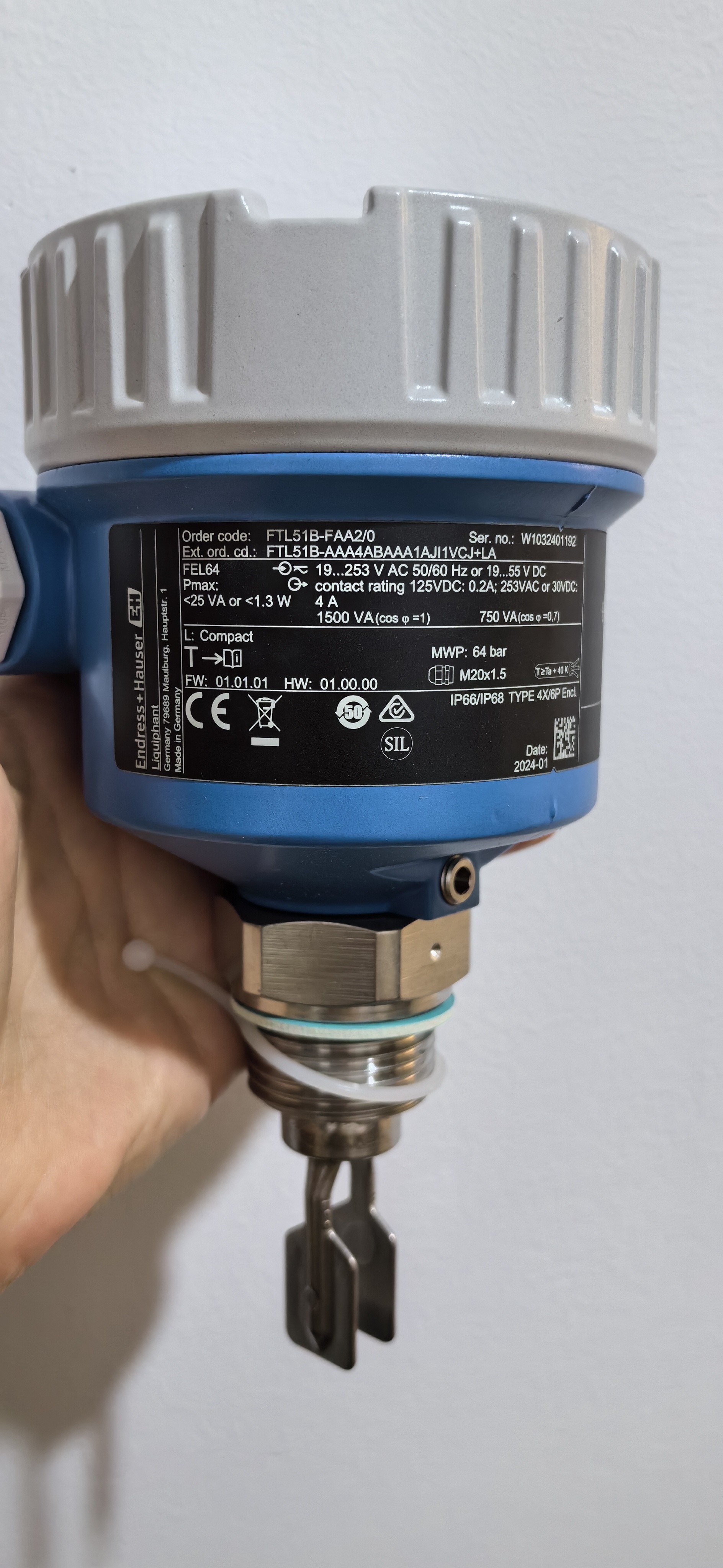

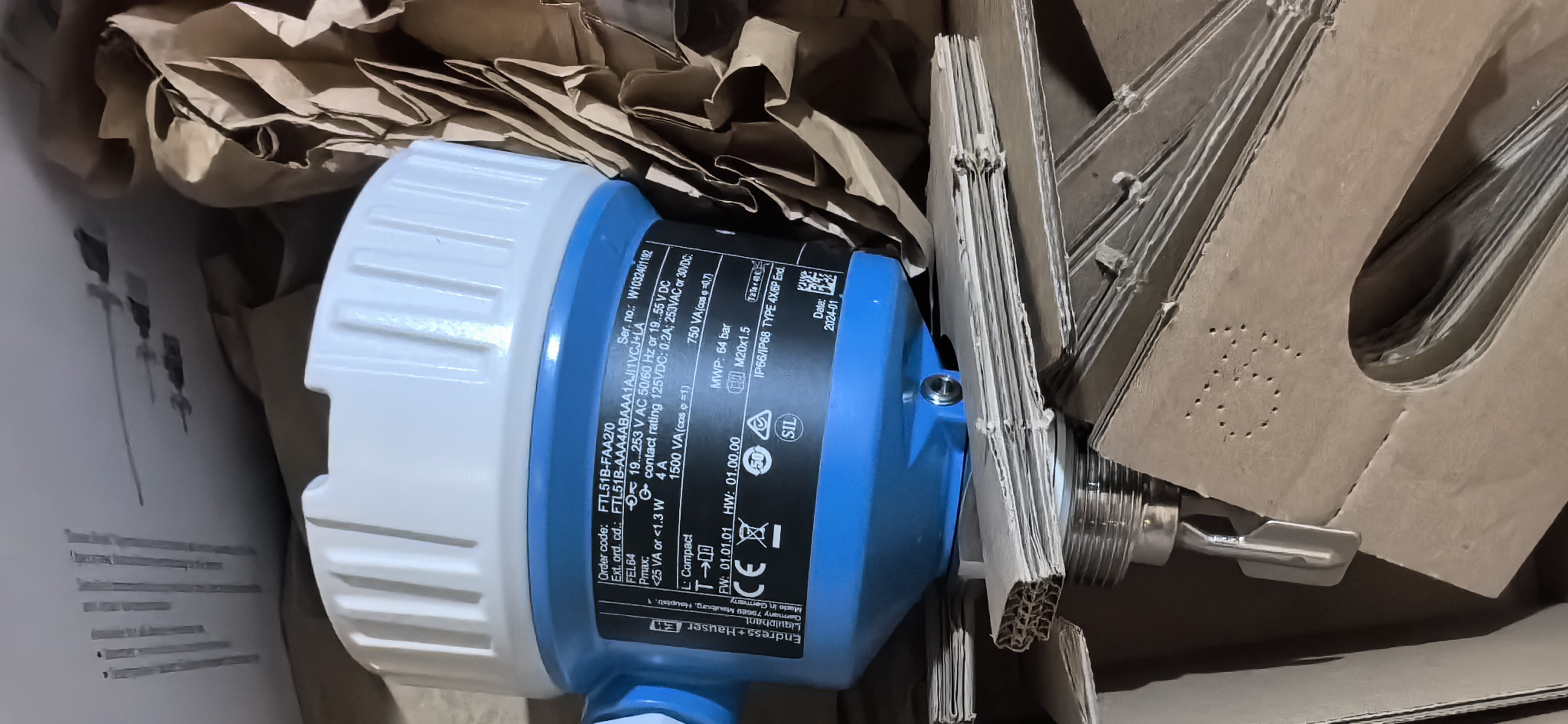

Endress Hauser Liquiphant FTL51B Plastic Electrical Connection Single Compartment Alu Housing
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Endress+Hauser |
| Certification: | CE |
| Model Number: | FTL51B-AAA4ABAAA1AJI1VCJ+LA(FTL51B-FAA2/0) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-14weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Approval: | Non-hazardous Area | Output: | FEL64, Relay DPDT 19-253VAC/19-55VDC Contact 253V/6A + Test Button |
|---|---|---|---|
| Display; Operation: | W/o; Switch | Housing; Material: | Single Compartment; Alu, Coated |
| Electrical Connection: | Gland M20, Plastic, IP66/68 NEMA Type 4X/6P | Application: | Process Max 150oC/302oF, Max 64bar |
| Highlight: | Single Compartment Liquiphant FTL51B,Alu Housing Liquiphant FTL51B,Endress Hauser Liquiphant FTL51B |
||
Product Description

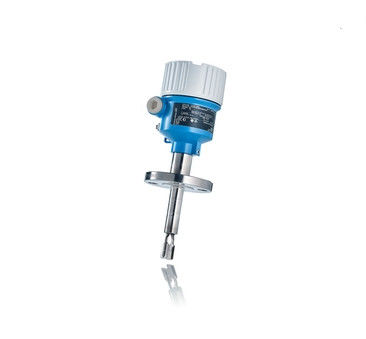

Endress+Hauser Liquiphant FTL51B
The Liquiphant FTL51B is specialized for the process industry and developed to be used directly in SIL2 and SIL3 applications. You conduct periodic proof tests according to SIL or WHG mobile with an intuitive wizard. At the end you receive an automated documentation. Liquiphant measures reliably and is not affected by changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up. The device is easy to use, has a digital connection and gives real-time data at hand.
Point level switch with extension tube for all liquids
-
Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
-
Temperature: -50 to +150°C (-58 to +302°F)
-
Pressure: -1 to +100bar (-14.5 to +1450psi)
-
Sensor material: 316L, Alloy
-
International explosion protection certificates, overfill protection WHG, SIL, marine approvals
|
Measuring principle |
Vibration Liquids |
|
Characteristic / Application |
Compact vibronic device with an optional pipe extension up to 6 m (19.7 ft); |
|
Specialities |
Heartbeat Technology, |
|
Supply / Communication |
19...253V AC / 2-wire, |
|
Ambient temperature |
-60 °C...+70 °C |
|
Process temperature |
-50 °C...+150 °C |
|
Process pressure / max. overpressure limit |
Vacuum...100 bar |
|
Min. density of medium |
0.5 g/cm³ |
|
Main wetted parts |
|
|
Process connection |
Threads: |
|
Process connection hygienic |
Tri-Clamp ISO2852 |
|
Sensor length |
Up to 6 m (19.7 ft) |
|
Communication |
2-wire direct load |
|
Certificates / Approvals |
ATEX, IEC Ex, CSA, NEPSI, KC, JPN Ex, INMETRO, UK Ex |
|
Certificates / Approvals |
Overfill protection WHG |
|
Design approvals |
EN 10204-3.1 |
|
Marine approval |
ABS/ LR/ BV/ DNV |
|
Options |
Heavy duty stainless steel housing |
|
Components |
|
