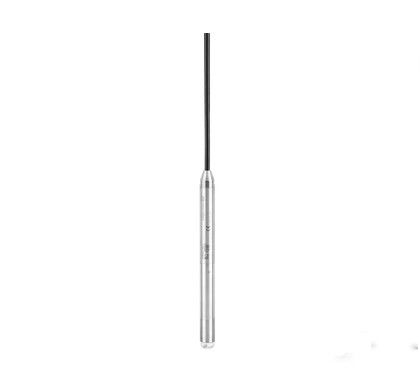

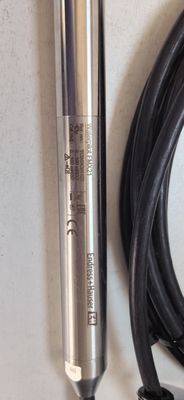

Endress Hauser Waterpilot FMX21 Compact Probe With Ceramic Cell For Hydrostatic Level Measurement

  • Endress Hauser Waterpilot FMX21 Compact Probe With Ceramic Cell For Hydrostatic Level Measurement
  • Endress Hauser Waterpilot FMX21 Compact Probe With Ceramic Cell For Hydrostatic Level Measurement
  • Endress Hauser Waterpilot FMX21 Compact Probe With Ceramic Cell For Hydrostatic Level Measurement
  • Endress Hauser Waterpilot FMX21 Compact Probe With Ceramic Cell For Hydrostatic Level Measurement
Place of Origin Germany
Brand Name Endress+Hauser
Certification CE

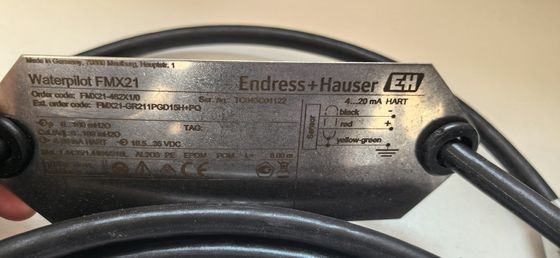

Model Number FMX21-GR211PGD15H+PQ(FMX21-462X1/0)
Minimum Order Quantity 1pc
Price negotiable
Packaging Details standard carton packing
Delivery Time 12-14weeks
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Approval Non-hazardous Area + EAC Marking Output 4-20mA HART
Probe Tube 316L, D=22mm/0.87in Sensor Range 10bar/1MPa/150psi Gauge, 100mH2O/333ftH2O/4000inH2O
Reference Accuracy Standard Calibration; Unit Sensor Range; Mm/mH2O
Highlight

Endress Hauser Waterpilot FMX21

,

Compact Probe Waterpilot FMX21

,

Hydrostatic Level Measurement Waterpilot FMX21
Leave a Message
Product Description

Endress+Hauser Level measurement Waterpilot FMX21





The Waterpilot FMX21 transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and environmental applications for hydrostatic level measurement. With HART output, the measuring ranges can be freely adjusted and a density-compensated level measurement can be activated. It is certified for drinking water and offers integrated temperature measurement. Versions for applications in wastewaters and sludges or usage in salt water are also available.

Three different versions for drinking water, wastewater and sewage, saltwater.

  • Process connections: Suspension clamp, cable gland

  • Temperature: –10 to +70°C (14 to 158°F)

  • Measuring range: 0 to 20bar / 200m H20 (0 to 300psi / 600ft H2O)

  • Accuracy: ±0.2%, "Platinum" ±0.1%

  • International explosion protection certificates, marine approvals, drinking water approval

Measuring principle

Hydrostatic pressure

Characteristic

Compact probe with ceramic cell for hydrostatic level measurement,
Diameter = 22 mm: General applications, fresh water
Diameter = 42 mm: Waste water applications
Diameter = 29 mm: Salt water applications

Supply voltage

10.5 ...35V DC

Reference Accuracy

0.2%
0.1% (optional)

Long term stability

0.1% of URL/year

Process temperature

-10°C...70°C
(14°F...158°F)
Diameter 29 mm (1.14"): 0°C...50°C
(32°F...122°F)

Ambient temperature


-10°C...70°C
(14°F...158°F)
Diameter 29 mm (1.14"):
0°C...50°C
(32°F...122°F)

Measuring cell

100mbar...20bar
(1.5psi...300psi)

Process connection

Suspension clamp
Cable mounting screws

Communication

4...20 mA
4...20 mA HART

Certificates / Approvals

ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex

Marine approvals

GL/ ABS/ BV/ DNV/ LR

Drinking water approvals

NSF/ KTW/ ACS
  •



Endress Hauser Waterpilot FMX21 Compact Probe With Ceramic Cell For Hydrostatic Level Measurement 0

Endress Hauser Waterpilot FMX21 Compact Probe With Ceramic Cell For Hydrostatic Level Measurement 1
