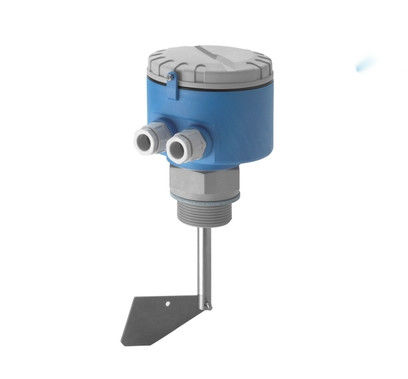

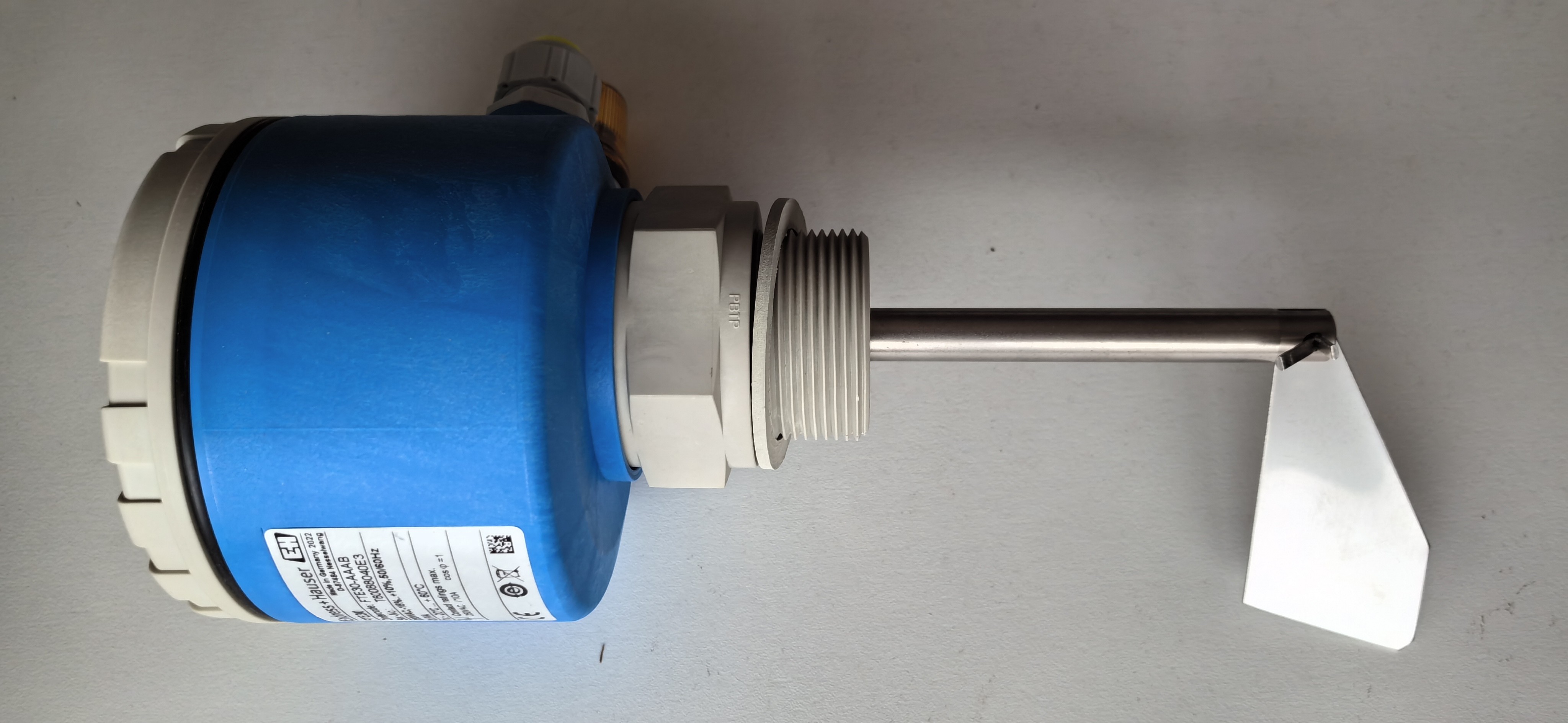

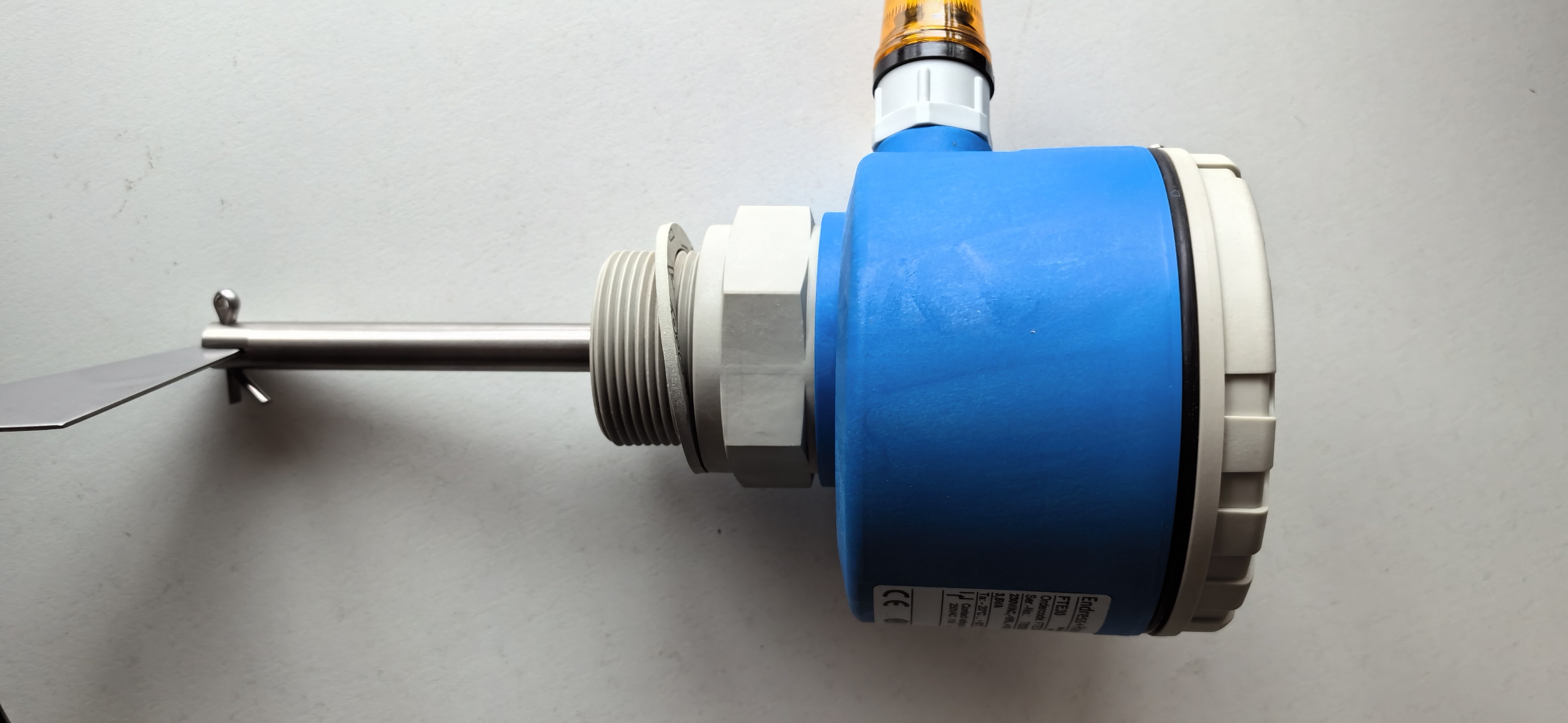

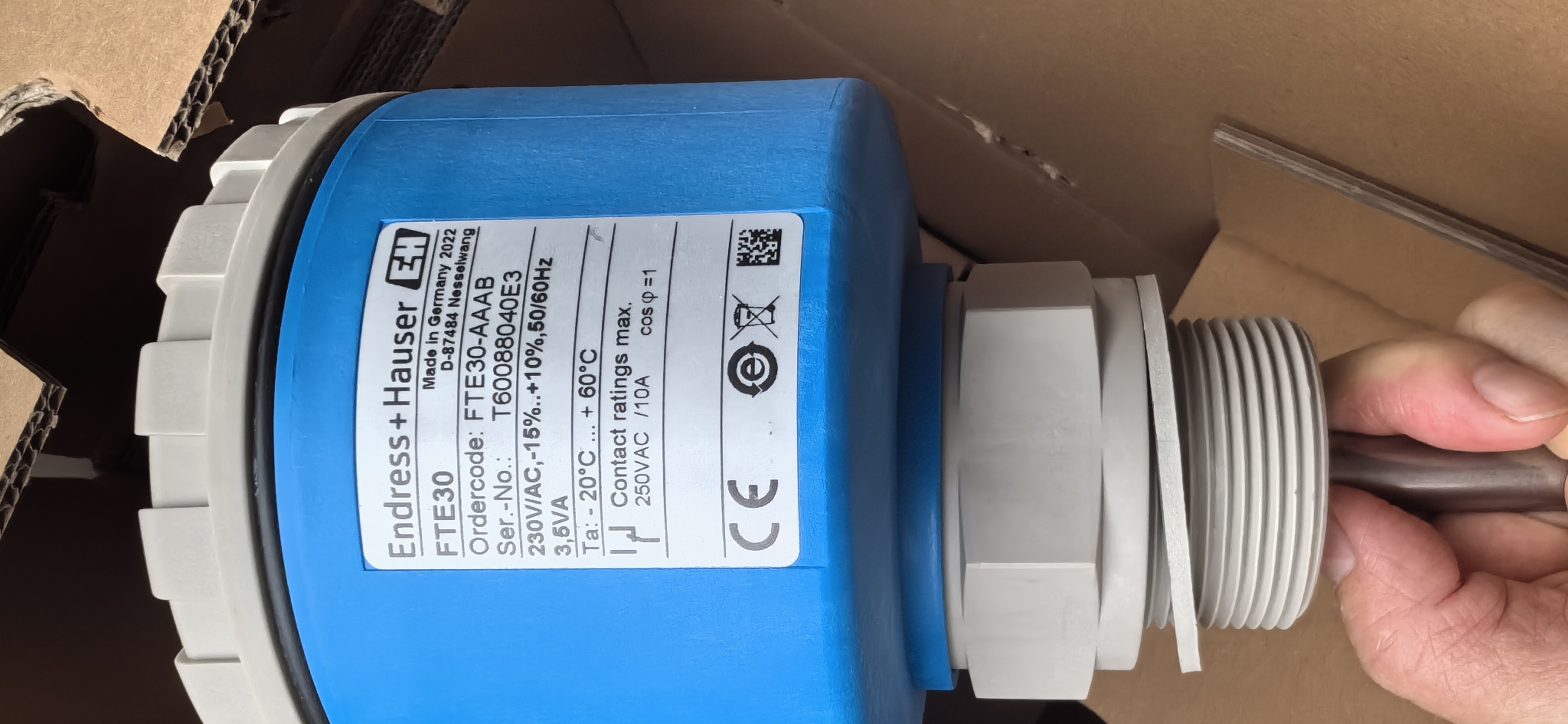

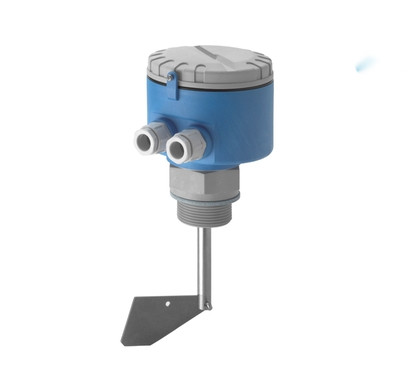

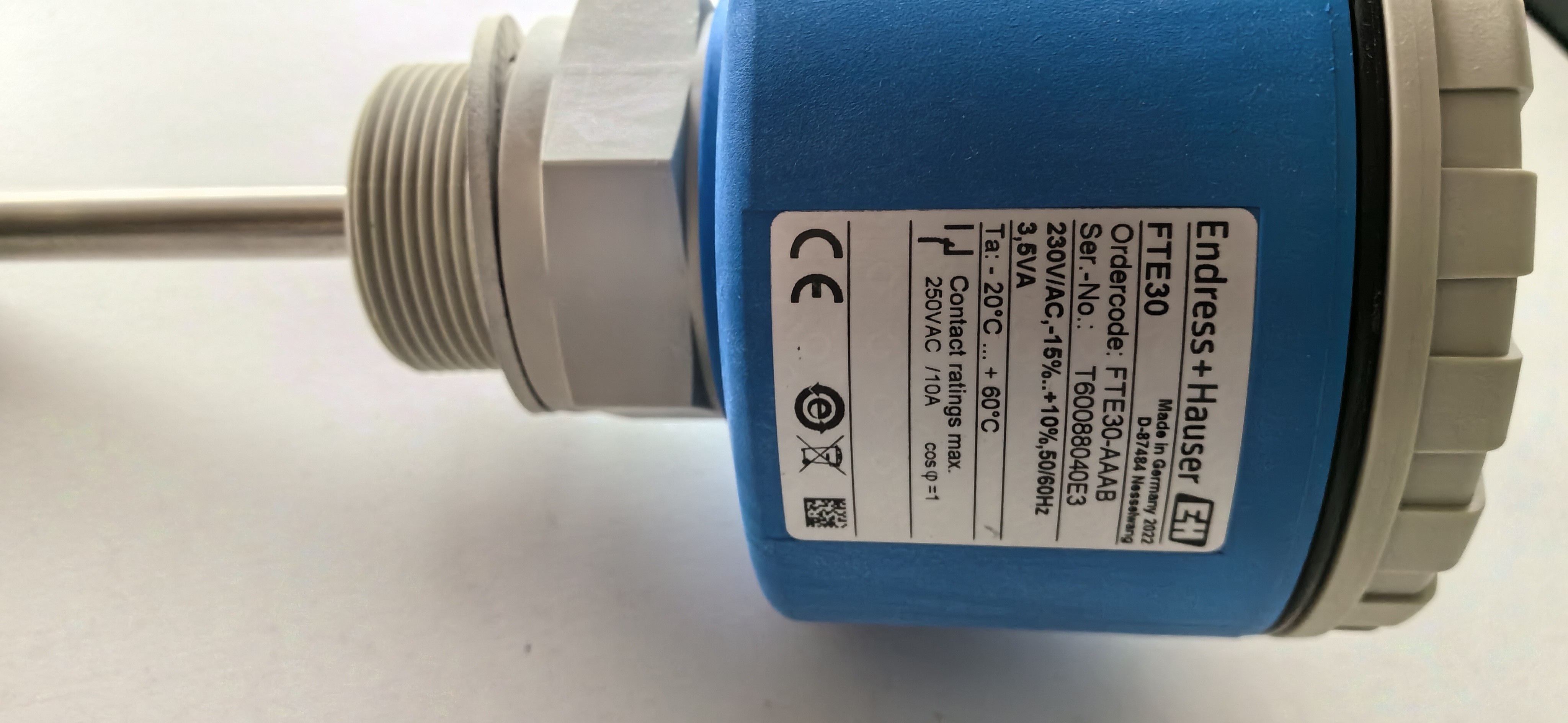

Endress Hauser FTE30 Point Level Switch with Power Supply and Relay Output

Endress Hauser FTE30 Point Level Switch with Power Supply and Relay Output
Endress Hauser FTE30 Point Level Switch with Power Supply and Relay Output
Endress Hauser FTE30 Point Level Switch with Power Supply and Relay Output Endress Hauser FTE30 Point Level Switch with Power Supply and Relay Output Endress Hauser FTE30 Point Level Switch with Power Supply and Relay Output Endress Hauser FTE30 Point Level Switch with Power Supply and Relay Output
Basic Information
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: CE
Model Number: FTE30-AAAB
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-14weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now
Power Supply; Output: 230VAC, Relay 250VAC, 100mA -10A Process Connection: G1-1/2 Male Thread, PBT
Version: Shaft 100mm Paddle; Additional Option: 303; Signal Lamp; Non-hazardous
Gross Weight: 0.950 Kilogram Country Of Origin: DE
Highlight:

Relay Output Point Level Switch

,

Point Level Switch with Power Supply

,

Endress Hauser FTE30 Point Level Switch

Endress+Hauser Point level switch FTE30



The economical Soliswitch FTE30 is a paddle switch for point level detection in bulk materials. Its robust polymer housing and compact design makes it an ideal sensor for full, empty and demand alarm in applications with bulk solids. The optimized materials make the unit outstandingly robust and therefore suitable for use in dust explosive areas.

Process connections: G 1½", PBT; G 1½", 1.4305; Reinforced shaft G 1½", 1.4305
Sensor length: Different standard lengths between 100 mm (4") and 600 mm (24"), additional rope length of 2,000 mm (80") (can be shortened)Temperature: -20 to +80 °C (-4 to +170 °F)
Pressure: 0.5 to 1.8 bar (7 to 25 psi)

Measuring principle

Paddle

Characteristic / Application

universally applicable as a full, empty and demand alarm on silos containing solids

Specialities

Hinged paddle

Supply / Communication

230 VAC 50/60 Hz
115 VAC 50/60 Hz
48 VAC 50/60 Hz
24 VAC 50/60 Hz
20 bis 28 VDC

Ambient temperature

-20 °C ... 60 °C (-4 °F ... 140 °F)

Process temperature

-20 °C ... 80 °C (-4 °F ... 170 °F)

Process pressure / max. overpressure limit

0.5 bar to 1.5 bar (7 psi to 22 psi)

Min. density of medium

>= 100 g/l

Main wetted parts

Shaft: 1.4305
Paddle: 1.4301

Process connection

G 1 1/2", PBT
G 1 1/2", 1.4305
Reinforced shaft G 1 1/2", 1.4305

Sensor length

100 mm (4")
200 mm (8")
300 mm (12")
400 mm (16")
500 mm (20")
600 mm (24")
Rope length of approx 2000 mm (80"), can be shortened

Communication

Micro switch with changeover contact max. 10 A/250 VAC

Certificates / Approvals

No approvals available

Options

Relay

Application limits

max. grain size 50 mm (2")
