Endress Hauser Process Transmitter RMA42 Integrated Loop Power Supply Two-wire Sensors
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Endress+Hauser |
| Certification: | CE |

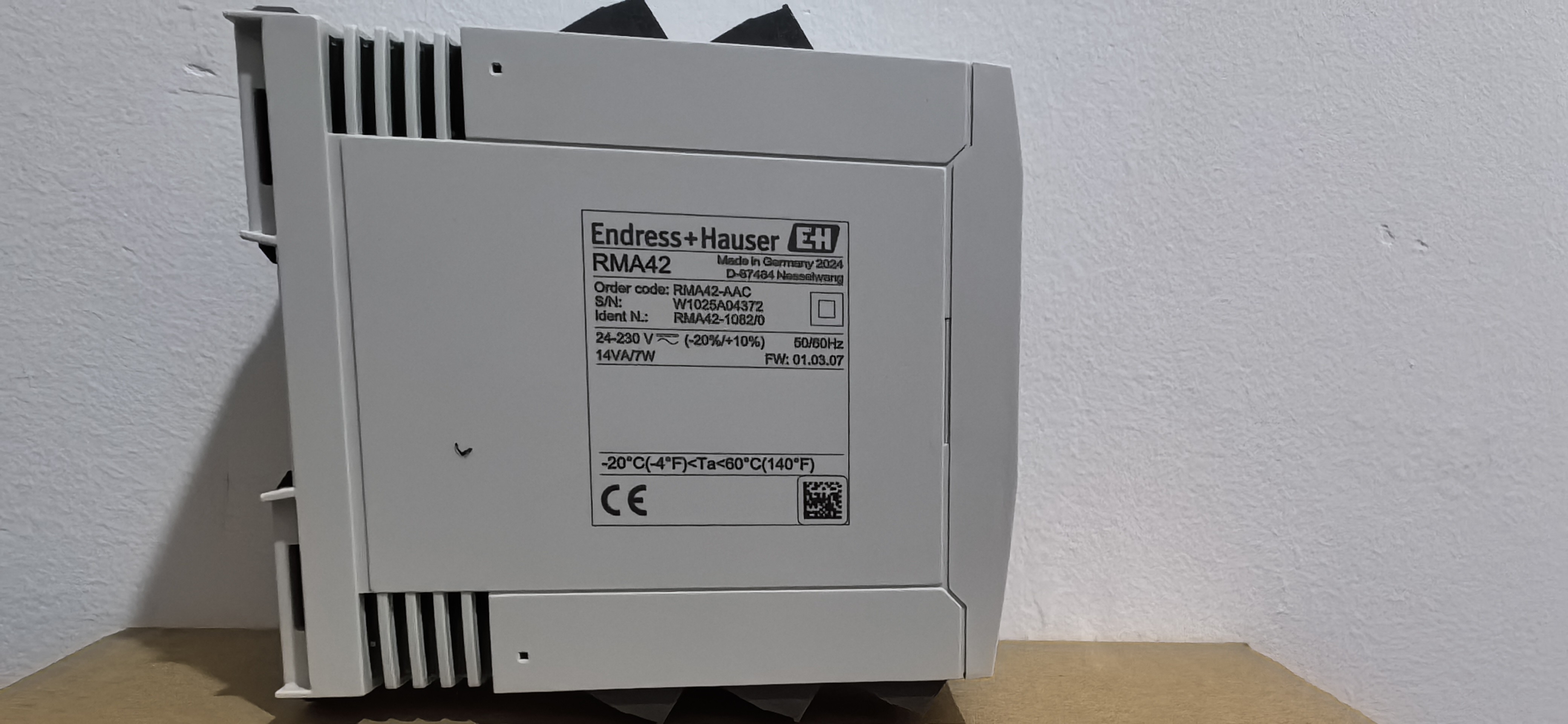

| Model Number: | RMA42-1082/0(RMA42-AAC) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-14weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Approval: | Non-hazardous Area | Input; Output: | 1x Universal; 1x Analog + 2 Relay |
|---|---|---|---|
| Display: | LCD 7 Segment Multicolour Bargraph TAG Unit Colour Change In Case Of Failure | Power Supply: | Wide Range Power Supply 24 To 230 V AC/DC (-20 % / +10 %) 50/60 Hz |
| Gross Weight: | 0.320 Kilogram | Country Of Origin: | DE |
| Highlight: | RMA42 Process Transmitter,Endress Hauser Process Transmitter |
||
Product Description

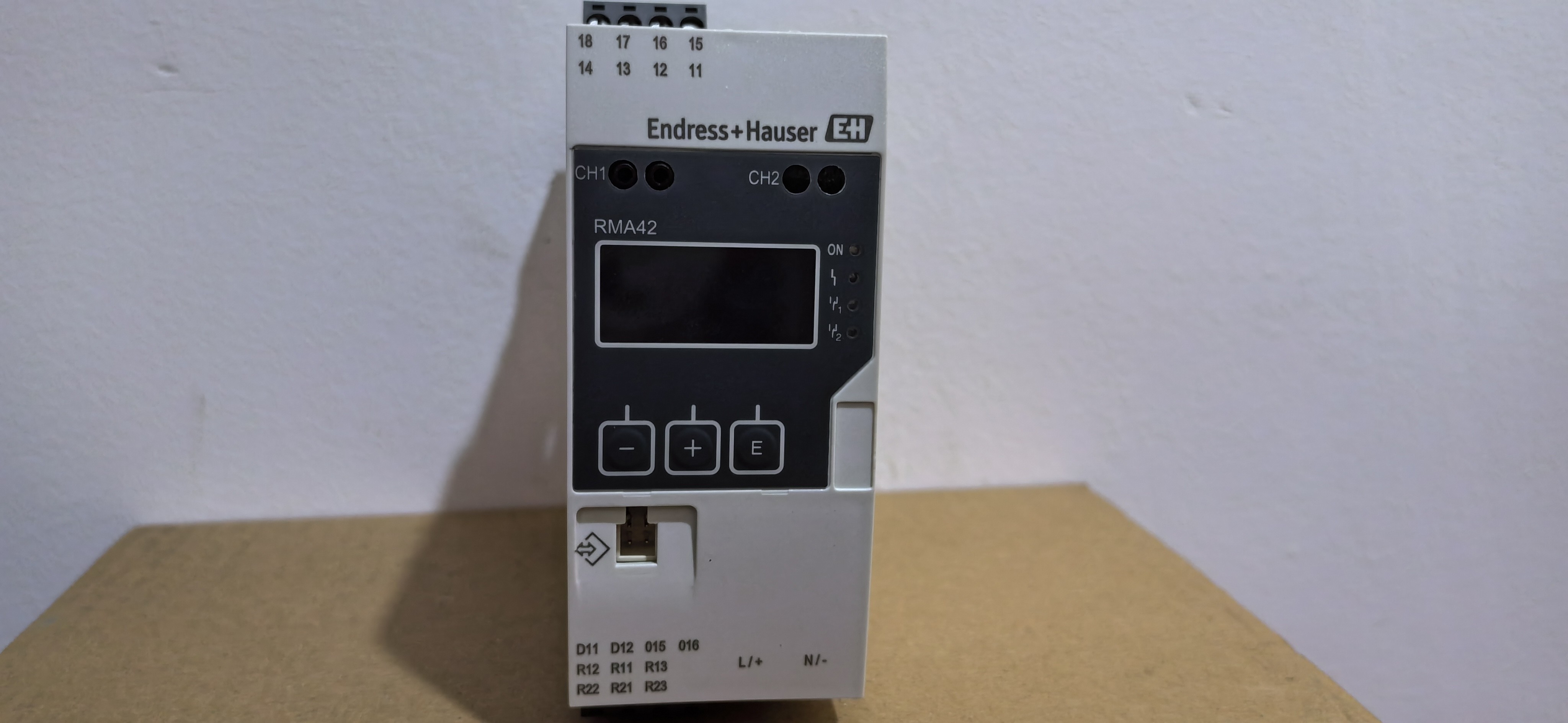

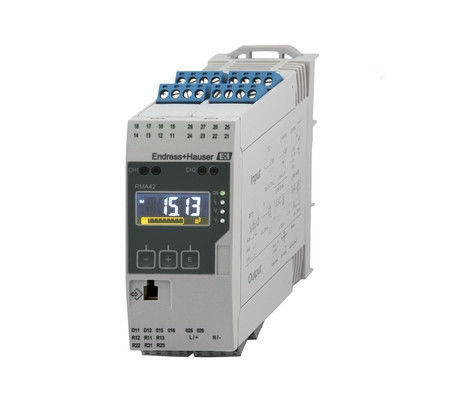

Endress+Hauser Process Transmitter + Control Unit RMA42
Analog measured values are indicated, evaluated and calculated by the process transmitter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.

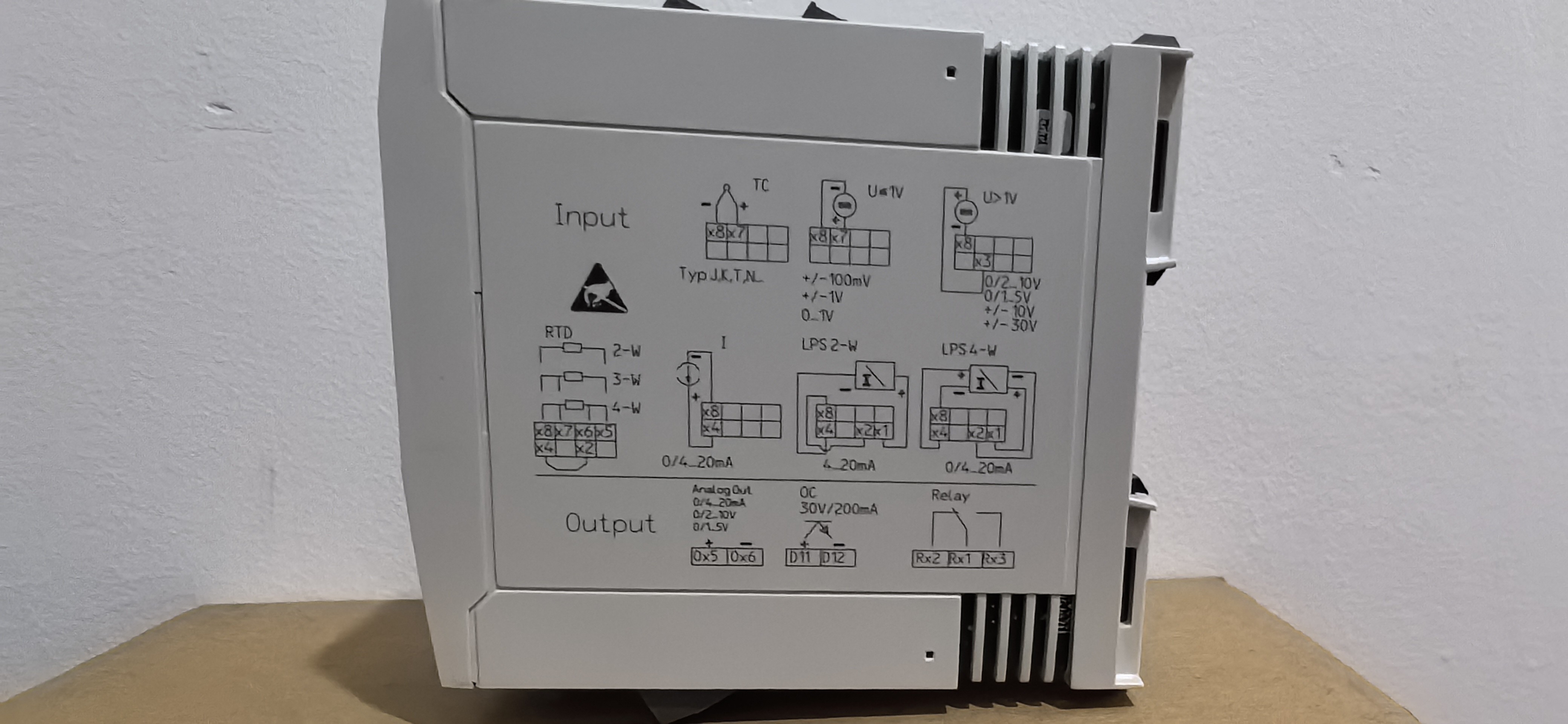

The RMA42 process transmitter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.
Plant and apparatus engineering
Control rooms and cabinets
Process control, recording and supervision
Signal adjustment and conversion
Overfill protection (WHG)
|
Measuring principle |
Process transmitter |
|
Measuring principle |
Process transmitter |
|
Function |
Universal process and temperature transmitter with control unit |
|
Loop power supply |
24 V intrinsically safe loop power supply |
|
Power Supply |
Wide range power supply 24 to 230 V AC/DC (-20 % / +10 %) 50/60 Hz |
|
Input |
2 x universal (current, voltage, R, RTD, TC, resistance) |
|
Output |
2 x Analog (current, voltage) |
|
Software functions |
Internal software for calculations, linearization, limit monitoring |
|
Certificates |
ATEX |
|
SIL |
2 |
|
Display |
LCD |
|
Interface |
Not defined |
|
Dimensions (WxHxD) |
45 x 115 x 118 mm (1.77" x 4.53" x 4.65") |
