Endress+Hauser Ultrasonic Measurement Time-of-Flight Prosonic FDU95
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Endress+Hauser |
| Certification: | CE |
| Model Number: | FDU95-R1G6A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-14weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Temperature: | -40...+80oC/176oF | Blocking Distance: | 2.3ft |
|---|---|---|---|
| Blocking: | Membrane 316L, PE Coated | Process Connection: | Thread ISO228 G1, UP |
| Cable Length: | 30m/98ft | Additional Option: | Basic Version |
| Net Weight: | 6.800 Kilogram | Country Of Dispatch: | DE |
| Highlight: | Time-of-Flight Ultrasonic measurement,Endress Hauser Ultrasonic measurement,Prosonic FDU95 Ultrasonic measurement |
||
Product Description

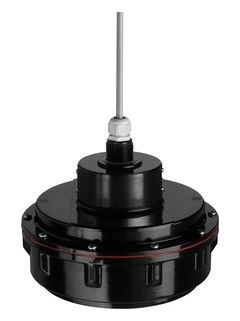

Endress+Hauser Ultrasonic measurement Time-of-Flight Prosonic FDU95
The FDU95 ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of powdery to coarse bulk materials. The measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Suited for explosion hazardous areas. Maximum measuring range in solids 45m (148ft).
Process connection: Thread
Temperature: -40 to +80°C or +150°C (-40 to +176°F or +302°F)
Pressure: +0.7 to +1.5bar (+10 to +22psi)
Maximum measuring range: Solids 45m (148ft)
Blocking distance: 0.7m / 80°C (2.3ft), 0.9m / 150°C (2.9ft)
International explosion protection certificates
|
Measuring principle |
Ultrasonic |
|
Characteristic / Application |
|
|
Supply / Communication |
|
|
Accuracy |
|
|
Ambient temperature |
-40 °C...80 °C |
|
Process temperature |
-40 °C...80 °C |
|
Process pressure / max. overpressure limit |
0.7 bar...1.5 bar abs |
|
Main wetted parts |
UP (unsaturated polyester) |
|
Process connection |
G / NPT 1" |
|
Blocking distance |
0.7 m / 80 °C, |
|
Max. measurement distance |
45 m (148 ft) |
|
Communication |
Transmitter: |
|
Certificates / Approvals |
ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, EAC Ex |
|
Options |
Second 4...20 mA output |
