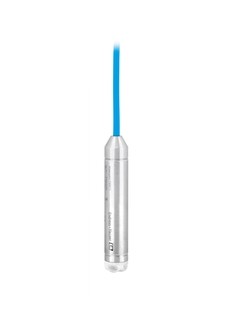

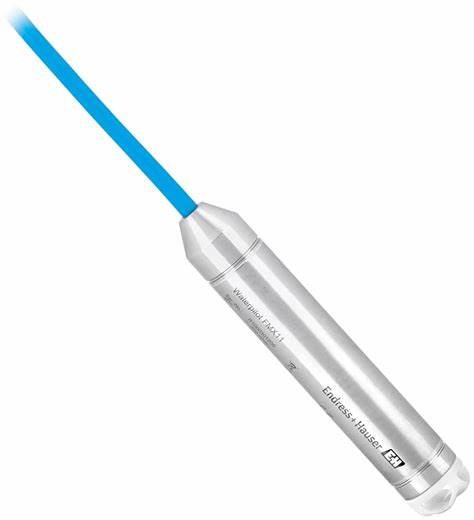

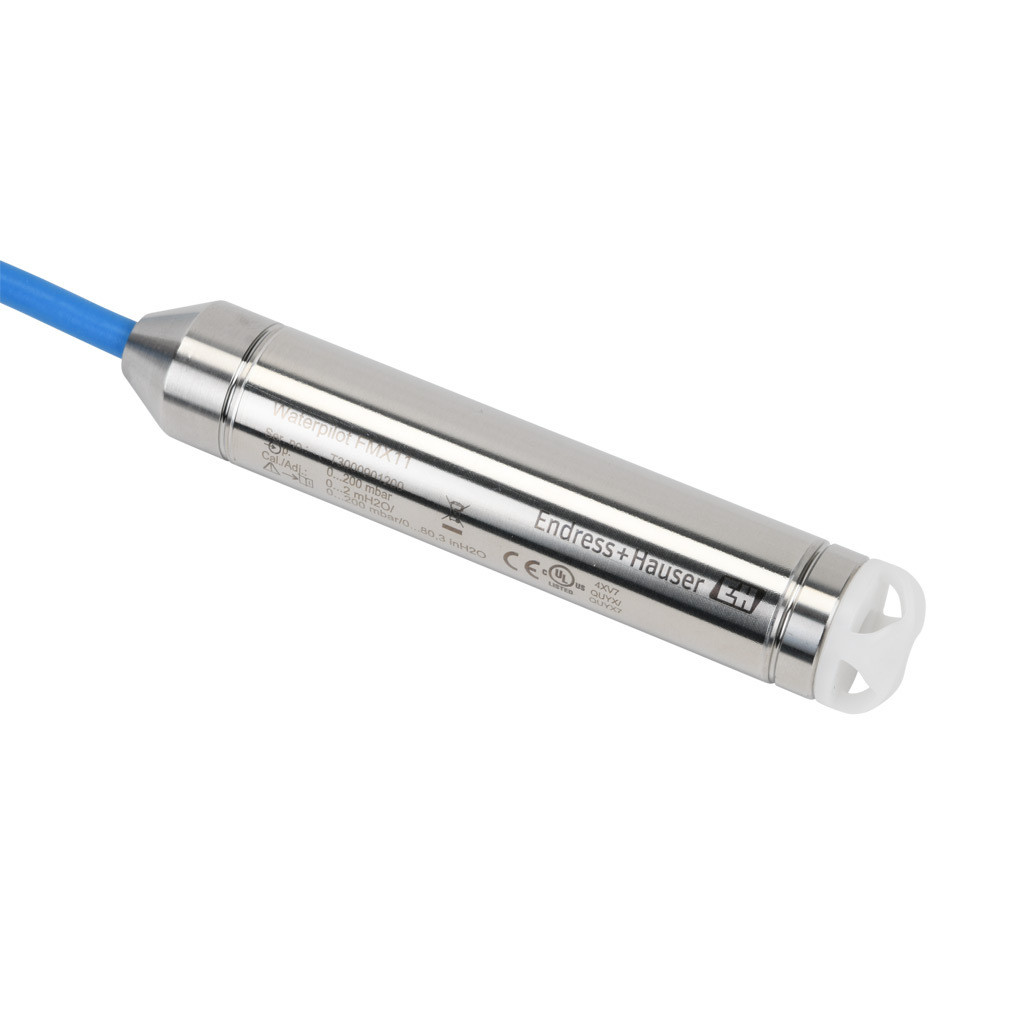

Endress Hauser Hydrostatic Level Measurement Waterpilot FMX11 with 10m Cable

Endress Hauser Hydrostatic Level Measurement Waterpilot FMX11 with 10m Cable
Endress Hauser Hydrostatic Level Measurement Waterpilot FMX11 with 10m Cable Endress Hauser Hydrostatic Level Measurement Waterpilot FMX11 with 10m Cable Endress Hauser Hydrostatic Level Measurement Waterpilot FMX11 with 10m Cable
Basic Information
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: CE
Model Number: FMX21-3A36/0
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-14weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now
Approval: Non-hazardous Area + C/US Ordinary Location, UK Marking Output: 4-20mA
Sensor Range: 600mbar/60kPa/9psi Gauge, 6mH2O/20ftH2O/240inH2O Calibration; Unit: Sensor Range; Mbar/bar, Mm/mH2O (base Value), InH2O/ftH2O
Probe Connection: 10m Cable Net Weight: 0.481 Kilogram
Highlight:

Endress Hauser FMX11 Waterpilot

,

Hydrostatic Level Measurement Waterpilot

Endress+Hauser Hydrostatic Level measurement Waterpilot FMX11



The Waterpilot FMX11 transmitter is typically used in environmental applications for hydrostatic level measurement. It is certified for drinking water applications and can be used in wells, storage tanks, water towers, dams, gauging stations, lakes and rivers.



  • Temperature: –10 to +70°C (14 to 158°F)

  • Measuring range: 0 to 2bar / 20m H20 (0 to 30psi / 67ft H2O)

  • Cable length: 6 to 30m

  • Accuracy: up to ±0.35%

  • Drinking water approvals: ACS, KTW, NSF61, DVGW

  • Certifications: cULus



Measuring principle

Hydrostatic pressure

Characteristic

Compact probe with metallic cell for hydrostatic level measurement
in fresh water, ground water and potable water storage.

Supply voltage

8...28 VDC

Reference Accuracy

pn ≥ 400mbar: 0.35 %
pn < 400mbar: 0.50 %

Long term stability

0.1 % of URL/year

Process temperature

-10°C...+70°C
(+14°F...+158°F)

Ambient temperature

-10°C...+70°C
(+14°F...+158°F)

Measuring cell

200 mbar...2 bar
(3 psi...29 psi)

Process connection

Suspension clamp
Cable mounting screws

Material process membrane

Metal

Communication

4...20 mA

Drinking water approvals

NSF, KTW, ACS



Endress Hauser Hydrostatic Level Measurement Waterpilot FMX11 with 10m Cable 0
