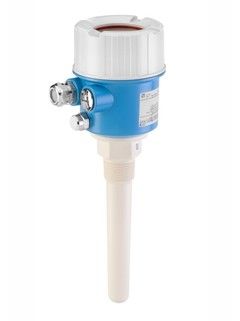

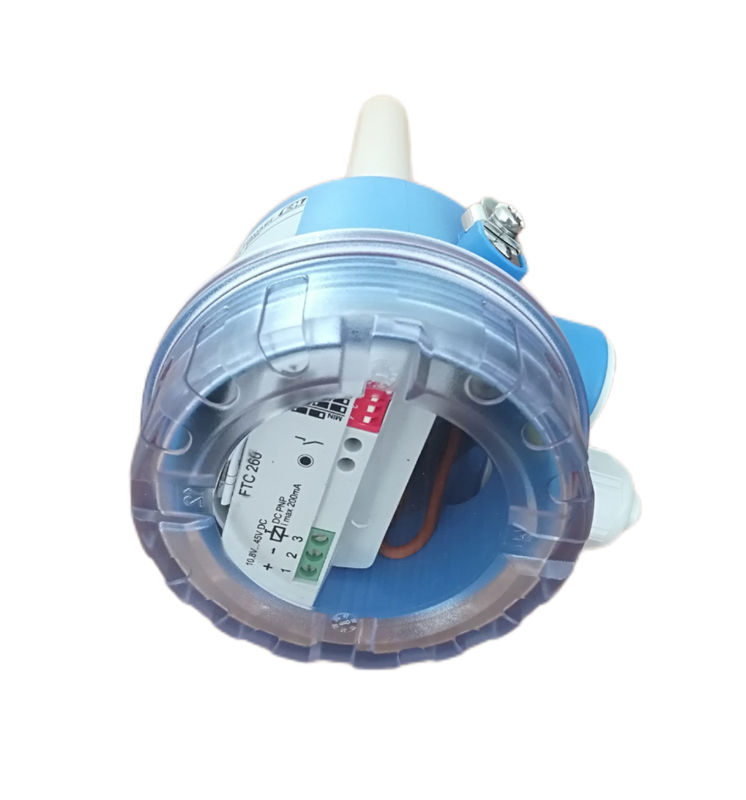

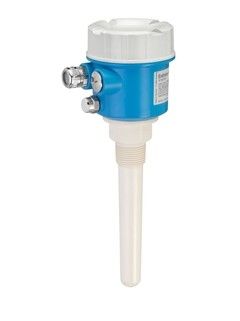

Endress+Hauser Capacitance Point Level Detection Minicap FTC260 With NEPSI Approval

Endress+Hauser Capacitance Point Level Detection Minicap FTC260 With NEPSI Approval
Endress+Hauser Capacitance Point Level Detection Minicap FTC260 With NEPSI Approval Endress+Hauser Capacitance Point Level Detection Minicap FTC260 With NEPSI Approval Endress+Hauser Capacitance Point Level Detection Minicap FTC260 With NEPSI Approval
Basic Information
Place of Origin: Germany
Brand Name: Endress+Hauser
Certification: CE
Model Number: FTC260-2B4J1
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: 12-14weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now
Approval: NEPSI Ex Ta/tb IIIC Da/Db Process Connection: Thread ANSI NPT1, PPS
Switch Output: Relay 20-253VAC/20-55VDC Housing; Cable Entry: F34 Alu IP66; Gland M20 NEMA Type 4 Encl
Additional Option: Basic Version Net Weight:: 0.920 Kilogram
Highlight:

Minicap FTC260 Point level detection Minicap

,

NEPSI Approval Point Level Detection Minicap

,

Capacitance Point level detection Minicap

Endress+Hauser Capacitance Point level detection Minicap FTC260



Minicap FTC260 is a simple and cost-effective rod probe for point level detection in bulk solids, particularly suited to applications involving aggressive media and heavy build-up. It is designed for point level detection of light bulk solids, e.g. grain products, flour, milk powder, animal feed, cement, chalk or gypsum.



For point level detection of light bulk solids, with a grain size up to max. 30mm and a dielectric constant εr ≥ 1.6.
Typical applications: Grain products, flour, milk powder, animal feed, cement, chalk or gypsum.

  • Process connection: Threads

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: -1 to +25bar (-14.5 to +360psi)

  • Sensor length: 140mm (5.51")

  • International explosion protection certificates, overfill prevention WHG

Measuring principle

Capacitive Solid

Characteristic / Application

Compact rod probe with build-up compensation
easy start up

Specialities


FDA-listed material

Supply / Communication

10,8 ... 45V DC, DC-PNP 3-wire
20 ... 253V AC, or
20 ... 55V DC, Relay output

Process temperature

-40°C ...+120°C
(-40°F ...+248°F)

Process pressure / max. overpressure limit

-1 ... 25 bar
(-14.5 ... 360 psi)

Main wetted parts

PPS = Polyphenylene sulphide
(glass fibre content approx. 40%)

Process connection

R1"
NPT1"

Sensor length

140 mm (5.51")

Communication

PNP transistor output
Relay output (potential-free
change-over contact / SPDT)

Certificates / Approvals

ATEX , IEC Ex, FM, CSA, NEPSI, UK Ex

Options


Aluminium Housing

Application limits

Solids, grain size max. 30 mm (1.2"),
DK min 1,6
Flexural strength 1400 N (at probe tip)
