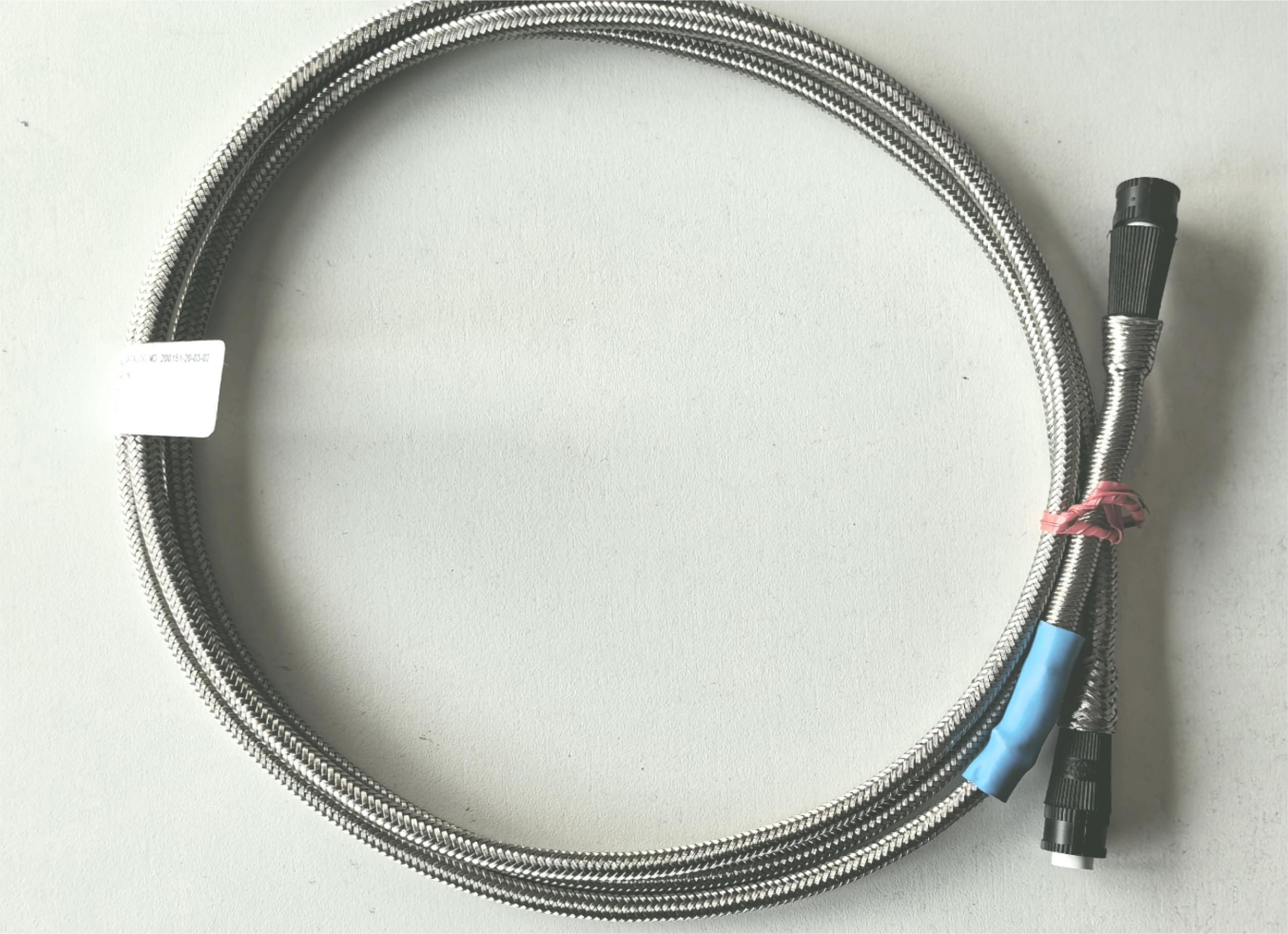

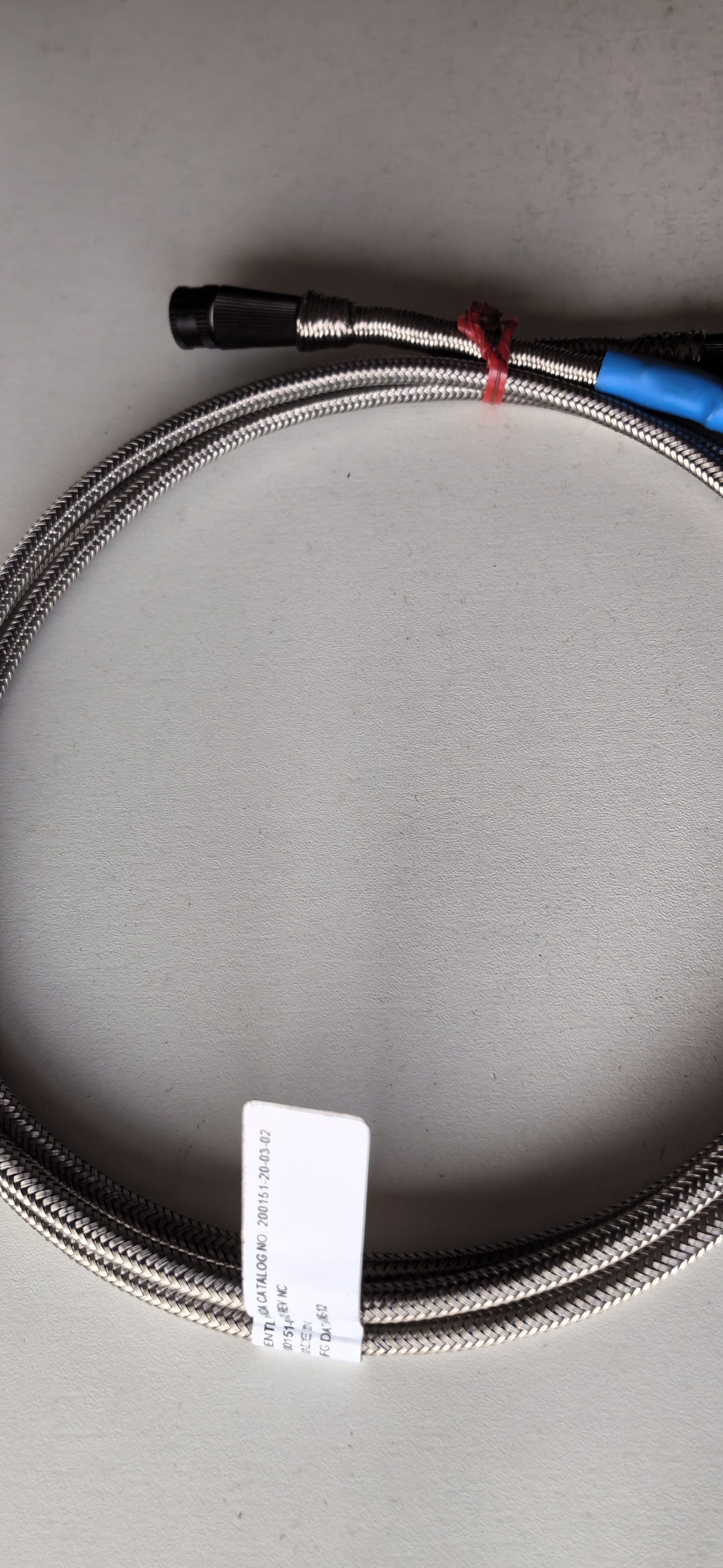

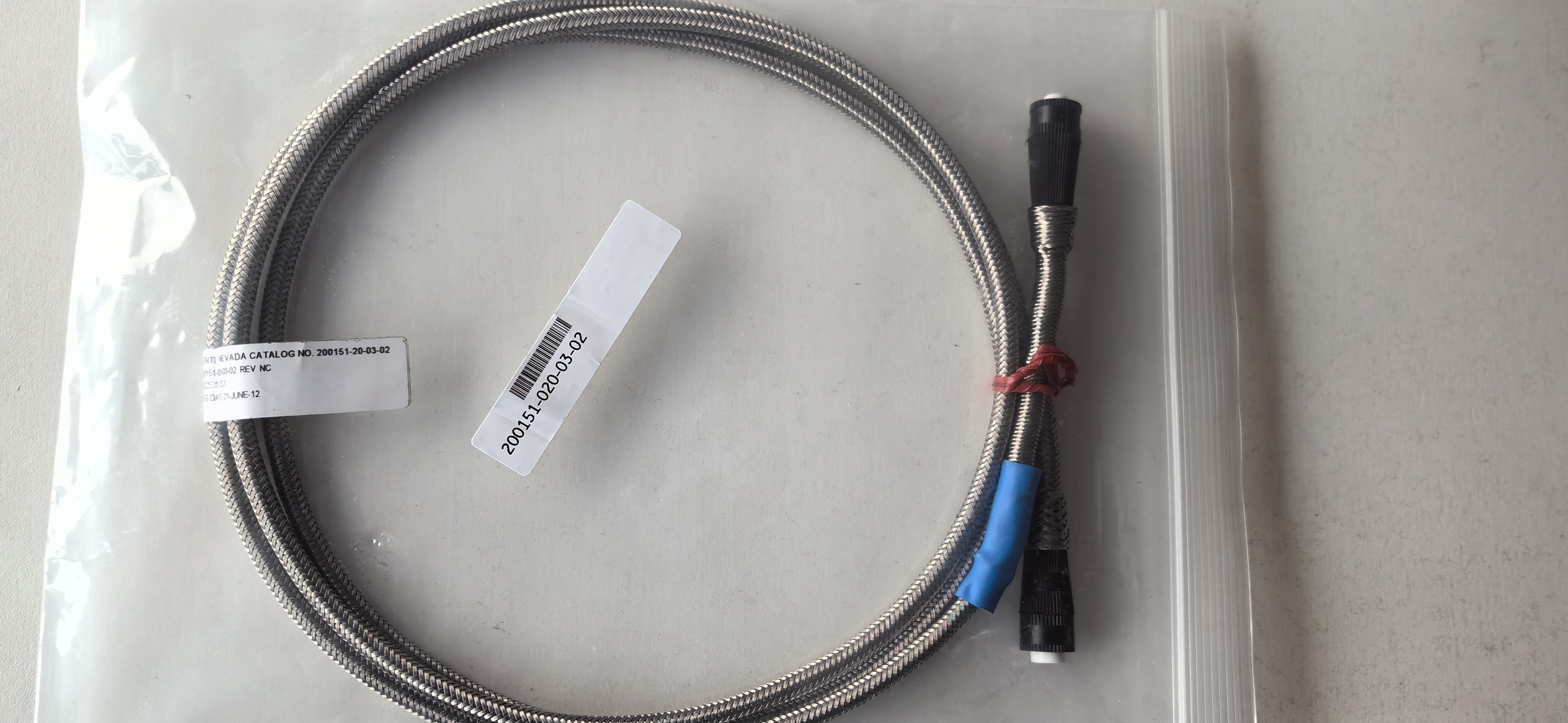

Bently Nevada Accelerometer Interface Standard Cable 1.5kg Part Number 200151-020-03-02
Product Details:
| Place of Origin: | USA |
| Brand Name: | Bently Nevada |
| Certification: | CE |
| Model Number: | 200151-020-03-02 |
| Document: | 200150, 200155 and 200157 A...1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | 12-16weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Part Number: | 200151-020-03-02 | Model Number: | 200151-020-03-02 |
|---|---|---|---|
| Manufacturer: | Bently Nevada | Country Of Origin: | USA |
| Weight: | 1.5kg | Lead Time: | 12-16weeks |
| Highlight: | Bently Nevada Accelerometer Interface Standard Cable,1.5kg Accelerometer Interface Standard Cable,200151-020-03-02 |
||
Product Description
Bently Nevada Machinery Condition Monitoring 200151
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs.
The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.
The 20015x Accelerometers feature a hermetically sealed, stainless steel case. This design provides an extremely rugged transducer that is well suited for harsh industrial environments. The transducer’s top-mounted, 5-pin connector allows you to easily install and remove the interconnecting signal cable. A 3/8-24 threaded hole on the bottom of the sensor’s casing accommodates several mounting options.
The 20015x Accelerometers contain a piezoelectric sensing device that generates a charge when it is subjected to vibration. The accelerometers electronically convert this charge to a differential voltage signal that is proportional to the acceleration that is parallel to the sensitive axis of the transducer.
200151-AA-BB-CC
Accelerometer Interface Standard Cable, Connectors on Both Ends
|
A: Cable Length |
|
|
20 |
2.0 meters |
|
40 |
4.0 meters |
|
60 |
6.0 meters |
|
B: Armor Option |
|
|
02 |
Blue cable without armor |
|
03 |
Blue cable with armor |
|
C: Coupling Nut |
|
|
00 |
Standard coupling nut (see Figure 9) |
|
02 |
Nylon coupling nut |
|
10 |
Enhanced coupling nut. This option provides a better grip for tightening the cable to the accelerometer and is provided on both ends of the cable (see Figure 11). |
