Upgrade Your Safety Measures MTL5082 MTL Isolated Safety Barrier 10Ω to 400Ω Output Range
Product Details:
| Place of Origin: | India |
| Brand Name: | MTL |
| Certification: | CE |
| Model Number: | MTL5082 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Number Of Channels: | One | Location Of RTD: | Zone 0, IIC, T4 Hazardous Area Div 1, Group A Hazardous Location |
|---|---|---|---|
| Resistance Range: | 10Ω To 400Ω | RTD Excitation Current: | 200µA Nominal |
| Output Configuration: | 2, 3 Or 4 Wires (independent Of Mode Selected For Hazardous-area Terminals | Output Range: | 10Ω To 400Ω (from A 100µA To 5mA Source) |
| Highlight: | MTL5082 Isolated Safety Barrier,MTL Isolated Safety Barrier |
||
Product Description

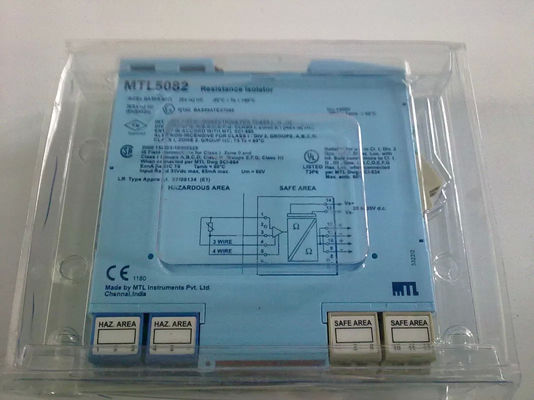

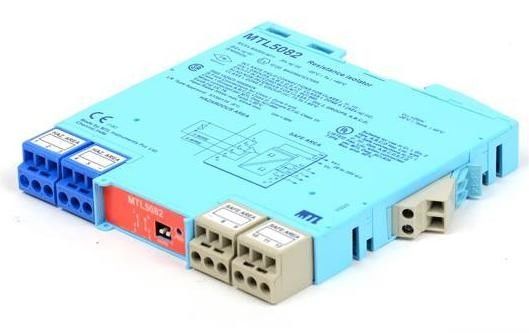

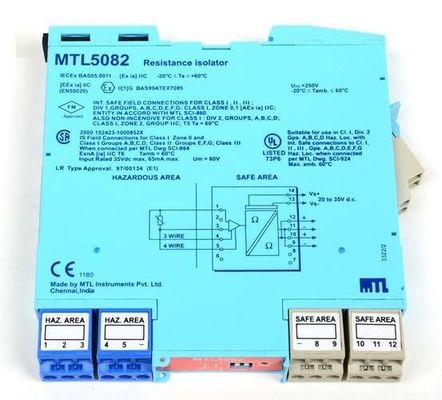

MTL Isolated Safety Barrier MTL5082
The MTL5082 connects to a 2-, 3-, or 4-wire resistance temperature device (RTD) or other resistance located in a hazardous area, isolates
it and repeats the resistance to a monitoring system in the safe area. The module is intended typically (but not exclusively) for use with Pt100
3-wire RTDs. Switches located on top of the module allow selection of 2-, 3-, or 4-wire RTD connection. The MTL5082 should be considered
as an alternative, non-configurable MTL5074, for use in RTD applications where a resistance input is preferred or needed instead of 4/20mA.
The design is notable for its ease of use and repeatability. The number of wires which can be connected on the safe-area side of the unit is independent of the number of wires which can be connected on the hazardous-area side. The module drives upscale in the case of open-circuit detection.
|
