Endress+Hauser Proline Prowirl F 200 vortex flowmeter 7F2C40 for High Pressure Applications
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Endress+Hauser |
| Certification: | CE |
| Model Number: | 7F2C40-AABCCAAAAAAD6SKA1+EB(7F2C40-1M173/0) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Max. Process Pressure: | PN 100, Class 600, 20K | Transmitter Housing Material: | AlSi10Mg, Coated; 1.4404 (316L) |
|---|---|---|---|
| Outputs: | 4‐20 MA HART (passive) 4‐20 MA (passive) Pulse/frequency/switch Output (passive) | Inputs: | Current Input 4‐20 MA (passive) |
| Digital Communication: | HART, PROFIBUS PA, FOUNDATION Fieldbus | Product Safety: | CE, C-TICK, EAC, UK Ex |
| Highlight: | Endress+Hauser vortex flowmeter,7F2C40 vortex flowmeter,7F2C40 |
||
Product Description

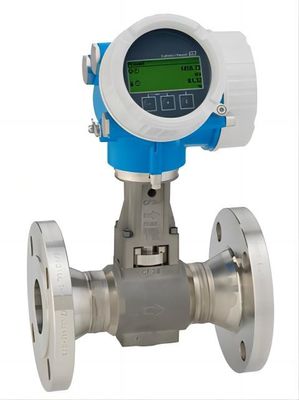

Endress+Hauser Proline Prowirl F 200 vortex flowmeter 7F2C40
Prowirl F is the multivariable flowmeter with inline wet steam measurement. Its calibration option PremiumCal guarantees excellent measuring accuracy and highest plant availability at low flow rates of gas, steam and liquids. With genuine loop-powered technology, Prowirl F 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology enables process safety at all times.
-
Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)
-
Suitable for a wide range of applications; optimized for steam applications
Device properties
-
Wet steam capabilities for DN 25 to 300 (1 to 12")
-
Flexible positioning of pressure cell
-
Industrial siphon design for pressure measurement
-
Display module with data transfer function
-
Robust dual-compartment housing
-
Plant safety: worldwide approvals (SIL, Haz. area)
