Endress+Hauser Proline Promass F 300 Coriolis flowmeter 8F3B40 with DC 24 V Power Supply
| Place of Origin | Germany |
|---|---|
| Brand Name | Endress+Hauser |
| Certification | CE |
| Model Number | 8F3B40-BSIBABEFAASAFMWAA2( 8F3B40-1VKX5/0) |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | on request |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Nominal Diameter Range | DN 8 To 250 (⅜ To 10") | Max. Process Pressure | PN 100, Class 600, 63K |
|---|---|---|---|
| Sensor Housing Material | Standard: 1.4301 (304) Option: 1.4404 (316/316L) | Inputs | Status Input 4-20 MA Input |
| Power Supply | DC 24 V AC 100 To 230 V AC 100 To 230 V / DC 24 V (non-hazardous Area) | Product Safety | CE, C-tick, EAC Marking |
| Highlight | Endress+Hauser Proline Promass F 300,Coriolis flowmeter 8F3B40,8F3B40 |
||
Product Description

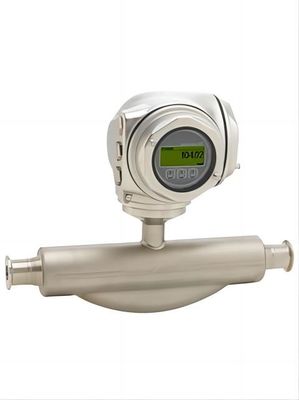

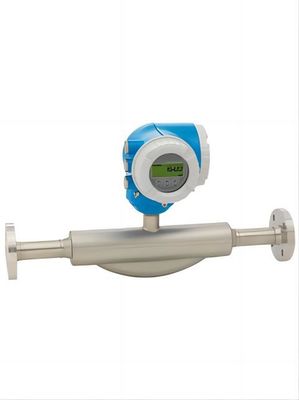

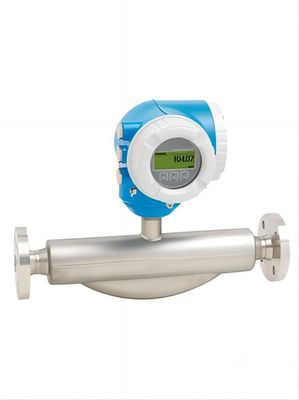

Endress+Hauser Proline Promass F 300 Coriolis flowmeter 8F3B40
Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments, it is suited for the broadest range of applications. With its compact transmitter Promass F 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
Measuring principle operates independently of physical fluid properties such as viscosity or densityHighest measurement performance for liquids and gases under varying, demanding process conditions.
Device properties
-
Mass flow: measurement error ±0.05 % (PremiumCal)
-
Medium temperature: -196 to 350 °C (-320 to 662 °F)
-
Nominal diameter: DN 8 to 250 (³⁄₈ to 10")
-
Compact dual-compartment housing with up to 3 I/Os
-
Backlit display with touch control and WLAN access
-
Remote display available
Related model
| 5W3B2H-AAEIBAAAAAAHM3K0AA2+LA DN200 | 5W3B2H-EHK4/0 | 50W25-UAOA1AA0A4AA Successor type: 5W4C25-AAELHA0AUD5K0A | 5W4C25-5NT3/0 |
| 5W4C3H-AAELHA0AHM3K0A DN300 | 5W4C3H-FUV2/0 | 50W40-UA0A1AA0AAAA Successor type: 5W4C40-AAELHA0AUD5K0A | 5W4C40-4HD2/0 |
| 5W3B3H-AAEIBAAAAAAHM3K0AA2+LA DN300 | 5W3B3H-7TJ0/0 |
50W50-UA0A1AA0AAAA Successor type: 5W4C50-AAELHA0AUD5K0A | 5W4C40-4HD2/0 |
| 50W25-UA0A1AA0AAAA Successor type: 5W4C25-AAELHA0AUD5K0A | 5W4C25-5NT3/0 |
50P40-EA2A1AAOBAAA Successor type: 5P3B40-AAIBAEAFADED5K2AA2 | 5P3B40-1F7H1/0 |
| 5P3B50-AAIBAEAFAAAD5K1AA2 | 5P3B50-17WF4/0 |
53H80-A00B1AA0ABAB Successor type: 5H3B80-AAIBAEHFAA00000BA2 | 5H3B80-AP89/0 |
| PMP635-R43L9M1AEU1 Successor type:PMP75-ACA1MB1B4AAA | PMP75-2F86/142 |
53H40-A00B1AA1ABAB Successor type:5H3B40-AAIBAEHFAA00000BA2 | 5H3B40-9E94/0 |
| 50P40-EA2A1AA0AAAA Successor type:5P3B40-AAIBAEAFAAED5K2AA2 | 5P3B40-PLJ9/0 |
50P80-EA2A1AA0BAAA Successor type: 5P3B80-AAIBAEAFADED5K2AA2 | 5H3B40-9E94/0 |
| 50P80-EA1A1AAOBAAA Successor type:5P3B80-AAIBAEAFADED5K1AA2 | 5P3B80-25ET9/0 | 50W3H-HD0A1AA0A5AA Successor type: 5W4C3H-AAELHA0AHD2K0A | 5H3B40-9E94/0 |
| 53P1Z-EH2B1BA0ABAA Successor type:5P3B1Z-BDDBAEAFAAED3S2BA2 | 5P3B1Z-DEV5/0 | 80E08-AD2SAABAAAAA Successor type: 8E3B08-BDEBAEAFAASAD2SHA2 | 8E3B08-R5K1/0 |
| 50P50-EA2A1AA0BAAA Successor type:5P3B50-AAIBAEAFADED5K2AA2 | 5P3B50-2JKV5/0 | 50W25-UA0A1AA0A4AA Successor type: 5W4C25-AAELHA0AUD5K0A | 5W4C25-5NT3/0 |
| 80E08-AD2SAABAABAA Successor type:8E3B08-BDDBAEAFAASAD2SHA2 | 8E3B08-R5J6/0 | 50W1H-HCOA1AA0AAAA Successor type: 5W4C1H-AAELHA0AHD3K0A | 5W4C1H-L7L0/0 |
| 50W32-UA0A1A10AAAW Successor type:5W4C32-AAELHA0AUD5K0A | 5W4C32-2AT4/0 | 50W5H-HC0A1AK1ABAA Successor type: 5W4C5H-AAGLHP1AHD3K0A+CB | 5W4C5H-XLN5/0 |
