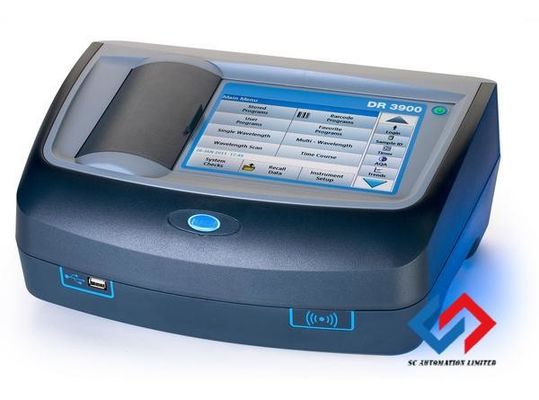

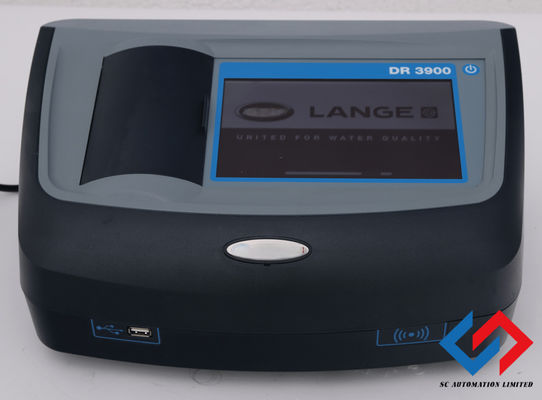

HACH DR3900 Laboratory VIS Spectrophotometer with Colored Touch-Screen Display

Basic Information
Place of Origin: USA
Brand Name: HACH
Certification: CE
Model Number: DR3900
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Original packaging
Delivery Time: 10-12 weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Dimensions (H X W X D): 151 Mm X 350 Mm X 255 Mm Display: 7" TFT
Display Size: 7 Inch (17.8 Cm) Display Type: Colored Touch-screen
Operating Conditions: 10 - 40 °C (50 - 104 °F), Max. 80 % Relative Humidity (non-condensing) Power Requirements (Voltage): 110 - 240 V AC
Highlight:

HACH DR3900 Spectrophotometer

,

Laboratory VIS Spectrophotometer

,

HACH DR3900 Laboratory VIS Spectrophotometer

HACH DR3900 Laboratory VIS Spectrophotometer

Optimized for safe processes and consistent, quick and accurate water analysis results

The DR3900 is a benchtop visible spectrum (320 - 1100 nm), split beam spectrophotometer with over 220 pre-programmed methods optimized for laboratory water analysis. With your daily routine of water analysis in mind, the DR3900 spectrophotometer is optimized for safe processes and accurate results.

The DR3900 is designed to deliver accurate results quickly with Hach's innovative TNTplus and LCK reagents for fast preparation and easy execution. In fact, it automatically recognizes our Hach reagents, so there is no need to enter method numbers.

Specifications

Beam Height 10
Data Logger 2000 measured values (Result, Date, Time, Sample ID, User ID)
Dimensions (H x W x D) 151 mm x 350 mm x 255 mm
Display 7" TFT
Display Resolution WVGA (800 pix x 480 pix)
Display Size 7 inch (17.8 cm)
Display Type Colored touch-screen
Enclosure Rating IP40
Interfaces USB type A (2), USB type B, Ethernet, RFID module
Light source Gas-filled Tungsten (visible)
Manual Languages English
French (CDN)
Spanish (SA)
Portuguese (BR)
Chinese
Japanese
Korean
Operating Conditions 10 - 40 °C (50 - 104 °F), max. 80 % relative humidity (non-condensing)
Operating Mode Transmittance (%), Absorbance and Concentration, Scanning
Optical System Reference beam, spectral
Photometric Accuracy 5 mAbs @ 0.0 - 0.5 Abs
1 % at 0.50 - 2.0 Abs
Photometric Linearity < 0.5 % - 2 Abs
Photometric Linearity 2 ≤ 0.01 % at >2 Abs with neutral glass at 546 nm
Photometric Measuring Range ± 3.0 Abs (wavelength range 340 - 900 nm)
Power Requirements With external power supply
Power requirements (Hz) 50/60 Hz
Power requirements (Voltage) 110 - 240 V AC
Power Supply Benchtop Power Supply
Preprogrammed Methods > 240
Sample Cell Compatibility 13 mm round, 16 mm round, 1 cm & 5 cm rectangular, 1" round, 1" rectangular
Scanning Speed > 8 nm/S (in steps of 1 nm)
Source Lamp Gas-filled Tungsten (visible)
Specific Technology RFID for easy method update, sample ID and Certificate of Analysis
Spectral Bandwidth 5 nm
Standard accessories None
Storage conditions -30 - 60 °C (-22 - 140 °F), max. 80% relative humidity (non-condensing)
Stray Light < 0.1% T at 340 nm with NaNO2
User Interface Languages Bulgarian, Chinese, Croatian, Czech, Danish,
Dutch, English, Finnish, French, German,
Greek, Hungarian, Italian, Japanese, Korean,
Polish, Portuguese - Brazil, Portuguese,
Russian, Serbian, Slovakian, Slowenian,
Spanish, Swedish, Turkish
User Programs 100
Warranty 12 months
Wavelength Accuracy ± 1.5 nm (wavelength range 340 - 900 nm)
Wavelength Calibration Automatic
Wavelength Range 320 - 1100 nm
Wavelength Reproducibility ± 0.1
Wavelength Resolution 1
Wavelength Selection Automatic, based on method selection
Weight 4.2 kg
What's included? Includes: Adapter A for 1 in. round and 1 cm square cells, matched pair of 1 in. square glass sample cells, light shield, dust cover, printed basic user manual and benchtop power supply with 115 and 230V power cords.
