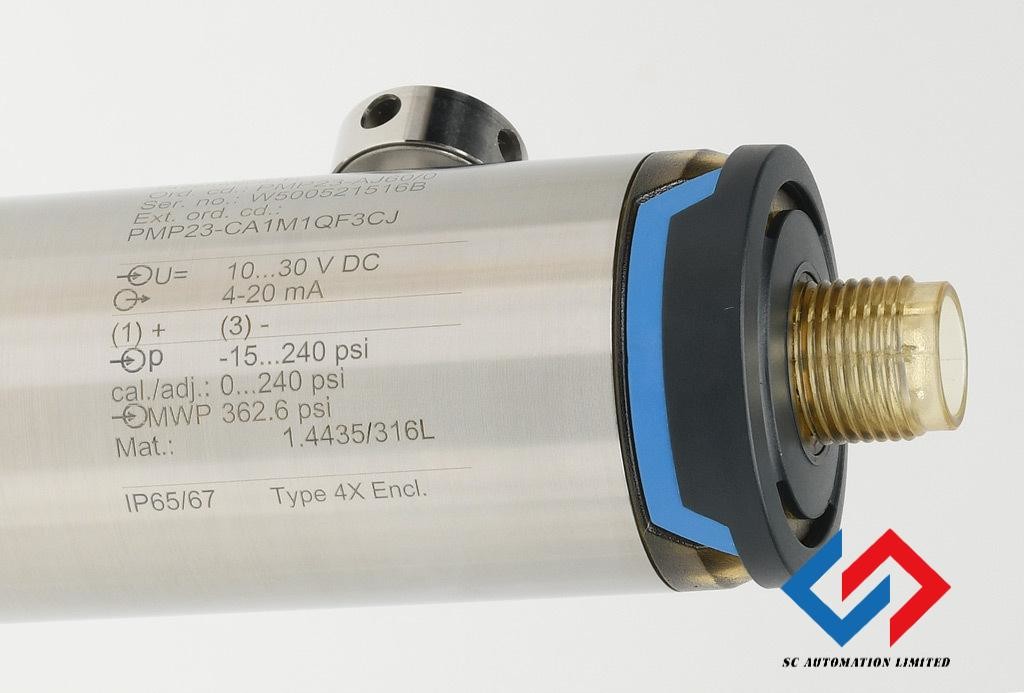

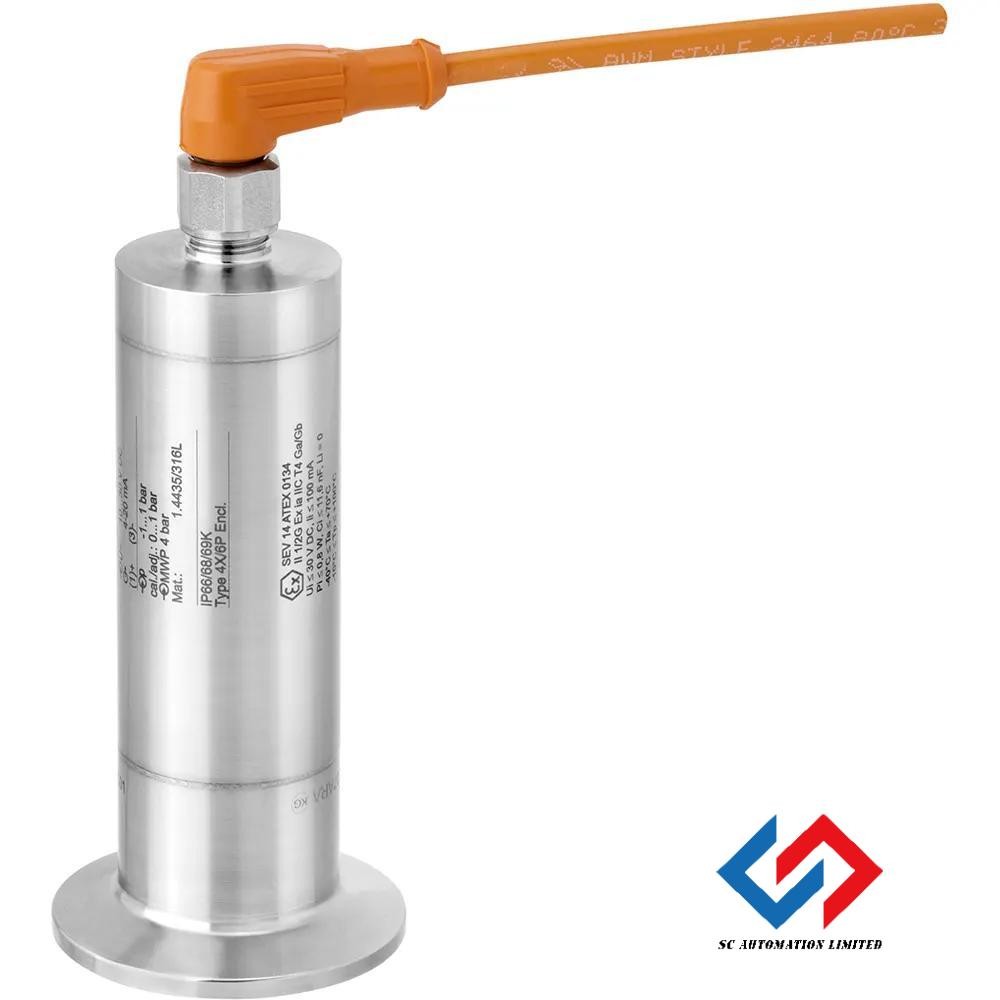

E+H Compact Pressure Transmitter Cerabar PMP23-DN33/0 PMP23-IA1N1HF3CJ+F3RW
| Place of Origin | DE |
|---|---|
| Brand Name | E+H |
| Certification | CE |
| Model Number | PMP23-DN33/0 PMP23-IA1N1HF3CJ+F3RW |
| Document | PMP23.pdf |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Approval | IECEx Ia IIC T4 Ga/Gb | Output | 4-20mA |
|---|---|---|---|
| Electrical Connection | Plug M12, IP66/69 NEMA Type 4X Encl. | Calibration | Factory Verification Certificate 3-point |
| Accessory Enclosed | Plug Connector M12 90deg, IP69, 5m Cable, Union Nut 316L | Net Weight | 0.685 Kilogram |
| Highlight | E+H Compact Pressure Transmitter,PMP23-IA1N1HF3CJ+F3RW,Cerabar PMP23-DN33/0 |
||
Product Description
E+H Absolute and gauge pressure Cerabar PMP23

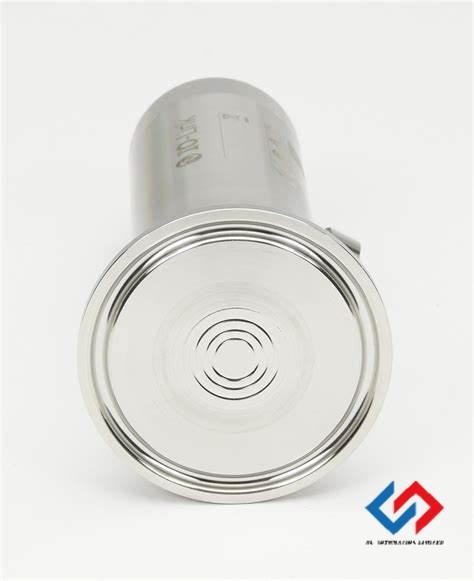

The Cerabar PMP23 is a price-attractive and compact absolute or gauge pressure transmitter. The piezo-resistive measuring cell with flush-mounted 316L diaphragm was designed for applications in the hygienic industry. PMP23 offers various EHEDG and 3-A certified hygienic process connections, materials with FDA conformity, EG1935/2004 conformity, IP69 protection, optional IO-Link and hazardous area certificates. The device can be delivered with customized measuring ranges up to 40bar.
Pressure transducer to measure absolute or gauge pressure in gases or liquids.
-
Process connections: Flush-mounted hygienic connections, flush mounted thread connections
-
Process temperature: -10°C to +100°C (-40°F to +212°F) and +135°C (+275°F) for max. 1h
-
Process pressure: 400mbar to +40bar (6 to 600psi)
-
Accuracy: ±0.3% of span
-
International explosion protection certificates, hygienic certificates.
Measuring principle |
Absolute and gauge pressure |
Characteristic |
Cost-effective pressure transducer, piezoresistive sensor with metallic measuring diaphragm for hygienic applications |
Supply voltage |
10…30 VDC |
Reference Accuracy |
0.3 % |
Long term stability |
0.2 % of URL/year |
Process temperature |
-10 °C…+100 °C (+14 °F…+212 °F) +135 °C for 1 h (+275 °F for 1 h) |
Ambient temperature |
-40 °C…+85 °C (-40 °F…+185 °F) |
Measuring cell |
+400 mbar…+40 bar (+6 psi...+600 psi) |
Max. overpressure limit |
160 bar (2400 psi) |
Process connection |
Threads: G1, M24 |
Process connection hygienic |
DIN11851, Clamp, SMS, Varivent, Universal adapter |
Communication |
4...20 mA IO- Link |
Certificates / Approvals |
ATEX, FM, CSA, IEC Ex, NEPSI, UK Ex |
