PMP75 Pressure Transmitter Absolute and Gauge Measurement with HART PROFIBUS PA FOUNDATION Fieldbus Communication
| Place of Origin | DE |
|---|---|
| Brand Name | E+H |
| Certification | CE |
| Model Number | PMP75-C2156/101 PMP75-5A11SE1AR7AE+ENJAJEKDKEKGZ1 |
| Document | TI00383PEN_3624-00.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | Original packaging |
| Delivery Time | 8-10 weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Measuring Principle | Absolute And Gauge Pressure | Supply Voltage | 4...20 MA HART 10,5...45V DC (Non Ex): Ex Ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
|---|---|---|---|
| Process Temperature | -70°C...400°C (-94°F...752°F) | Ambient Temperature | -50°C...85°C (-58°F...185°F) |
| Safety Approvals | SIL | Communication | 4...20 MA HART PROFIBUS PA FOUNDATION Fieldbus |
| Highlight | Gauge Measurement Pressure Transmitter,HART PROFIBUS PA Pressure Transmitter |
||
Product Description

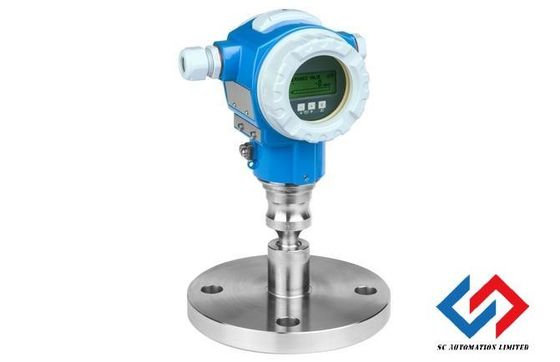

E+H pressure transmitter PMP75
The Cerabar PMP75 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. Suitable for high pressure as well as extreme process temperature applications from -70 up to +400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. Designed according to IEC 61508 for use in SIL2/3 safety applications.
Two chamber aluminum or stainless steel (316L) housing.
-
Process connections: Threads, flanges or hygienic connections
-
Process temperature: -70 to +400°C (-94 to +752°F)
-
Pressure: -1/0 up to 400bar (-15/0 up to +6,000psi)
-
Accuracy: ±0.075%
-
International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals
Measuring principle |
Absolute and gauge pressure |
Characteristic |
Digital transmitter with piezoresistive sensor and diaphragm seal Modular transmitter Long term stability Minimum oil volume process connection Enhanced safety via self diagnostic functions Secondary process barrier |
Supply voltage |
4...20 mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
Reference Accuracy |
0,075% + influence of diaphragm seal |
Long term stability |
0.05 % of URL/ year 0.07 % of URL/ 5 years 0.1 % of URL/ 10 years |
Process temperature |
-70°C...400°C (-94°F...752°F) |
Ambient temperature |
-50°C...85°C (-58°F...185°F) |
Measuring cell |
400 mbar...400 bar (5.8 psi...6000 psi) relative/ absolute |
Smallest calibratable span |
5 mbar (0.075 psi) |
Vacuum resistance |
10 mbar (0.15 psi) |
Max. Turn down |
100:1 |
Max. overpressure limit |
1050 bar (15.750 psi) |
Process connection |
Thread: G1/2...G2, R1/2, MNPT1/2...MNPT2, NPT1/2...NPT1 Flange: DN25...DN100, ASME 1"...4", JIS 10K Diaphragm seal |
Process connection hygienic |
Tri-Clamp DIN11851 NEUMO Varivent SMS DRD Universal adapter |
Material process membrane |
316L, AlloyC, Tantal Rhodium> Gold PTFE |
Material gasket |
None, diaphragm welded |
Fill fluid |
Silicone oil, Inert oil, Vegetable oil, High temperature oil, Low temperature oil, |
Material housing |
Die-cast aluminum, AISI 316L |
Communication |
4...20 mA HART PROFIBUS PA FOUNDATION Fieldbus |
Certificates / Approvals |
ATEX, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC |
Safety approvals |
SIL |
Design approvals |
EN10204-3.1 NACE MR0103 |
Hygienic approvals |
3A, EHEDG |
Marine approvals |
GL/ ABS |
Specialities |
Diagnostic functions TempC Membrane |
Successor |
PMP71B |
