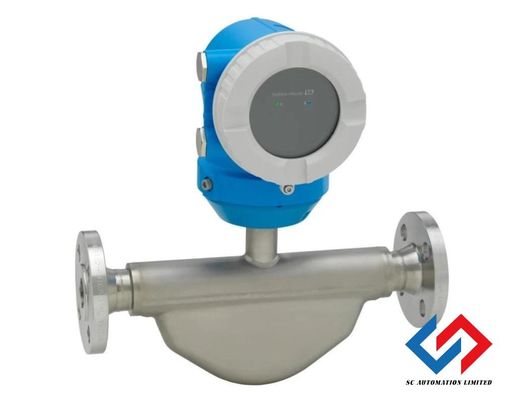

Endress Hauser Mass Flow Meter 8KBB40-14M8/0 with Coated Housing and 24VDC Power Supply

Basic Information
Place of Origin: DE
Brand Name: Endress+Hauser
Certification: CE
Model Number: 8KBB40-14M8/0 8KBB40-AADBJAASAD2SFA1
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Original packaging
Delivery Time: 8-10 weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Power Supply: 24VDC Output; Input: 4-20mA HART, Pulse/freq./switch Output
Display; Operation: LCD, 2.40"; SmartBlue App Housing: Alu, Coated
Electrical Connection: Gland M20 Meas. Tube Mat., Wetted Parts: Stainl. Steel, Not Polished
Highlight:

Coated Housing Mass Flow Meter

,

24VDC Power Supply Mass Flow Meter

,

Mass Flow Meter 8KBB40-14M8/0

Endress+Hauser Mass Flow Meter 8KBB40

Promass K is the cost-efficient Coriolis solution for elementary mass flow measuring tasks. It provides dependable measurement in basic applications featuring air, gas, fuel and water. With its straightforward hard- and software design, Promass K 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.


Measuring principle

Coriolis

Product headline

Flowmeter with minimized total cost of ownership with easy-to-use operation concept.
Measurement of liquids and gases in utility processes and basic applications.

Sensor features

Cost-effective general-purpose device – alternative to mechanical flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in-/outlet run needs.
Compact dual-tube sensor. Medium temperature up to +150 °C (+302 °F). Process pressure up to 100 bar (1450 psi).

Transmitter features

Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
System integration with HART, Modbus RS485, IO-Link. Flexible operation with app and optional display.

Nominal diameter range

DN 8 to 80 (⅜ to 3")

Wetted materials

Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)

Measured variables

Mass flow, temperature, Density (option), volume flow, corrected volume flow

Max. measurement error

Mass flow (liquid): ±0.5 % (standard), ±0.15 % (option)
Mass flow (gas): ±0.75%

Measuring range

0 to 180 000 kg/h (0 to 6615 lb/min)

Max. process pressure

PN 40, Class 300, 40K

Medium temperature range

–40 to +150 °C (–40 to +302 °F)

Ambient temperature range

Standard: –20 to +60 °C (–4 to +140 °F)

Sensor housing material

Stainless steel 1.4301 (304)

Transmitter housing material

AlSi10Mg, coated

Degree of protection

Standard: IP66/67, Type 4X enclosure

Display/Operation

2.4" LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible


Endress Hauser Mass Flow Meter 8KBB40-14M8/0 with Coated Housing and 24VDC Power Supply 0
