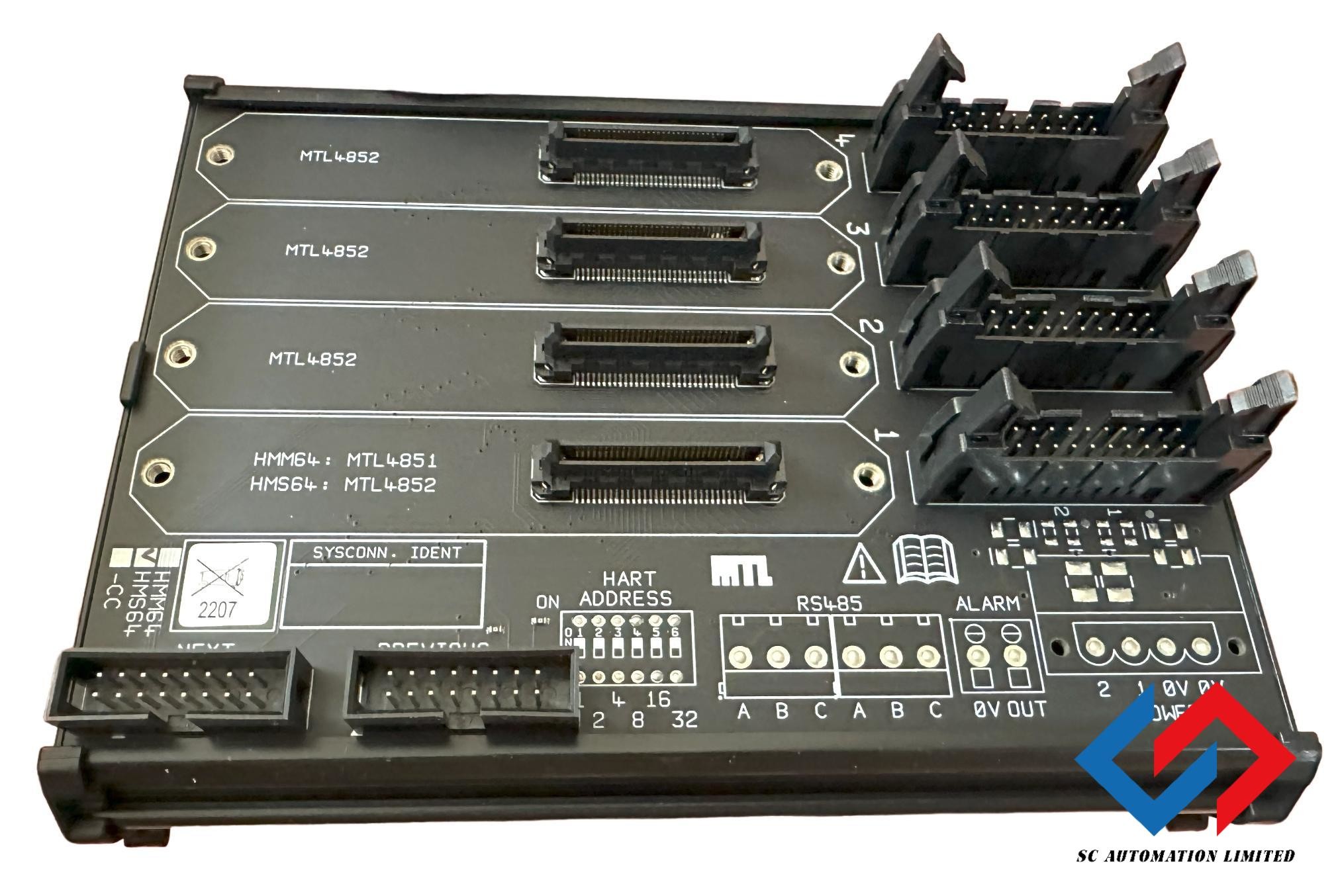

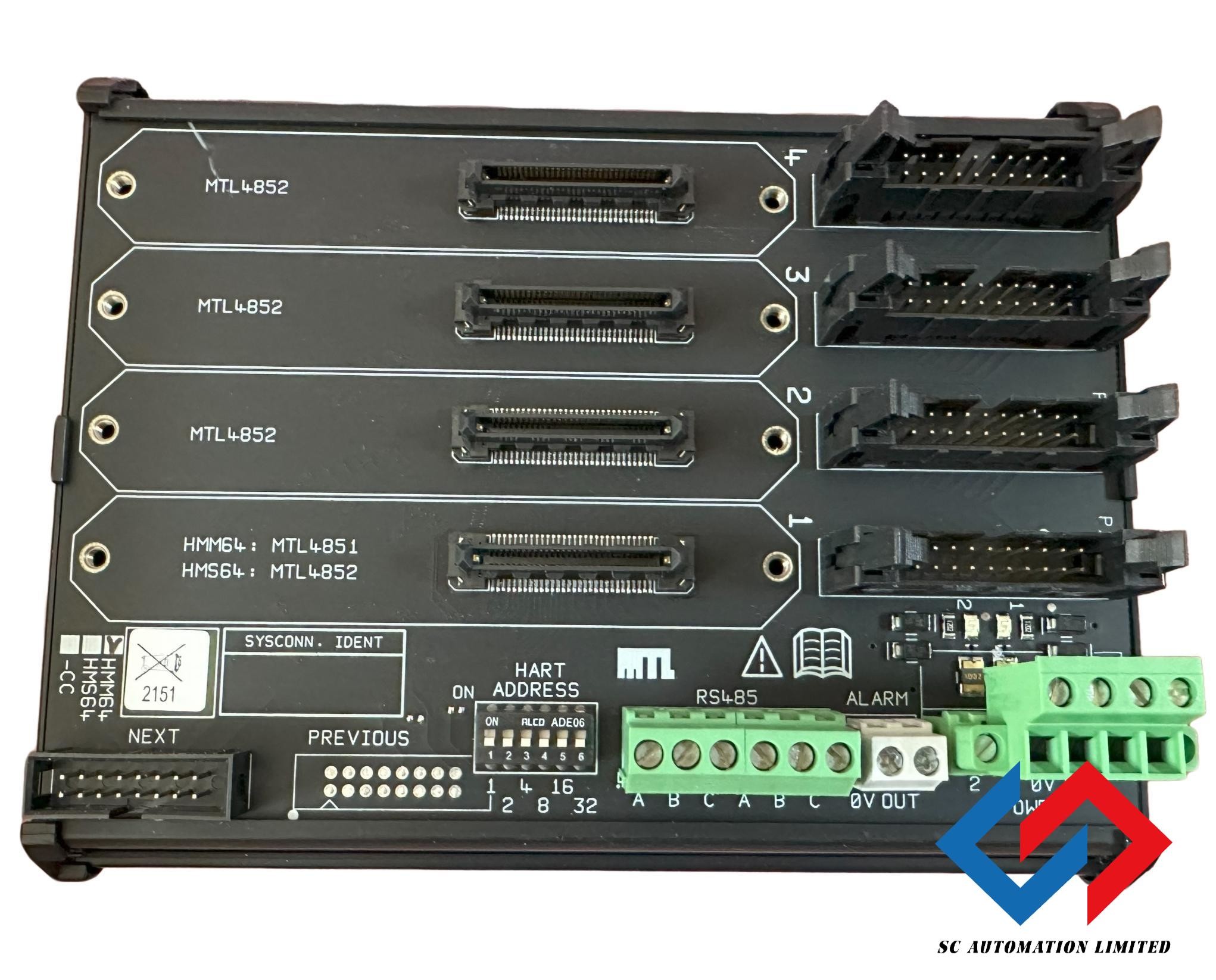

Eaton Crouse-Hinds Series MTL HMS64/HMM64 Backplane 64 channel with 4 x MTL4852 capacity

Basic Information
Place of Origin: England
Brand Name: MTL
Certification: CE
Model Number: HMS64/HMM64
Document: crouse-hinds-mtl-4851-4852-...et.pdf
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Original packaging
Delivery Time: negotiable
Payment Terms: T/T
Supply Ability: 100pcs per month
COMPATIBLE HART MUX: MTL4852 HART Multiplexe ADDRESS SELECTIO: HART Address Switch
CAPACITY: 4 X MTL4852 NUMBER OF CHANNELS: 64
ART CONNECTOR: 4 X DIN41651 20-way HART Signal Cables POWER CONNECTORS: 2 X DIN41651 16-way Socket
Highlight:

Eaton Crouse-Hinds HMS64 Backplane

,

Eaton Crouse-Hinds HMM64 Backplane

,

MTL HMS64/HMM64 Backplane

Eaton Crouse-Hinds series MTL HMS64/HMM64 backplane


Installations likely to use more than 80 field loops
For installations required to accommodate more than 80 loops, the system should probably be based upon the HMM64 and HMS64 HART backplanes - see Section 4.2. An HMM64 backplane will accommodate one MTL4851 master module and up to three MTL4852 secondary modules to accommodate a total of 64 loops. A further three HMS64 backplanes, each carrying four MTL4852 modules, can be ‘daisy-chained’ back to the HMM64, providing an extra 3 x 64 loops  for a total of 256, all provided from one RS485 address location.


HMM64 & HMS64 HART backplanes
For medium to large scale installations, the HMM64 ‘master’ and HMS64 ‘secondary’ HART  backplanes are a popular choice when handling the HART maintenance signals passing to and  from the field devices.

Mounting
The HMM64 and HMS64 backplanes are designed for mounting in a control room equipment  cabinet and are supplied fitted on a carrier suitable for T- or G- section DIN-rail mounting in any  orientation.

HMM64
HMS6
weight (excluding modules):
215g approx.
200g approx.


DC power connection
DC power is required on the HMM64 only. HMS64 backplanes receive their power through the cable from the HMM64 or the preceding HMS64 backplane. The HMM64 has a removable, 4-way, screw-clamp terminal connector that provides for  redundant 24V dc supply connections.
