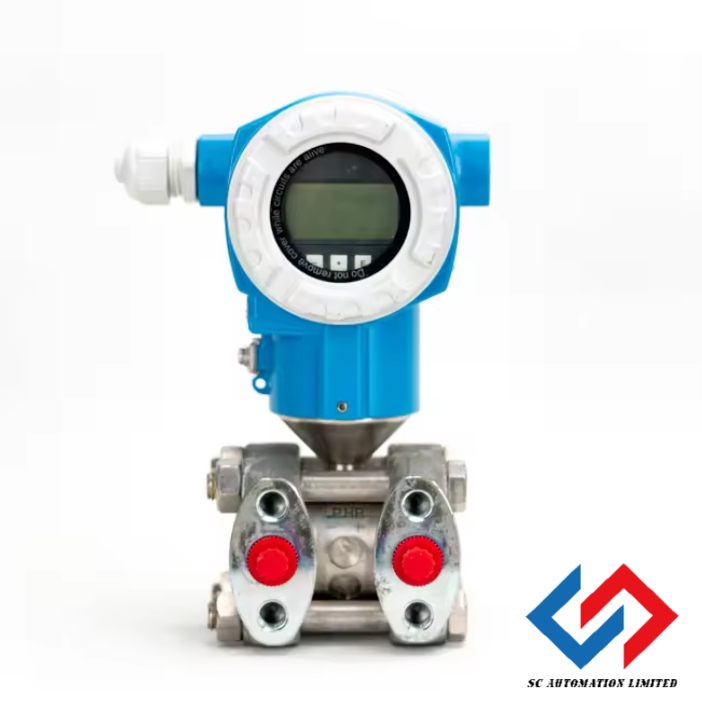

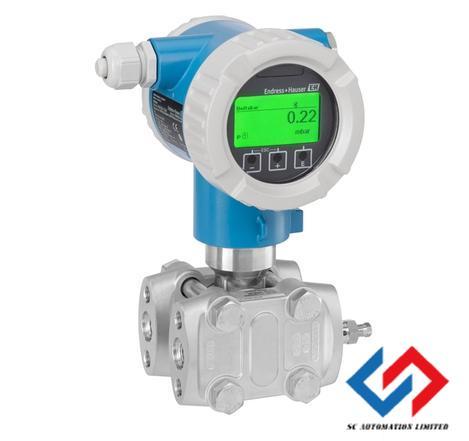

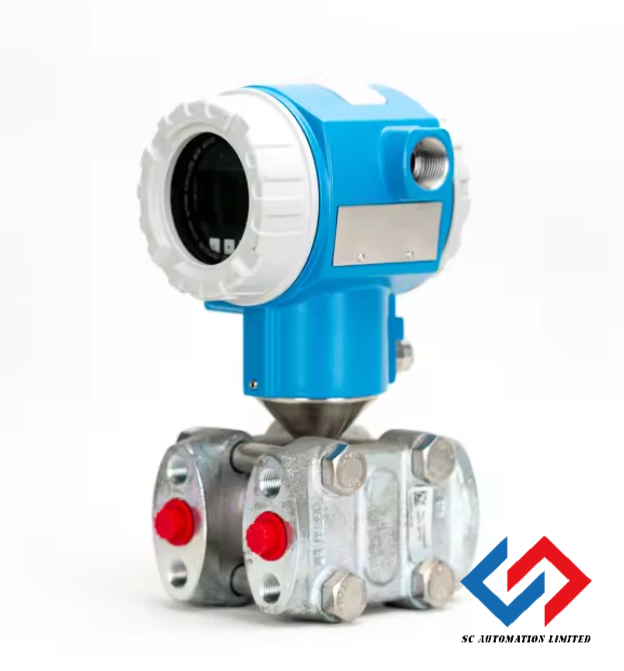

PMD75B Endress+Hauser pressure transmitter PMD75B-4VP55/125

PMD75B Endress+Hauser pressure transmitter PMD75B-4VP55/125
PMD75B Endress+Hauser pressure transmitter PMD75B-4VP55/125
PMD75B Endress+Hauser pressure transmitter PMD75B-4VP55/125 PMD75B Endress+Hauser pressure transmitter PMD75B-4VP55/125 PMD75B Endress+Hauser pressure transmitter PMD75B-4VP55/125 PMD75B Endress+Hauser pressure transmitter PMD75B-4VP55/125
Basic Information
Place of Origin: CHINA
Brand Name: Endress+Hauser
Certification: ATEX
Model Number: PMD75B-4VP55/125
Document: TI01511PEN_0825-00.pdf
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Original packaging
Delivery Time: 8-10 weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now
Measuring Principle: Differential Pressure Process Temperature: -40°C...+110°C (-40°F...+230°F)
Measuring Cell: 10 Mbar...250 Bar (0.15 Psi...3750 Psi) Material Housing: Aluminium, 316L
Fill Fluid: Silicone Oil, Inert Oil Net Weight: 4.92kg
Highlight:

Endress Hauser PMD75B pressure transmitter

,

PMD75B industrial pressure sensor

,

Endress Hauser 4VP55 pressure transmitter

PMD75B Endress+Hauser pressure transmitter PMD75B-4VP55/125

Field of application

This transmitter belongs to the new Deltabar generation. The device is robust and can be remotely controlled via SmartBlue App using a secure Bluetooth connection. It allows condition based maintenance to increase plant availability.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. plugged impulse lines.

  • Pressure measuring ranges up to 250 bar (3750 psi) (gauge/absolute) and 40 bar (600psi) (dp)
  • Static pressure up to 420bar (6300psi)
  • Accuracy: up to +/- 0.035%

Speccifications


Measuring principle

 Differential pressure

Characteristic

 Differential pressure transmitter which detects process anomalies like plugged impulse lines.
Intuitive and clear wizards for commissioning, proof tests and verification.

Supply voltage

Ex d, Ex e, non-Ex:
10.5...35V DC
Ex i: 10.5...30V DC

Reference Accuracy

 Standard:
up to 0.05 %
Platinum:
up to 0.035 %

Long term stability

 0.025 % of URL/ year
0.05 % of URL/ 5 years
0.10 % of URL/ 10 years

Process temperature

 -40°C...+110°C
(-40°F...+230°F)

Ambient temperature

 -40°C...+85°C
(-40°F...+185°F)

Measuring cell

 10 mbar...250 bar
(0.15 psi...3750 psi)

Smallest calibratable span

 0.25 mbar (0.00375 psi)

Vacuum resistance

 25 mbar (0.0375 psi)

Max. Turn down

 100:1

Max. overpressure limit

 630 bar (9,450 psi)

Process connection

 NPT1/4-18
RC1/4"

Material process membrane

 316L, AlloyC,
Tantal,
Monel,
Gold



 Spare parts & accessories


71487198 71487199
1487199 71679714
71487201 71487203
71679715 71679718
71435135 71435135
71435137 71440660
71440667 71435138
71435139 71439098
71474251 71435116
