93TA1-CCAEAA+E2F1F2 Endress+Hauser 93T ultrasonic flowmeter

Basic Information

Place of Origin:	CH
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	93TA1-CCAEAA+E2F1F2
Document:	BA00136DEN_1524.pdf

Minimum Order Quantity:	1pc
Price:	Negotiable
Packaging Details:	Original packaging
Delivery Time:	8 -10 weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Measuring Principle:

Ultrasonic Flow

Sensor Features:

Integrated USB Data Logging

Max. Measurement Error:

+/-2.0 %

Measuring Range:

0....452'389 M3/h

Max. Process Pressure:

No Limit

Degree Of Protection:

IP 40

Highlight:

Endress Hauser ultrasonic flowmeter

93T ultrasonic flowmeter with warranty

industrial ultrasonic flowmeter E2F1F2

93TA1-CCAEAA+E2F1F2 Endress+Hauser 93T ultrasonic flowmeter

Name: 93TA1-CCAEAA+E2F1F2 Endress+Hauser 93T ultrasonic flowmeter
Brand: SC Automation Limited
SKU: 93TA1-CCAEAA+E2F1F2
Price: 1,003.00 USD
Availability: InStock

Field of application

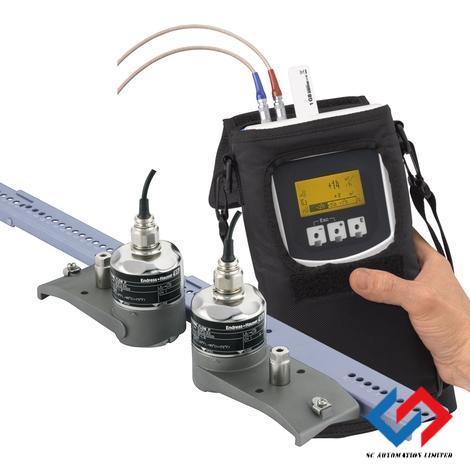

The portable ultrasonic flowmeter Prosonic Flow 93T is designed for temporary monitoring and test measurements with clamp on sensors. It is operated independently of the mains power using a battery. The Prosonic Flow 93T is ideal for conducting verification measurements at existing flow metering points.

The sensors are perfectly suited for the non-contact measurement of pure or slightly contaminated liquids, regardless of the pressure or electrical conductivity.

Ideal solution for temporary use everywhere precise measurement or verification is required
Can be used with all metal and plastic pipes lined or unlined and with composite pipes
Suitable for pipe diameters from DN 15 to 4000 (½ to 160")
Suitable for fluid temperatures ranging from –40 to +170 °C (–40 to +338 °F)

Specifications

Measuring principle	Ultrasonic flow
Product headline	Portable volume flowmeter for measurement of liquid applications; from outside of the pipe with "Clamp On" sensors
Sensor features	Integrated USB data logging
Nominal diameter range	DN 15...65 - 1/2"...2 1/2" (-40...+100°C or -40...+150 °C) DN 50...300 - 2"...12" -40...+80 °C or 0...+170 °C) DN 100...4000 - 4"...160" (-40...+80 °C)
Max. measurement error	+/-2.0 %
Measuring range	0....452'389 m3/h
Max. process pressure	No limit
Medium temperature range	DN 15...65 -40...+150°C (-40...+302°F) DN 50...300 -40...+170°C (-40...+338°F) DN 100...4000 -40...+80°C (-40...+176°F)
Degree of protection	IP 40
Display/Operation	Four line backlit touch control
Outputs	Integrated data logger/site manager Easy data transfer via USB stick without additional software
Inputs	4...20mA
Digital communication	FXA 193

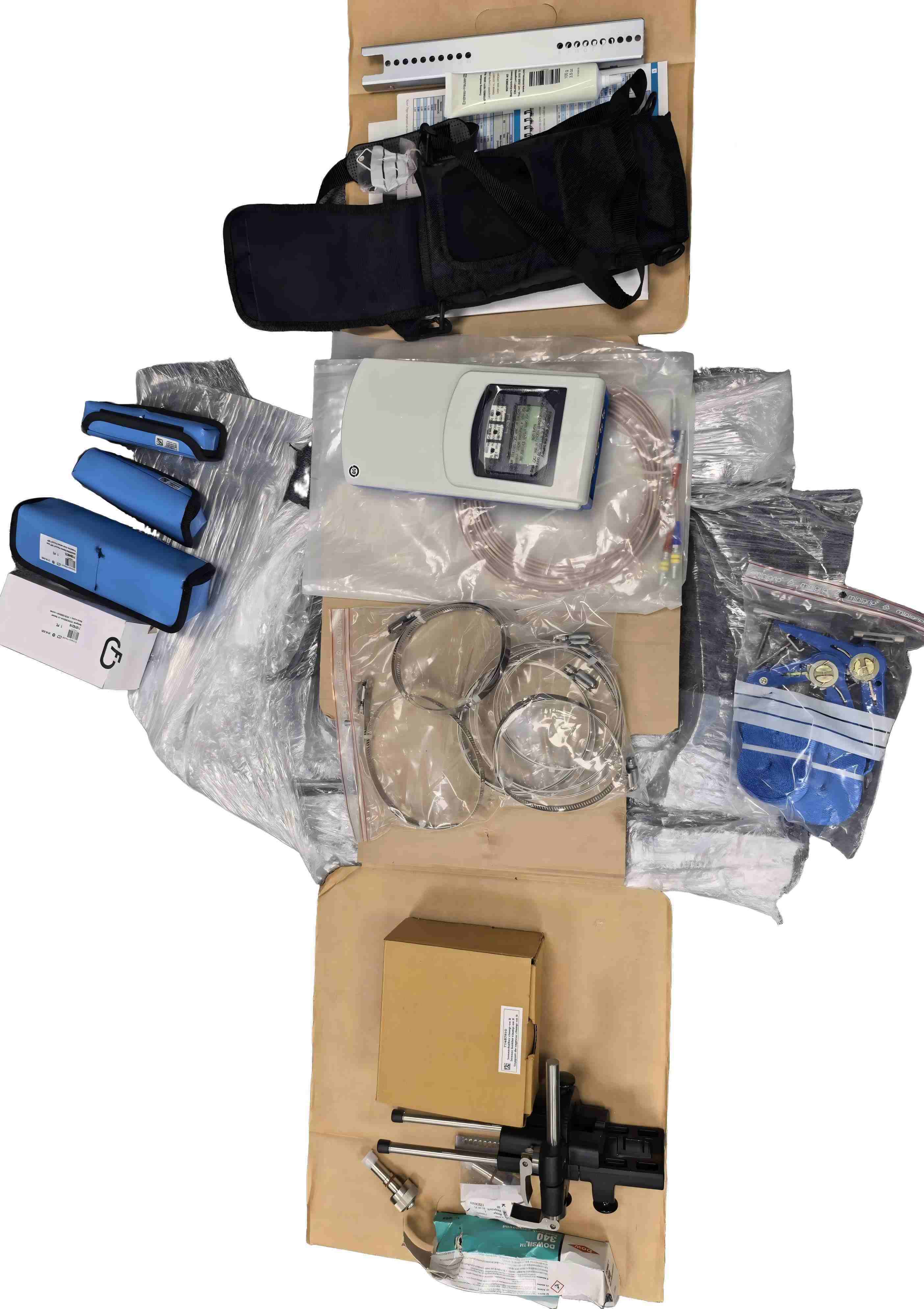

Spare parts & accessories

71076316	71094796	50091703	50091704
71112217	93TA1-	DK9PT-	DK9SS-
DK9SH-	FXA193-	DK9ZT-
