9W4BA0-AALHFPAACAADACA2 Endress+Hauser ultrasonic clamp-on flowmeter 9W4BA0

Basic Information

Place of Origin:	CH
Brand Name:	Endress+Hauser
Certification:	CE
Model Number:	9W4BA0-AALHFPAACAADACA2
Document:	TI01568DEN_0224-00.pdf

Minimum Order Quantity:	1pc
Price:	negotiable
Packaging Details:	Original packaging
Delivery Time:	8-10 weeks
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now Chat Now

Measuring Principle:

Ultrasonic Flow

Measured Variables:

Volume Flow, Flow Velocity, Sound Velocity

Measuring Range:

0 To 15 M/s (0 To 50 Ft/s)

Max. Process Pressure:

N/A

Inputs:

Status Input

Digital Communication:

HART

Highlight:

Endress Hauser ultrasonic flowmeter

clamp-on flowmeter with warranty

9W4BA0 flowmeter industrial use

9W4BA0-AALHFPAACAADACA2 Endress+Hauser ultrasonic clamp-on flowmeter 9W4BA0

Name: 9W4BA0-AALHFPAACAADACA2 Endress+Hauser ultrasonic clamp-on flowmeter 9W4BA0
Brand: SC Automation Limited
SKU: 9W4BA0-AALHFPAACAADACA2
Price: 1,003.00 USD
Availability: InStock

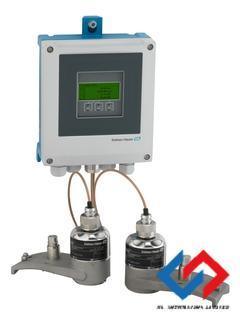

Field of application

Prosonic Flow W 400 is the ultrasonic clamp-on flowmeter of choice for safe, cost-effective and maintenance-free measurement of conductive and non-conductive liquids. It measures flow noninvasively and bidirectionally, independent of pressure, density and conductivity, and without process interruption.
FlowDC makes mounting as flexible as never before. The specified accuracy is maintained at an inlet run of only 2 x DN, even in the case of disturbed flow profiles.

Special coupling pads make this ultrasonic clamp-on system maintenance-free during the entire product life cycle.

Specifications

Measuring principle	Ultrasonic flow
Product headline	Clamp-on meter with Heartbeat Technology and web server for the water and wastewater industry. Short inlet run thanks to FlowDC. Bidirectional measurement for water and wastewater as well as process water and hydropower plants.
Sensor features	Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 2000/80"). Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Reliable measurement on various pipe materials – sensor for GRP and plastic pipes available. Mounting without process interruption. Wide nominal diameter range: DN 15 to 4000 (½ to 160"). Medium temperature up to +130 °C (+266 °F).
Transmitter features	Safe operation – no need to open the device due to display with touch control, background lighting. Full remote access – web server. Integrated diagnostics, verification and monitoring – Heartbeat Technology. Transmitter housing made of durable polycarbonate or aluminium. Remote version for wall mounting. Integrated data logger: measured values monitoring.
Nominal diameter range	DN15 to 4000 (1/2 to 160")
Sensor materials	Clamp on system: Sensor holder 1.4301 (304), 1.4404 (316L) Sensor housing 1.4301 (304), 1.4404 (316L) Strapping bands 1.4301 (304), 1.4404 (316L)
Measured variables	Volume flow, Flow velocity, Sound velocity
Max. measurement error	Volume flow: ±3% o.r. for DN15 ±2% o.r. for DN25 to 200 ±2% o.r. above DN200
Measuring range	0 to 15 m/s (0 to 50 ft/s)
Max. process pressure	N/A

Spare parts & accessories

XPD0092-	XPD0017-	71228789	71540053
71634893	71185788	71408508	71384170
71278077	71278078	DK9015-	DK9CM-
XPRFID-	XPSPEC-	71228792	71343504
71346427	71351317	9X4BXX-	DK9018-
DK9018-	DK9017-	DK9017-
