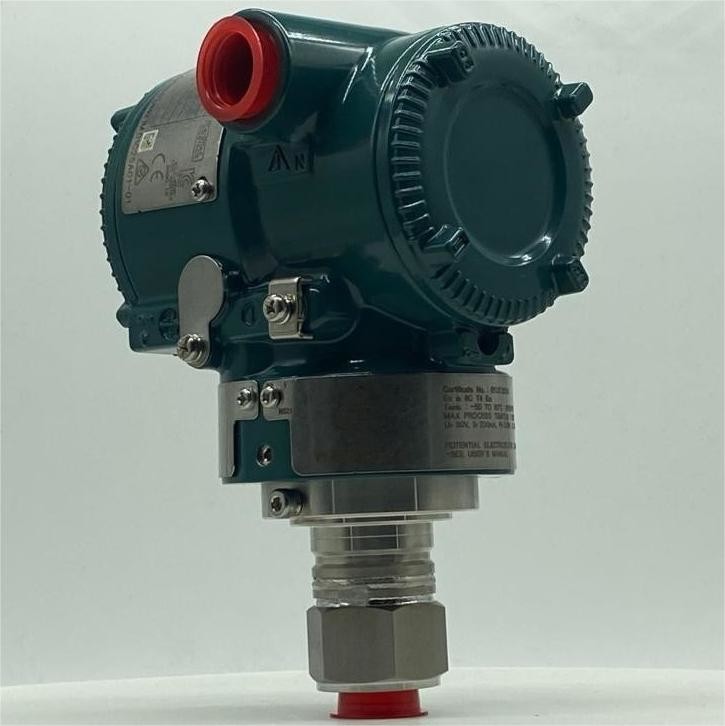

EJA110E YOKOGAWA Transmitter differential pressure sensor EJA110E-JFS5J-912EA/NS21
Product Details:
| Place of Origin: | Japan |
| Brand Name: | YOKOGAWA |
| Certification: | CE |
| Model Number: | EJA110E-JFS5J-912EA/NS21 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Housing: | Available Stainless Steel Or AA365 Low-Copper Housing | Degrees Of Protection: | IP66/IP67,Type 4X |
|---|---|---|---|
| Flange Gasket Design: | Teflon-coated 316L SST | Cover Flange: | 316 SST Cover Flange With Drain & Vent Plugs |
| ANSI/ISA 12.27.01: | Dual Seal Certified | Pressure Retaining: | 4-Bolt Design |
| Mechanical: | Overpressure Diaphragm | Diaphragm: | Passivated Hastelloy C-276 |
| Highlight: | EJA110E YOKOGAWA Transmitter,IP66 YOKOGAWA Transmitter,differential pressure sensor |
||
Product Description

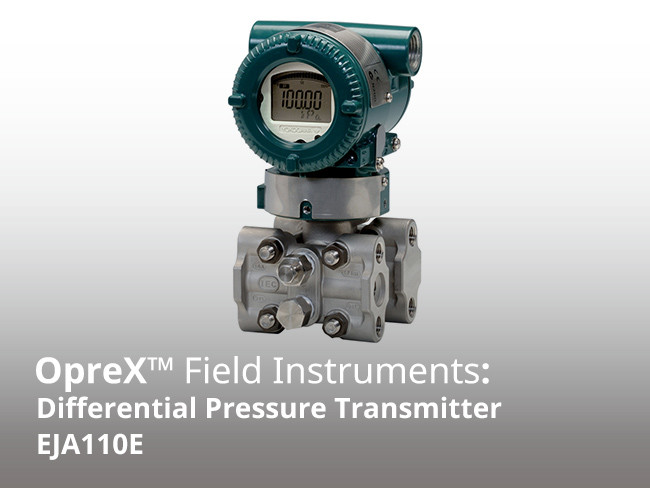

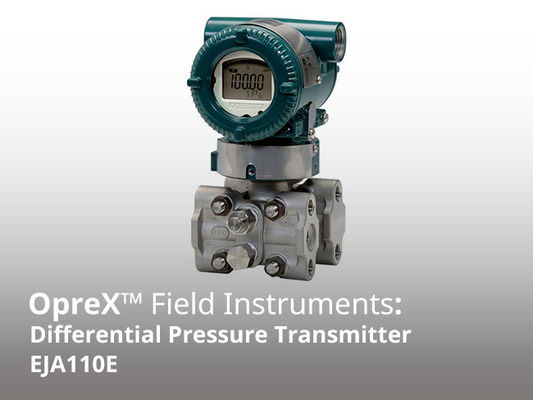

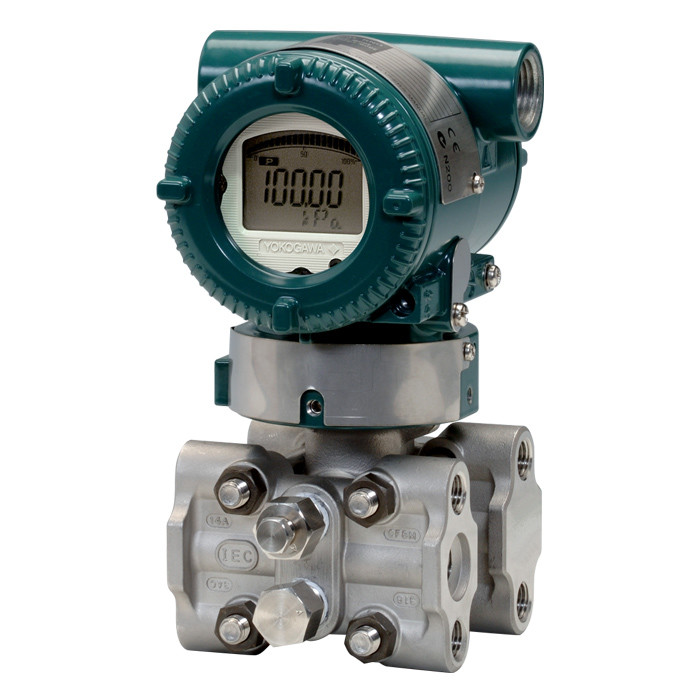

EJA110E Differential Pressure Transmitter EJA110E-JFS5J-912EA/NS21
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
The EJA110E is our standard traditional-mount differential pressure transmitter in this series.
EJA110E features include:
- 0.055% Accuracy (0.04% Accuracy optional)
- 0.1% Stability per 10 years
- 90 ms Response Time
- Exida and TUV SIL 2 / SIL3 Certified
- MWP 2,300 psi (MWP 3,600 psi option)
- Local Parameter Setting (LPS)
EJA110E Specification Overview
| Measurement Types | |
| Primary Variable | Differential Pressure (DP) |
| Secondary Variable | Static Pressure (SP) |
| Reference Accuracy | |
| Primary Variable | ±0.055% of Span |
| Secondary Variable | ±0.5% of Span available |
| Response Time | |
| Primary Variable | 90 msec |
| Secondary Variable | 360 msec |
| Long Term Stability | |
| Primary Variable | ±0.1% of URL per 10 years |
| Over-pressure Effect | |
| Primary Variable | ±0.03% of URL |
| Rangeability | |
| Primary Variable | 100:1 |
Related Part Number:
| EJA110E-DMS4G-717DD |
| EJA110E-DHS4G-717DD |
| EJA110E-DHS5J-912NB |
| EJA110E-DMS5J-912NB |
| EJA110E-DLH5J-912NB |
| EJA110E-JMS4J-717DD |
| EJA110E-JMS5J-712ND/D4 |
| EJA110E-JFS4G-917DD/D4 |
| EJA110E-DLH5J-914DB |
| EJA110E-JMS4G-719DD |
| EJA110E-DLH4J-812DD/D4 |
| EJA110E-JMS4G-719DD/KS21/D3 |
| EJA110E-DMS4J-912DB-D4 |
| EJA110E-JMS4G-717DD |
| EJA110E-JHS4G-717DD |
| EJA110E-JMS4J-912DB/D4 |
| EJA110E-DHS4J-912DB/D4 |
| EJA110E-DHS4J-710DD/D3/C1 |
| EJA110E-DMS4G-717DD |
| EJA110E-JFS2J-915EB/X2 |
| EJA110E-JMS5G-93DEB |
| EJA110E-JMS5G-93DEB/K1 |
| EJA110E-JMS4C-93DEB |
| EJA110E-JFS4C-93DEB |
