3500/60 Bn 3500 Vibration Monitoring System Temperature Modules 163179-01 133827-01
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | CE |
| Model Number | 3500/60-01-00 163179-01 133827-01 |
| Document | 3500-60 and 3500-61 Tempera...40.pdf |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | 12-16weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Signal | Accepts From 1 To 6 RTD Or TC Transducer Signals. | Power Consumption | Nominal Consumption Of 7 Watts. |
|---|---|---|---|
| Dimensions | 241.3 Mm X 24.4 Mm X 241.8 Mm | Weight | 0.91 Kg (2.0 Lb) |
| Monitor Module | 1 Full-height Front Slot | /O Modules | 1 Full-height Rear Slot |
| Highlight | RTD bn 3500 vibration monitoring system,163179 01,133827 01 |
||
Product Description

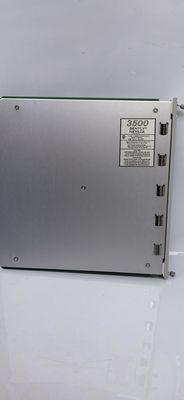

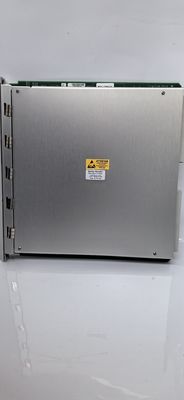

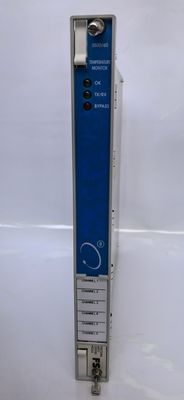

Bently Nevada 3500/60 Temperature Modules 3500/60-01-00 163179-01 133827-01
The 3500/60 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.
When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate operation and to avoid single-point failures.
Ordering Information
Without Recorder Outputs 3500/60-AA-BB
|
A:I/O Module Type |
|
| 01 | RTD/TC Non-isolated I/O Module Internal Terminations |
| 02 | RTD/TC Non-isolated I/O Module External Terminations |
| 03 | TC Isolated I/O Module Internal Terminations |
| 03 | TC Isolated I/O Module External Terminations |
| 05 | RTD/TC Non-isolated I/O Module with Internal Barriers |
|
B:Agency Approval Option |
|
| 00 | None |
| 01 | CSA/NRTL/C (Class 1, Div 2) |
| 02 | ATEX/ IECEx/ CSA (Class 1, Zone 2) |
3500/60 -Specific
| 163179-01 | 3500/60 Temperature Monitor (without recorders) |
| 133827-01 | 3500/60 RTD/TC Non-Isolated I/O Module, External Terminations. |
| 133819-01 | 3500/60 RTD/TC non-Isolated I/O Module, Internal Terminations |
| 133835-01 | 3500/60 TC Isolated I/O Module, Internal Terminations. |
| 133843-01 | 3500/60 TC Isolated I/O Module, External Terminations. |
| 136711-01 | 1 3500/60 RTD/TC I/O Module with Internal Barriers and Internal Terminations. (Not-Isolated) |
Spares
| 133908-01 | RTD/TC Non-Isolated External Termination Block (Terminal Strip connectors). |
| 133916-01 | RTD/TC Non-Isolated External Termination Block (Euro Style connectors). |
| 133924-01 | TC Isolated External Termination Block (Terminal Strip connectors). |
| 133932-01 | TC Isolated External Termination Block (Euro Style connectors). |
| 00580442 | Connector Header, Internal Termination, 9-position, Green. |
| 00580443 | Connector Header, Internal Termination, 12-position, Green. |
| 00502133 | Connector Header, Internal Termination, 12-position, Blue. |
| 00580444 | Connector Header, Internal Termination, 15-position, Green. |
| 134542 | 3500/60 & 3500/61 User Guide |
