Inductive sensor NJ5-18GK-N

Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Thread mold: M18, Construction type: Cylindrical, thread, Series: Cylindrical type, Safety Integrity Level (SIL): SIL 2, Type of voltage: DC, Equipment protection level Ga: IECEx PTB 11.0037X, Equipment protection level Gb: IECEx PTB 11.0037X, Equipment protection level Da: IECEx PTB 11.0037X, Equipment protection level Mb: IECEx PTB 11.0037X

Technical Data

General specifications
Switching function		Normally closed (NC)
Output type		NAMUR
Rated operating distance		5 mm
Installation		flush
Assured operating distance		0 ... 4.05 mm
Reduction factor rAl		0.4
Reduction factor rCu		0.3
Reduction factor r304		0.85
Output type		2-wire
Nominal ratings
Nominal voltage		8.2 V (Ri approx. 1 kΩ)
Switching frequency		0 ... 500 Hz
Hysteresis		1 ... 10 typ. 5 %
Current consumption
	Measuring plate not detected	min. 3 mA
	Measuring plate detected	≤ 1 mA
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
MTTFd		4566 a
Mission Time (TM)		20 a
Diagnostic Coverage (DC)		0 %
Compliance with standards and directives
Standard conformity
	NAMUR	EN 60947-5-6:2000 IEC 60947-5-6:1999
	Standards	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
Approvals and certificates
IECEx approval
	Equipment protection level Gb	IECEx PTB 11.0037X
	Equipment protection level Da	IECEx PTB 11.0037X
	Equipment protection level Mb	IECEx PTB 11.0037X
ATEX approval
	Equipment protection level Gb	PTB 00 ATEX 2048 X
	Equipment protection level Da	PTB 00 ATEX 2048 X
UL approval		cULus Listed, General Purpose
CCC approval
	Hazardous Location	2020322315002255
NEPSI approval
	NEPSI certificate	GYJ16.1393X
CML approval		on request
ANZEx		18.3018X
KCC approval
	Hazardous Location	19-AV4BO-0227
Marine approval		DNVGL TAA00001A5
Ambient conditions
Ambient temperature		-25 ... 100 °C (-13 ... 212 °F)
Mechanical specifications
Connection type		cable
Housing material		PBT/PPS
Sensing face		PBT
Degree of protection		IP66 / IP68
Cable
	Cable diameter	6 mm ± 0.2 mm
	Bending radius	> 10 x cable diameter
	Material	PVC
	Core cross section	0.75 mm2
	Length	2 m
Dimensions
	Length	39 mm
	Diameter	18 mm
General information
Use in the hazardous area		see instruction manuals

Related Models:

KCD2-SCD-EX1	KFU8-UFT
KCD2-STC-EX1.20	K-HM26-2M-261533
KFD2-SR2-Ex1.W.LB	NBB15-U1-E2
KFD2-SR2-2.W.SM	NBB1,5-5GM25-E2
KFD2-SR2-Ex2.W.SM	NBB1,5-5GM25-E2-V3
KFD2-SR2-Ex2.2S	NBB1,5-F79-E0
KFD2-SR2-2.2S	NBB1,5-F79-E2
KFA6-DWB-EX1.D	NBB15-U1-Z2
KFA6-SR2-Ex2.W	NBB5-18GM50-E2-V1
KFA6-SR-2.3L.FA	NBB15-30GM30-E2-V1
KFA6-ER-1.5	NBB15-30GM50-A2-V1
KFA6-ER-1.6	NBB15-30GM50-E2
KFA6-ER-1.W.LB	NBB15-30GM50-E2-M
KFA6-ER-2.W.LB	NBB15-30GM50-E2-V1
KFA6-ER-Ex1.W.LB	NBB15-30GM50-E2-V1-M
KFA6-SR-2.3L.FA	NBB8-18GM30-E2
KFA6-STR-1.24.4	NBB8-18GM30-E2-V1
KFD0-CS-Ex1.50P	NBB8-18GM60-A2-V1
KFD2-SH-Ex1.T.OP	NJ4-12GK-SN
KFD2-SL2-EX2.B	NJ5-18GK-N
KFD2-SR2-EX1.W	NJ5-18GK-N-150
KFD2-SR2-Ex2.W	NJ5-18GM-N
KFD2-STC5-1.2O	NJ8-18GK-N
KFD2-STC5-Ex1	RD0-FB-EX4
KFD2-STC5-Ex1.H	RD0-TI-Ex8.FF.*
HIC2031	Z787.F

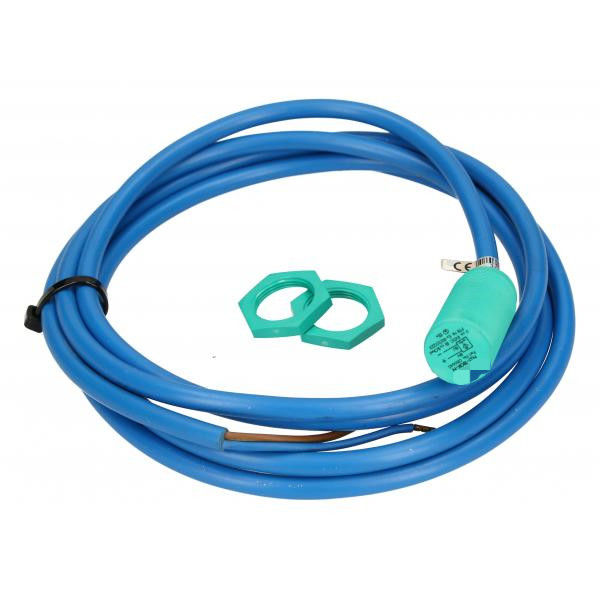

5mm P+F Sensors Inductive Sensor EN 60947 NJ5-18GK-N 0

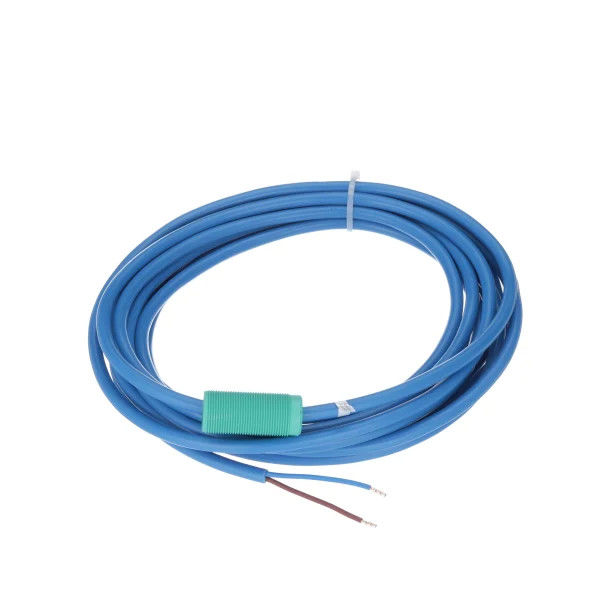

5mm P+F Sensors Inductive Sensor EN 60947 NJ5-18GK-N 1

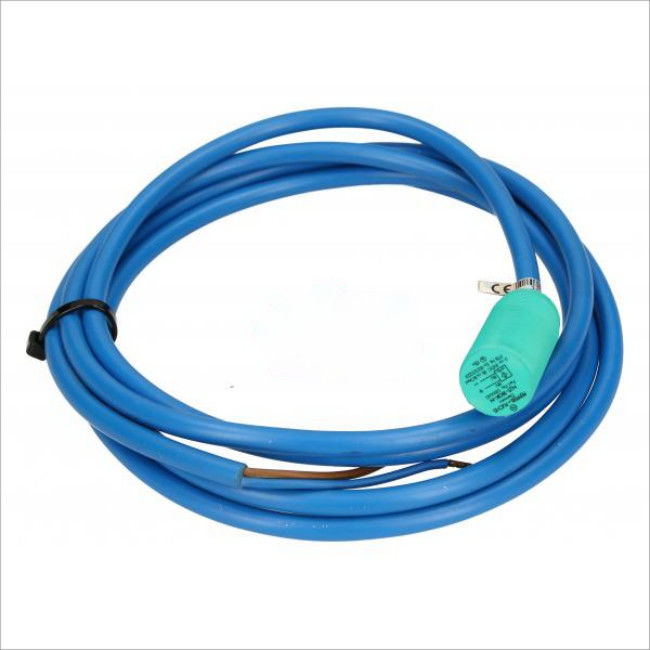

5mm P+F Sensors Inductive Sensor EN 60947 NJ5-18GK-N 2

Tag:

Place of Origin:	Germany
Brand Name:	P+F
Certification:	CE
Model Number:	NJ5-18GK-N

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Rated Operating Distance:	5 Mm	Safety Integrity Level (SIL):	SIL 2
Mission Time (TM):	20 A	Standards:	EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
Marine Approval:	DNVGL TAA00001A5	Connection Type:	Cable
Ambient Temperature:	-25 ... 100 °C (-13 ... 212 °F)	Degree Of Protection:	IP66 / IP68
Highlight:	5mm P+F Sensors , P+F Sensors EN 60947 , NJ5-18GK-N
