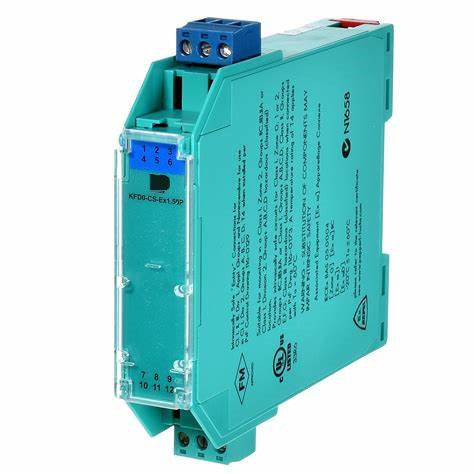

20mA 24VDC P+F Repeater KFD0-CS-Ex1.50P

20mA 24VDC P+F Repeater KFD0-CS-Ex1.50P

Product Details:

Place of Origin: Germany
Brand Name: P+F
Certification: BAS 98 ATEX 7343 X
Model Number: KFD0-CS-Ex1.50P

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Get Best Price Contact Now

Detail Information

Signal Type: Analog Input/analog Output Systematic Capability (SC): SC 3
Safety Integrity Level (SIL): SIL 2 Degree Of Protection: IEC 60529:2001
Accuracy: 0.1 % Electromagnetic Compatibility: NE 21:2012 EN 61326-3-2:2008
Ambient Temperature: -20 ... 70 °C (-4 ... 158 °F) Dimensions: 20 X 107 X 115 Mm (0.8 X 4.2 X 4.5 Inch) (W X H X D) , Housing Type B1
Highlight:

20mA P+F Repeater

,

24VDC P+F Repeater

,

KFD0-CS-Ex1.50P

Product Description

Repeater KFD0-CS-Ex1.50P



1-channel isolated barrier, 24 V DC supply (loop powered), Current input/output 4 mA ... 20 mA, transmitter power supply, Accuracy 0.1 %, Reverse polarity protection, Up to SIL 2 (SC 3) acc. to IEC/EN 61508, Housing width: 20 mm, Number of channels: 1-channel, Transfer direction: to the field / to the control system, Reverse polarity protection, Safety Integrity Level (SIL): SIL 2, Systematic capability (SC): SC 3, Rated voltage: 5 ... 35 V DC , loop powered, Signal: 1 x 4 ... 20 mA



Technical Data

General specifications

Signal type

Analog input/analog output

Functional safety related parameters

Safety Integrity Level (SIL)

SIL 2

Systematic capability (SC)

SC 3

Supply

Rated voltage

5 ... 35 V DC , loop powered

Control circuit

Connection

terminals 12-, 11+

Voltage

5 ... 35 V DC

Current

4 ... 20 mA

Power dissipation

at 20 mA and Uin < 24.3 V: < 250 mW per channel
at 20 mA and Uin > 24.3 V: < 500 mW per channel

Field circuit

Connection

terminals 1+, 2-

Voltage

for 5V < Uin < 24.3V: ≥ 0.9 x Uin - (0.37 x current in mA) - 1.0
for Uin > 24.3 V: ≥ 21 V - (0.36 x current in mA)

Short-circuit current

at Uin > 24.3 V : ≤ 65 mA

Transfer current

≤ 40 mA

Transfer characteristics

Accuracy

0.1 %

Deviation





After calibration

≤ ± 20 µA; incl. calibration, linearity, hysteresis and load fluctuations at the field side up to a load of 1 kΩ at 20 °C (68 °F)



Influence of ambient temperature

≤ ± 2 µA/K at Uin ≤ 20 V; ≤ ± 5 µA/K at Uin > 20 V

Rise time

≤ 5 ms at bounce from 4 ... 20 mA and Uin < 24 V

Galvanic isolation

Field circuit/control circuit

safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V

Indicators/settings

Labeling

space for labeling at the front

Directive conformity

Electromagnetic compatibility





Directive 2014/30/EU

EN 61326-1:2013 (industrial locations)

Conformity

Electromagnetic compatibility

NE 21:2012
EN 61326-3-2:2008

Degree of protection

IEC 60529:2001

Protection against electrical shock

UL 61010-1:2012

Ambient conditions

Ambient temperature

-20 ... 70 °C (-4 ... 158 °F)

Mechanical specifications

Degree of protection

IP20

Connection

screw terminals

Mass

approx. 100 g

Dimensions

20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1



Height

107 mm



Width

20 mm



Depth

115 mm

Mounting

on 35 mm DIN mounting rail acc. to EN 60715:2001

Data for application in connection with hazardous areas

EU-type examination certificate

BAS 98 ATEX 7343 X



Marking

Ex-Hexagon II (1)G [Ex ia Ga] IIC
Ex-Hexagon II (1)D [Ex ia Da] IIIC
Ex-Hexagon I (M1) [Ex ia Ma] I



Voltage

25.2 V



Current

93 mA



Power

585 mW

Control circuit





Maximum safe voltage

250 V eff (Attention! The rated voltage can be lower.)

Field circuit





Maximum safe voltage

250 V eff (Attention! The rated voltage can be lower.)

Certificate

FIDI 22 ATEX 0001 X



Marking

Ex-Hexagon II 3G Ex ec IIC T4 Gc

Galvanic isolation





Field circuit/control circuit

safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V

Directive conformity





Directive 2014/34/EU

EN IEC 60079-0:2018 , EN 60079-11:2012 , EN IEC 60079-7:2015+A1:2018

International approvals

FM approval





Control drawing

116-0437

UL approval

E106378



Control drawing

116-0438 (cULus)

IECEx approval





IECEx certificate

IECEx BAS 05.0004X
IECEx CML 19.0040X



IECEx marking

[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I
Ex ec IIC T4 Gc
