SIL 3 HART Multiplexer P+F Sensors Slave KFD0-HMS-16

Basic Information

Place of Origin:	Germany
Brand Name:	P+F
Certification:	PF 07 CERT 1143 X
Model Number:	KFD0-HMS-16

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	standard carton packing
Delivery Time:	on request
Payment Terms:	T/T
Supply Ability:	100pcs per month

Contact Now

Leakage Current:

< 3 µA At -20 ... 85 °C (-4 ... 185 °F)

Labeling:

Space For Labeling At The Front

Safety Integrity Level (SIL):

SIL 3

Degree Of Protection:

IEC 60529:2001

Supply Connection:

Via 14-channel Flat Cable Form Master KFD2-HMM-16

Output Resistance:

100 Ω Or Smaller, Capacitive Coupling

Ambient Temperature:

-20 ... 65 °C (-4 ... 149 °F)

Dimensions:

20 X 93 X 115 Mm (0.8 X 3.7 X 4.5 Inch) (W X H X D) , Housing Type B1

Highlight:

SIL 3 P+F Sensors

HART Multiplexer P+F Sensors

KFD0-HMS-16

Multiplexer Slave KFD0-HMS-16

16-channel, No external power required, HART field device input (revision 5 to 7), Used with HART Multiplexer Master KFD2-HMM-16, Up to SIL 3 acc. to IEC/EN 61508

Technical Data

Functional safety related parameters
Safety Integrity Level (SIL)		SIL 3
Supply
Connection		via 14-channel flat cable form master KFD2-HMM-16
HART signal channels (non-intrinsically safe)
Conformity		HART field device input (revision 5 to 7)
Connection		26-pin flat cable for analog connections 14-pin flat cable for master-slave connection between KFD2-HMM-16 and KFD0-HMS-16
Leakage current		< 3 µA at -20 ... 85 °C (-4 ... 185 °F)
Terminating resistor		external 230 ... 500 Ω standard (up to 1000 Ω possible)
Output voltage		≥ 400 mV ss (with the terminator resistance specified above)
Output resistance		100 Ω or smaller, capacitive coupling
Input impedance		according to HART specification
Input voltage range		0.08 ... 4 V ss ; typ. ± 5.2 V as local reference
Indicators/settings
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Conformity
Degree of protection		IEC 60529:2001
Ambient conditions
Ambient temperature		-20 ... 65 °C (-4 ... 149 °F)
Mechanical specifications
Degree of protection		IP20
Mass		approx. 100 g
Dimensions		20 x 93 x 115 mm (0.8 x 3.7 x 4.5 inch) (W x H x D) , housing type B1
	Height	93 mm
	Width	20 mm
	Depth	115 mm
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
Certificate		PF 07 CERT 1143 X
	Marking	II 3G Ex nA IIC T4 Gc
Directive conformity
	Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-15:2010

Related Models:

KCD2-SCD-EX1	KFU8-UFT
KCD2-STC-EX1.20	K-HM26-2M-261533
KFD2-SR2-Ex1.W.LB	NBB15-U1-E2
KFD2-SR2-2.W.SM	NBB1,5-5GM25-E2
KFD2-SR2-Ex2.W.SM	NBB1,5-5GM25-E2-V3
KFD2-SR2-Ex2.2S	NBB1,5-F79-E0
KFD2-SR2-2.2S	NBB1,5-F79-E2
KFA6-DWB-EX1.D	NBB15-U1-Z2
KFA6-SR2-Ex2.W	NBB5-18GM50-E2-V1
KFA6-SR-2.3L.FA	NBB15-30GM30-E2-V1
KFA6-ER-1.5	NBB15-30GM50-A2-V1
KFA6-ER-1.6	NBB15-30GM50-E2
KFA6-ER-1.W.LB	NBB15-30GM50-E2-M
KFA6-ER-2.W.LB	NBB15-30GM50-E2-V1
KFA6-ER-Ex1.W.LB	NBB15-30GM50-E2-V1-M
KFA6-SR-2.3L.FA	NBB8-18GM30-E2
KFA6-STR-1.24.4	NBB8-18GM30-E2-V1
KFD0-CS-Ex1.50P	NBB8-18GM60-A2-V1
KFD2-SH-Ex1.T.OP	NJ4-12GK-SN
KFD2-SL2-EX2.B	NJ5-18GK-N
KFD2-SR2-EX1.W	NJ5-18GK-N-150
KFD2-SR2-Ex2.W	NJ5-18GM-N
KFD2-STC5-1.2O	NJ8-18GK-N
KFD2-STC5-Ex1	RD0-FB-EX4
KFD2-STC5-Ex1.H	RD0-TI-Ex8.FF.*
HIC2031	Z787.F

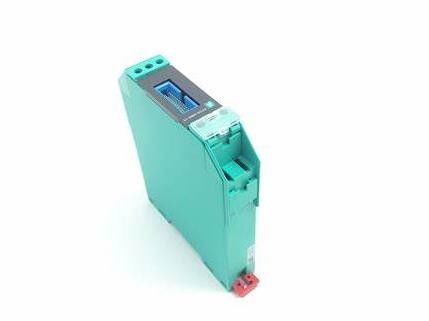

SIL 3 HART Multiplexer P+F Sensors Slave KFD0-HMS-16 1
