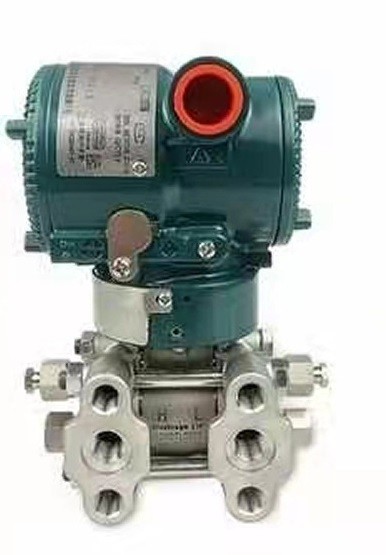

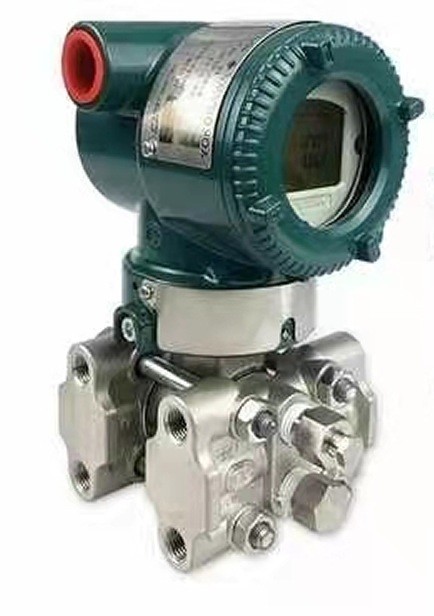

EJA110E YOKOGAWA Transmitter Differential Pressure transducer EJA110E-JFS5J-917NB

  • EJA110E YOKOGAWA Transmitter Differential Pressure transducer EJA110E-JFS5J-917NB
  • EJA110E YOKOGAWA Transmitter Differential Pressure transducer EJA110E-JFS5J-917NB
  • EJA110E YOKOGAWA Transmitter Differential Pressure transducer EJA110E-JFS5J-917NB
Place of Origin Japan
Brand Name YOKOGAWA
Certification CE
Model Number EJA110E-JFS5J-917NB
Minimum Order Quantity 1pc
Price negotiable
Packaging Details standard carton packing
Delivery Time on request
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Signal 4 To 20 MA DC With Digital Communication (HART 5/HART 7 Protocol) Measurement Span (capsule) 0.5 To 5 KPa (2.0 To 20 InH2O) (For Wetted Parts Material Code S)
Process Connections Without Process Connector (1/4 NPT Female On The Cover Flanges) Bolts And Nuts Material B7 Carbon Steel
Installation Horizontal Piping And Left Side High Pressure Amplifier Housing Cast Aluminum Alloy
Electrical Connection 1/2 NPT Female, Two Electrical Connections And A Blind Plug Mounting Bracket 304 SST 2-inch Pipe Mounting, Flat Type (for Horizontal Piping)
Highlight

EJA110E YOKOGAWA Transmitter

,

CE YOKOGAWA Transmitter

,

EJA110E differential pressure transducer
Leave a Message
Product Description



EJA110E Differential Pressure Transmitter EJA110E-JFS5J-917NB

Specification Conformance

EJA-E series ensures specification conformance to at least ±3σ .

Reference Accuracy of Calibrated Span

(includes terminal-based linearity, hysteresis, and repeatability)



Measurement span F
Reference accuracy X ≤ span ±0.055% of Span
X > span ±(0.005+0.02 URL/span)% of Span
X 2 kPa (8 inH2O)

URL

(upper range limit)

 5 kPa (20 inH2O)



Measurement span M
Reference accuracy X ≤ span ±0.055% of Span
X > span ±(0.005+0.0025 URL/span)% of Span
X 5 kPa (20 inH2O)

URL

(upper range limit)

 100 kPa (400 inH2O)



Measurement span H
Reference accuracy X ≤ span ±0.055% of Span
X > span ±(0.005+0.01 URL/span)% of Span
X 100 kPa (400 inH2O)

URL

(upper range limit)

 500 kPa (2000 inH2O)



Measurement span V
Reference accuracy X ≤ span ±0.055% of Span
X > span ±(0.005+0.005 URL/span)% of Span
X 1.4 MPa (200 psi)

URL

(upper range limit)

 14 MPa (2000 psi)



EJA110E Specification Overview



Measurement Types
Primary Variable Differential Pressure (DP)
Secondary Variable Static Pressure (SP)
Reference Accuracy
Primary Variable ±0.055% of Span
Secondary Variable ±0.5% of Span available
Response Time
Primary Variable 90 msec
Secondary Variable 360 msec
Long Term Stability
Primary Variable ±0.1% of URL per 10 years
Over-pressure Effect
Primary Variable ±0.03% of URL
Rangeability
Primary Variable 100:1
