EJA530E 20mA YOKOGAWA Transmitter In-Line Mount Gauge Pressure Transmitter EJA530E-JBS4N-019EL
Product Details:
| Place of Origin: | Japan |
| Brand Name: | YOKOGAWA |
| Certification: | CE |
| Model Number: | EJA530E-JBS4N-019EL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Output Signal: | 4 To 20 MA DC Output With Digital Communication | Measurement Span (capsule): | 0.02 To 2 MPa (2.9 To 290 Psi) |
|---|---|---|---|
| Process Connections: | 1/2 NPT Female | Amplifier Housing: | Cast Aluminum Alloy |
| Electrical Connection: | M20 Female, Two Electrical Connections With A Blind Plug | Integral Indicator: | Digital Indicator With The Range Setting Switch (push Button) |
| Highlight: | EJA530E YOKOGAWA Transmitter,20mA YOKOGAWA Transmitter,gauge pressure transmitter EJA530E-JBS4N-019EL |
||
Product Description

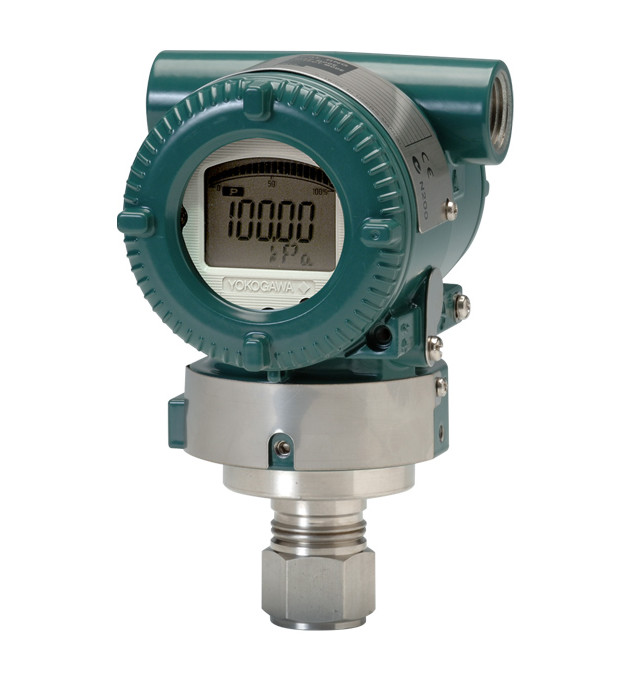

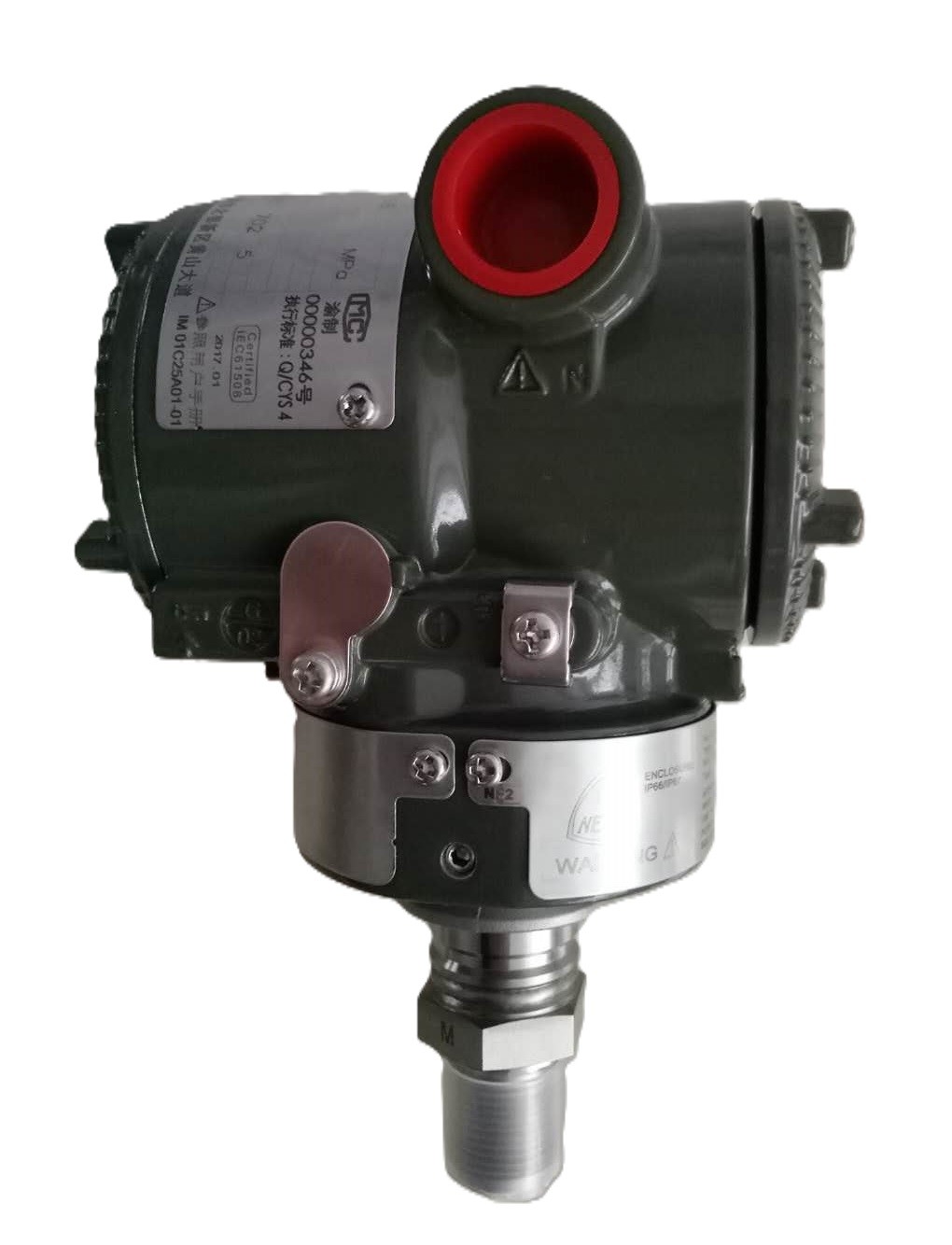

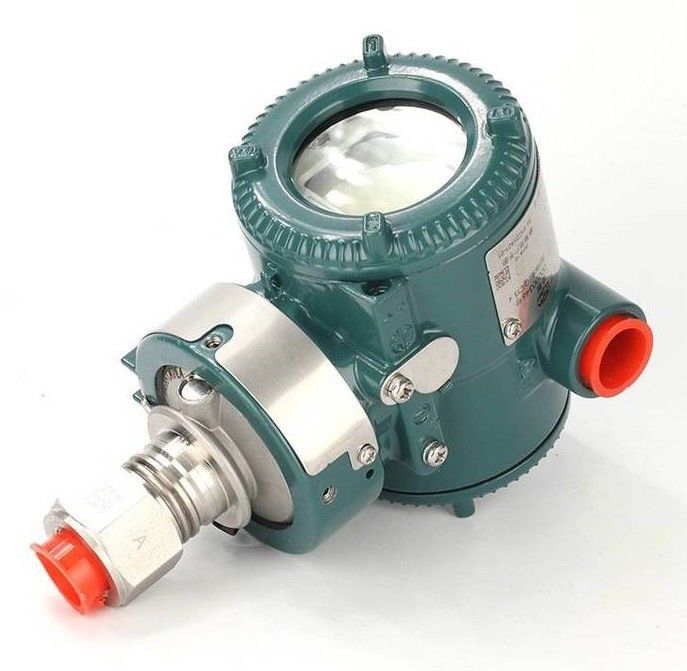

EJA530E In-Line Mount Gauge Pressure Transmitter EJA530E-JBS4N-019EL
The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
The EJA530E is our in-line mount gauge pressure transmitter in the series.
EJA530E's features include:
- Accurately: ±0.055% Accuracy
- Reliably: ±0.1% Stability per 10 years
- Quickly: 90 msec Response Time
Specifications
Refer to the General Specification sheet located under the 'Downloads' tab for detailed specifications.
| Measurement Types | |
|---|---|
| Primary Variable | Gauge Pressure |
| Reference Accuracy | |
| Primary Variable | ±0.055% of Span ±0.04% of Span (/HAC option) |
| Stability (All Normal Operating Conditions) | |
| Primary Variable | ±0.1% of URL per 10 years |
| Response Time | |
| Primary Variable | 90 msec |
| Rangeability | |
| Primary Variable | A capsule 20:1 B, C and D capsules: 100:1 |
| Burst Pressure (Absolute) | |
| EJA510E | A, B, and C Capsules: 4,350 psi (30 MPa) D Capsule: 19,100 psi (132 MPa) |
| Specification Conformance | |
| EJX-A Series | ±3σ |
