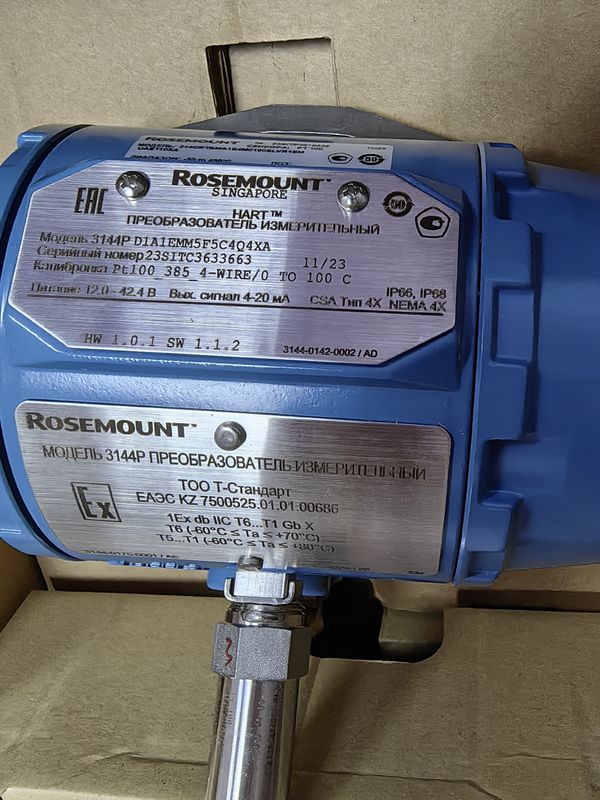

Dual Compartment Rosemount 3144P Temperature Transmitter 3144PD1A1EMM5F5C4Q4XA
Product Details:
| Place of Origin: | SINGAPORE |
| Brand Name: | Rosemount |
| Certification: | CE |
| Model Number: | 3144PD1A1EMM5F5C4Q4XA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Input: | Dual And Single Sensor Capability With Universal Sensor Inputs (RTD, T/C, MV, Ohms) | Output Signal: | 4-20 MA /HART™ Protocol, FOUNDATION™ Fieldbus Protocol |
|---|---|---|---|
| Housing: | Dual-compartment Field Mount | Display/Interface: | Large LCD Display With Percent Range Graph And Buttons/switches |
| Diagnostics: | Basic Diagnostics, Hot Backup™ Capability, Sensor Drift Alert, Thermocouple Degradation, Min/max Tracking | Calibration Options: | Transmitter-sensor Matching (Callendar-Van Dusen Constants), Custom Trim |
| Highlight: | Dual compartment 3144P Temperature Transmitter,20mA 3144P Temperature Transmitter,3144p rosemount transmitter |
||
Product Description

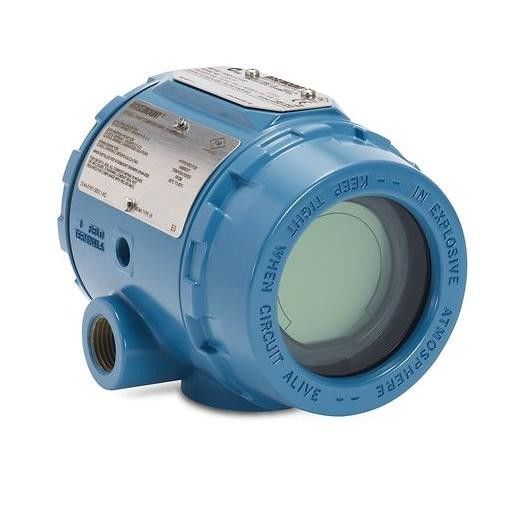

Rosemount 3144P Temperature Transmitter 3144PD1A1EMM5F5C4Q4XA
The Rosemount 3144P Temperature Transmitter provides industry-leading accuracy, stability and reliability for your temperature measurements. It features a dual-compartment housing to ensure reliability and advanced diagnostics to keep your measurement point up and running. When combined with Rosemount X-well™ Technology and the Rosemount 0085 Pipe Clamp sensor, this transmitter can provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration.
Transmitter features include:
■ Temperature measurement assembly with Rosemount X-well Technology (option code PT)
■ Dual and single sensor input capabilities
■ Transmitter-sensor matching (option code C2)
■ Integral transient protector (option code T1)
■ IEC 61508 Safety Certificate of Compliance (option code QT)
■ Advanced sensor and process diagnostics (option codes D01 and DA1)
■ Large, easy to read LCD display (option code M5)
■ “Assemble to Sensor” option (option code XA)
