P+F Female Cordset V1-G-BK10M-PUR-R1 M12 Straight Female Cordset
Product Details:
| Place of Origin: | Germany |
| Brand Name: | P+F |
| Certification: | CE |
| Model Number: | V1-G-BK10M-PUR-R1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Connection: | Socket | Construction Type: | M12 |
|---|---|---|---|
| Style: | Straight | Locking: | Screw Connection |
| Number Of Pins: | 4 | Coding: | A-coded |
| Highlight: | M12 P+F Female cordset,P+F Female cordset,Female cordset V1-G-BK10M-PUR-R1 |
||
Product Description

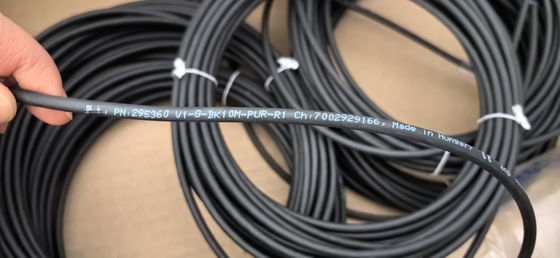

Female cordset V1-G-BK10M-PUR-R1
-
Highly flexible - suitable for robotics
-
Suitable for drag chains and abrasion resistant
-
Suitable for robotic applications / torsion resistant
-
Degree of protection IP68 / IP69
-
Free of paint wetting interfering substances
-
Resistant to microbes and hydrolysis
-
Oil resistant
-
Resistant to salt water
-
UL listed for USA and Canada
-
Halogen-free
-
Specific design protects against loosening and inaccurate installation

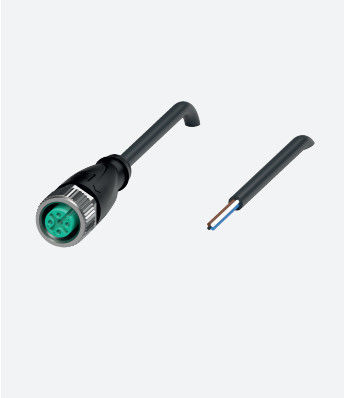

Female cordset single-ended M12 straight A-coded 4-pin, PUR cable black, UL approved, drag chain suitable, torsion resistant, oil and salt water resistant, robotics.
Dimensions
|
General specifications |
||
|---|---|---|
|
Connector 1 |
|
|
|
|
Connection |
socket |
|
|
Construction type |
M12 |
|
|
Style |
straight |
|
|
Locking |
screw connection |
|
|
Number of pins |
4 |
|
|
Coding |
A-coded |
|
Connector 2 |
|
|
|
|
Connection |
cable end |
|
Electrical specifications |
||
|
Operating voltage |
max. 250 V AC/DC |
|
|
Operating current |
max. 4 A |
|
|
Conformity |
||
|
Degree of protection |
EN 60529 |
|
|
Plug connection |
connector M12 x 1 : IEC 61076-2-101 |
|
|
Flammability |
UL 758 / 1581 |
|
|
Halogen-free |
DIN VDE 0472-815 |
|
|
Microbial resistance |
DIN EN 50525-2-21 / DIN VDE 0282-10 |
|
|
Hydrolysis resistance |
DIN EN 50525-2-21 |
|
|
Oil resistance |
DIN EN 60811-2-1 |
|
|
Approvals and certificates |
||
|
UL approval |
AWM STYLE 20549 80 °C 300V AWM I A/B 80 °C 300V FT2 (cable) |
|
|
UL File Number |
E231213 |
|
|
Ambient conditions |
||
|
Ambient temperature |
|
|
|
|
Plug connector |
-40 ... 90 °C (-40 ... 194 °F) |
|
|
Cable, fixed |
-40 ... 80 °C (-40 ... 176 °F) |
|
|
Cable, flexing |
-25 ... 80 °C (-13 ... 176 °F) |
|
Pollution degree |
3 |
|
|
Mechanical specifications |
||
|
Plug connector |
|
|
|
|
Tightening torque |
0.6 Nm |
|
|
Loosening protection |
available |
|
|
Tool installation |
straight knurling and hexagon nut SW = 14 mm |
|
|
Mating cycles |
min. 100 |
|
Degree of protection |
IP68 / IP69 |
|
|
Cable |
according to IEC/EN 60228 (DIN VDE 0295) class 6 |
|
|
|
Sheath diameter |
4.3 mm |
|
|
Bending radius |
> 10 x cable diameter, moving |
|
|
Sheath stripping force |
max. 50 N / 300 mm |
|
|
Sheath color |
black (similar to RAL 7021) |
|
|
Number of cores |
4 |
|
|
Core cross section |
0.34 mm2 |
|
|
Cores color |
Core 1: brown |
|
|
Core construction |
42 x 0.1 mm ∅ |
|
|
Length |
10 m |
|
|
Cable code |
Li 9Y 11YM 4 x 0.34 |
|
Drag chain suitability |
|
|
|
|
Drag chain cycles |
min. 10000000 |
|
|
Motion velocity |
max. 3 m/s |
|
|
Traverse distance |
max. 10 m |
|
|
Acceleration |
max. 10 m/s2 |
|
|
Torsion cycles |
min. 10000000 |
|
|
Torsional stress |
± 360 °/m |
|
Material |
||
|
PWIS free |
yes |
|
|
Halogen-free |
yes |
|
|
Plug connector |
|
|
|
|
Screw connection |
Zinc diecast, nickel-plated |
|
|
Body |
TPU, black |
|
|
Seal |
FKM |
|
|
Contact surface |
gold plated (Au) |
|
|
Flammability |
V-2 |
|
Cable |
|
|
|
|
Sheathing |
PUR based on polyether |
|
|
Core insulation |
PP |
|
|
Salt water resistance |
yes |
|
|
Oil resistance |
yes |
|
|
Microbial resistance |
yes |
|
|
Hydrolysis resistance |
yes |
|
|
Flammability |
FT2 |
