Endress+Hauser Radar Measurement Micropilot FMR60 with Antenna Drip-off and 4-20mA HART Output
| Place of Origin | Germany |
|---|---|
| Brand Name | Endress+Hauser |
| Certification | CE |
| Model Number | FMR60-X5D4/0 |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | 12-14weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Approval | IECEx Ia IIC T6 Ga/Gb | Power Supply; Output | 2-wire; 4-20mA HART |
|---|---|---|---|
| Display, Operation | SD02 4-line, Push Buttons + Data Backup Function | Housing | GT20 Dual Compartment, Alu, Coated |
| Electrical Connection | Gland M20, IP66/68 NEMA4X/6P | Antenna | Drip-off, PTFE 50mm/2" |
| Seal | FKM Viton GLT, -40...130oC/-40...266oF | Process Connection | Thread ISO228 G1-1/2, 316L |
| Additional Operation | English | Country Of Origin | DE |
| Highlight | FMR60 Radar Measurement Micropilot,Endress Hauser Radar Measurement Micropilot,Endress Hauser FMR60 Micropilot |
||
Product Description

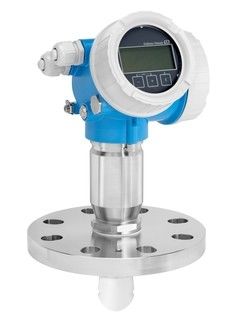

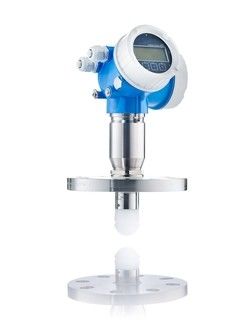

Endress+Hauser Radar measurement Micropilot FMR60
Micropilot FMR60 is the first 80GHz radar developed according to the international functional safety directive IEC 61508. The free space radar offers maximum reliability due to the drip-off antenna, improved algorithms and small beam angle. It is used for continuous non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. It also possesses the smart sensor functionality Heartbeat Technology.
80GHz drip-off antenna suited for free space applications up to 50m and offers high beam focusing for vessels with many internal fittings.
-
Process connections: Threads or flanges
-
Temperature: –40 to +130°C (–40 to +266°F)
-
Pressure: –1 to +16bar (–14.5 to +232psi)
-
Maximum measuring range: 50m (164ft)
-
Accuracy: ±1mm (0.04in)
-
W-band: 80GHz
-
International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol
|
Measuring principle |
Level radar |
|
Characteristic / Application |
For basic level measurement in liquids, pastes and slurries; |
|
Specialities |
Heartbeat Technology, |
|
Supply / Communication |
|
|
Frequency |
|
|
Accuracy |
+/- 1 mm (0.04 in) |
|
Ambient temperature |
|
|
Process temperature |
-40…+130 °C |
|
Process pressure / max. overpressure limit |
Vacuum …16 bar |
|
Main wetted parts |
PTFE antenna |
|
Process connection |
Thread: |
|
Max. measurement distance |
50 m (164 ft) |
|
Communication |
4…20 mA HART, |
|
Certificates / Approvals |
ATEX, FM, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, KC, EAC, UK Ex |
|
Safety approvals |
Overfill protection WHG |
|
Design approvals |
EN 10204-3.1 |
|
Options |
Display, |
|
Application limits |
|
