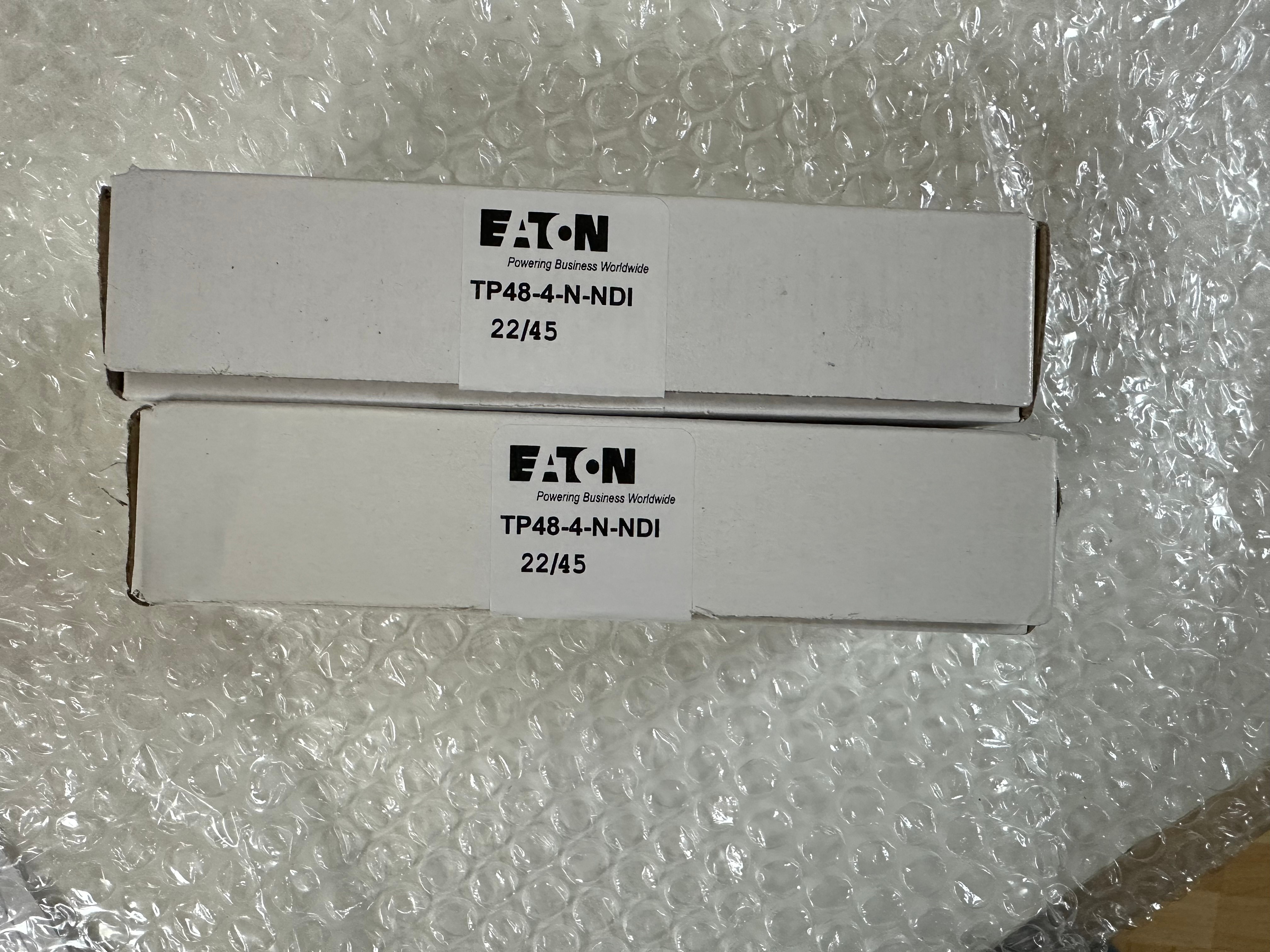

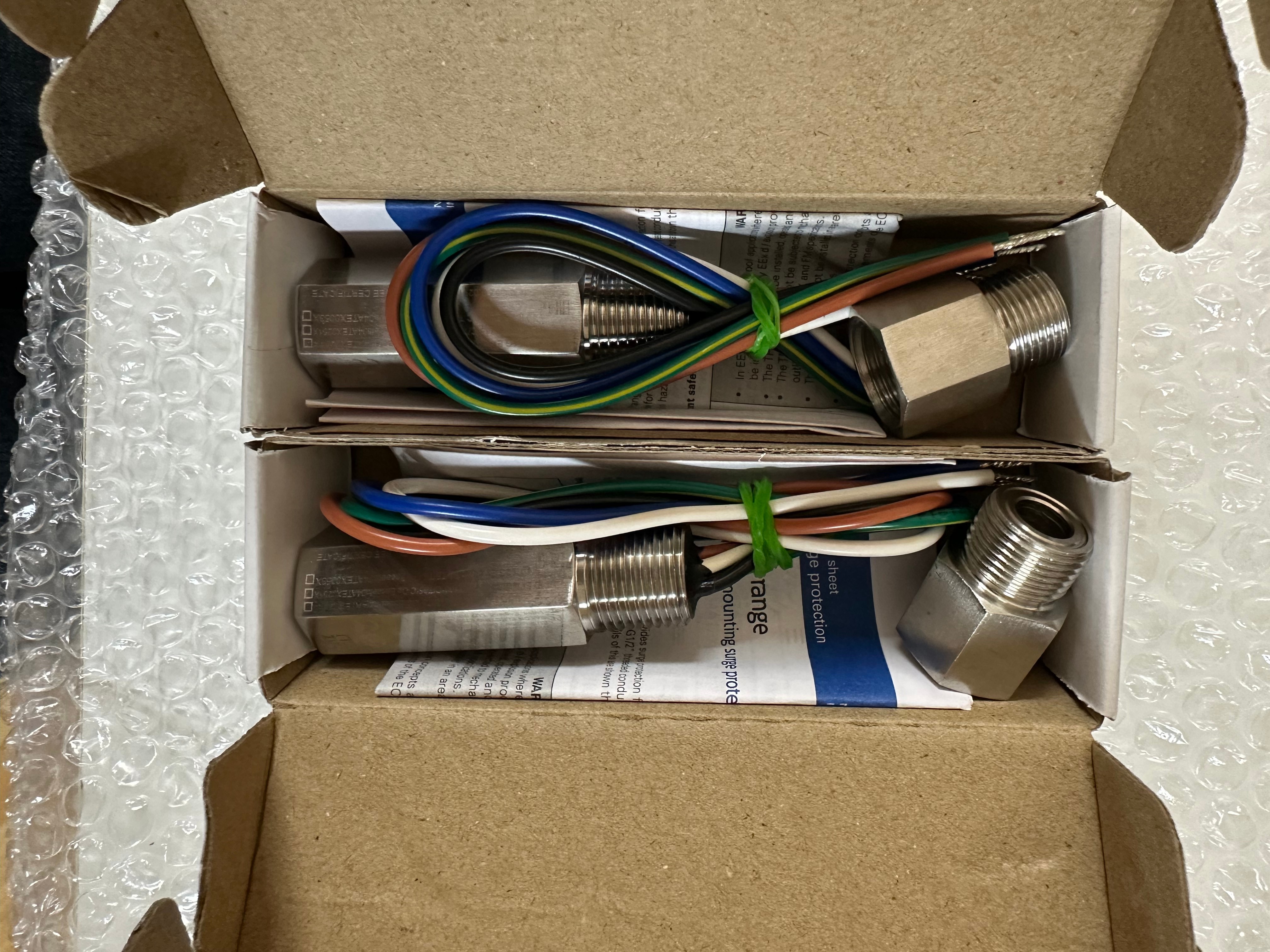

MTL Isolated Safety Barrier TP48-4-N-NDI With No Resistance

MTL Isolated Safety Barrier TP48-4-N-NDI With No Resistance
MTL Isolated Safety Barrier TP48-4-N-NDI With No Resistance MTL Isolated Safety Barrier TP48-4-N-NDI With No Resistance MTL Isolated Safety Barrier TP48-4-N-NDI With No Resistance MTL Isolated Safety Barrier TP48-4-N-NDI With No Resistance
Basic Information
Place of Origin: England
Brand Name: MTL
Certification: CE
Model Number: TP48-4-N-NDI
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: standard carton packing
Delivery Time: on request
Supply Ability: 100pcs per month
Contact Now
Maximum Surge Current: 20kA Peak Current (8/20µs Waveform) Leakage Current: Less Than 1µA At Max. Working Voltage
Working Voltage: 35V Dc Maximum Bandwidth: 1MHz
Resistance: No Resistance Introduced Into Loop Weight: 175g. (6.2oz.)
Highlight:

TP48-4-N-NDI MTL Safety Barrier

,

TP48-4-N-NDI Safety Barrier

,

MTL Isolated Safety Barrier

MTL Isolated Safety Barrier TP48-4-N-NDI



Safeguards electronic process transmitters against induced surges and transients from field cabling



• Protects 2, 3 and 4 wire transmitters

• Easy and direct mounting — screws into spare conduit entry

• Intrinsically safe and flameproof to CENELEC standards

• Parallel connection avoids introduction of any resistance into loop

• ATEX approved • 10 year product warranty



The TP48 range of surge protection devices uniquely provide a level of protection for 2, 3 and 4 wire field-mounted transmitters that is far in excess of the optional transient protection facilities available from the transmitter manufacturers - without involving any additional wiring, conduit modifications or other expensive extras.

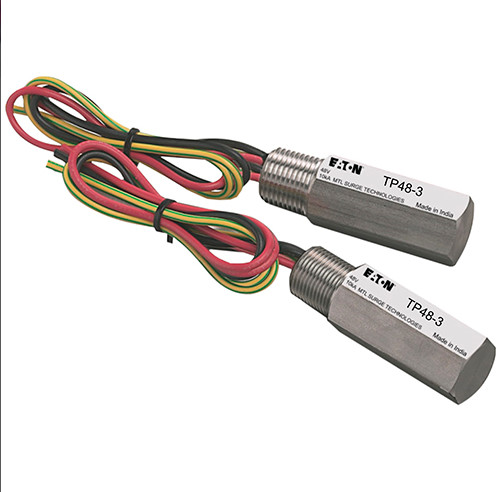

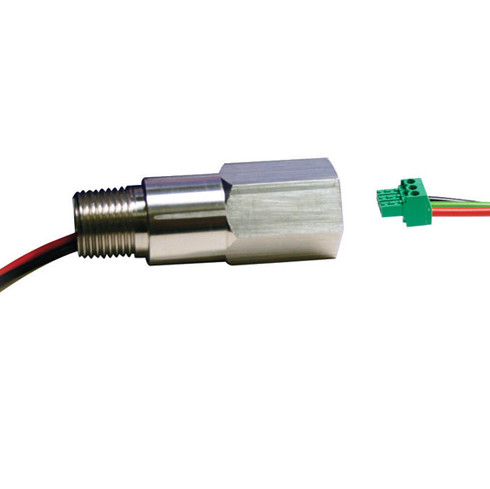

The TP48 range protection network consists of high-power, solidstate electronics and a gas-filled discharge tube capable of diverting 20kA impulses. The whole unit is encased in a 316 stainless steel housing, threaded for the common conduit entries used on process transmitters. Versions are available for 1/2” NPT, 20mm ISO, and G1/2” (BSP 1/2 inch) threaded entries.



TO ORDER SPECIFY



TP48-N

Non-certified SPD - 1/2” NPT thread

TP48-N-NDI

Certified SPD - 1/2” NPT thread

TP48-I

Non-certified SPD - 20mm ISO thread

TP48-I-NDI

Certified SPD - 20mm ISO thread

TP48-G

Non-certified SPD - G 1/2” (BSP 1/2 inch)

TP48-G-NDI

Certified SPD - G 1/2” (BSP 1/2 inch)

TP48-3-N

Non-certified SPD - 1/2” NPT thread

TP48-3-N-NDI

Certified SPD - 1/2” NPT thread

TP48-3-I

Non-certified SPD - 20mm ISO thread

TP48-3-I-NDI

Certified SPD - 20mm ISO thread

TP48-3-G

Non-certified SPD - G 1/2” BSP 1/2 inch

TP48-3-G-NDI

Certified SPD - 20mm ISO thread

TP48-4-N

Non-certified SPD - 1/2” NPT thread

TP48-4-N-NDI

Certified SPD - 1/2” NPT thread

TP48-4-I

Non-certified SPD - 20mm ISO thread

TP48-4-I-NDI

Certified SPD - 20mm ISO thread

TP48-4-G

Non-certified SPD - G 1/2” BSP 1/2 inch

TP48-4-G-NDI

Certified SPD - G 1/2” - BSP 1/2 inch



MTL Isolated Safety Barrier TP48-4-N-NDI With No Resistance 0

MTL Isolated Safety Barrier TP48-4-N-NDI With No Resistance 1
