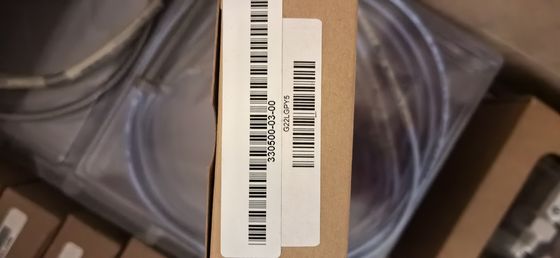

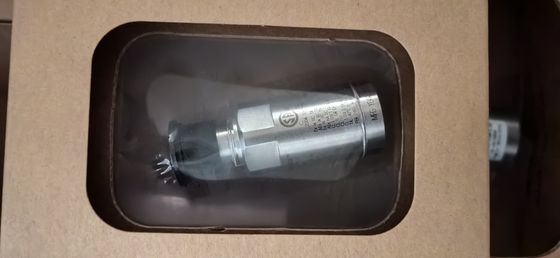

Industrial Grade 3305000-03-00 Bently Nevada Velomitor Piezo-velocity Sensor for Accurate Measurements
| Place of Origin | USA |
|---|---|
| Brand Name | Bently Nevada |
| Certification | CE |
| Model Number | 3305000-03-00 |
| Minimum Order Quantity | 1pc |
| Price | negotiable |
| Packaging Details | standard carton packing |
| Delivery Time | 12-16weeks |
| Payment Terms | T/T |
| Supply Ability | 100pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mounted Resonant Frequency | Greater Than 12 KHz. | Output Bias Voltage | -12 ±3.0 VDC, Over Temperature Referenced To Pin A. |
|---|---|---|---|
| Dynamic Output Impedance | Less Than 2400 Ω | Operating Temperature Range | -55°C To 121°C (-67°F To 250°F) |
| Weight | 142 Grams (5.0 Oz), Typical. | Connector | 2-pin Mil-C-5015 Hermetically-sealed, 316L Stainless Steel Shell. |
| Highlight | Bently Nevada Velomitor Piezo-velocity Sensor,3305000-03-00 Velomitor Piezo-velocity Sensor,Industrial Grade Piezo-velocity Sensor |
||
Product Description

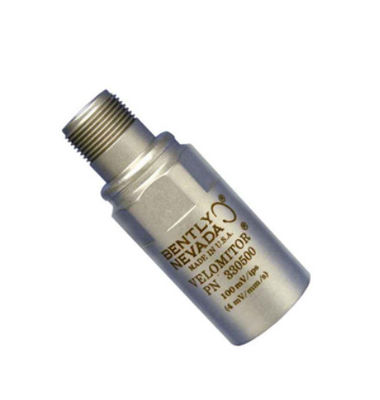

3305000-03-00 Bently Nevada Velomitor Piezo-velocity Sensor
Bently Nevada Velomitor Piezo-velocity Sensors are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration. The 330500 is a specialized piezoelectric accelerometer that incorporates embedded integrated electronics in a solid-state design. Because the 330500 incorporates solid-state electronics and has no moving parts, it does not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.
Ordering Information
Velomitor Piezo-velocity Sensor
330500-AA-BB
| A: Mounting Thread Adaptor Option | |
| 00 | No adapter |
| 01 | 1/2 - 20 UNF |
| 02 | M8 x 1 |
| 03 | 1/4 - 28 UNF |
| 04 | 1/4 - 20 UNC |
| 05 | Unavailable for 330500. |
| Note: For 1/4-18 NPT mounting, order 330525. | |
| 06 | 5/8 – 18 UNF |
| 07 | 3/8 – 16 UNC |
| 08 | 1/2 – 13 UNC |
| B: Agency Approval Option | |
| 00 | Not required |
| 01 | CSA/US/C |
| 02 | ATEX (European) |
| 04 | Multiple approvals (CSA, ATEX) |
Interconnection Cables
Standard Cable Lengths
|
Feet |
Meters (approximate) |
|
6 ft |
1.8 m |
|
8 ft |
2.4 m |
|
10 ft |
3.0 m |
|
12 ft |
3.6 m |
|
15 ft |
4.5 m |
|
17 ft |
5.0 m |
|
20 ft |
6.0 m |
|
25 ft |
7.6 m |
|
30 ft |
9.0 m |
|
33 ft |
10.0 m |
|
50 ft |
15.2 m |
|
99 ft |
30.0 m |
Custom Cable Part Numbers
|
Part Number |
Description |
|
9571-NN |
Two-conductor twisted, shielded 22 AWG cable with two-socket moisture resistant female connector at one end, terminal lugs at the other end. Used with monitors. Not for use with 21128 Velocity Transducer Housing. Min. length: 2.0 ft (0.6 m) Max. length: 99 ft (30 m) |
|
84661-NN |
Two-conductor twisted, shielded 22 AWG armored cable with two-socket moisture-resistant female connector at one end, terminal lugs at the other end. Used with monitors. Not for use with 21128 Velocity Transducer Housing. Min. length: 3.0 ft (0.9 m) Max. length: 96 ft (29 m) |
|
89477-NN |
Two-conductor 18 AWG twisted, shielded cable with right angle two-socket plug at one end, terminal lugs at the other end. Used with monitors and with 21128 Velocity Transducer Housing. Min. length: 2.0 ft (0.6 m) Max. length: 99 ft (30 m) |
|
125065-NN |
Two-conductor 18 AWG twisted, shielded cable with two-socket plug and fluorosilicone elastomer boot at one end, terminal lugs at the other.Used with monitors. Not for use with 21128 Velocity Transducer Housing. Min. length: 2.0 ft (0.6 m) Max. length: 99 ft (30 m) |
