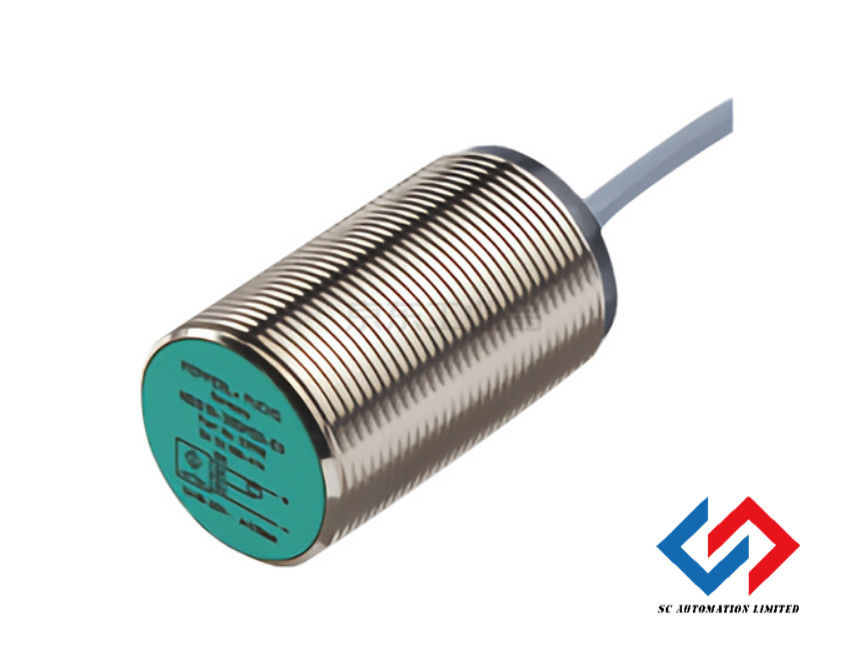

P+F Inductive sensor NJ10-30GM50-E2-3G-3D-5M NO Switching Function Flush Installation

Basic Information
Place of Origin: Czech republic
Brand Name: P+F
Certification: CE
Model Number: NJ10-30GM50-E2-3G-3D-5M
Document: 70126078_eng.pdf
Minimum Order Quantity: 1pc
Price: negotiable

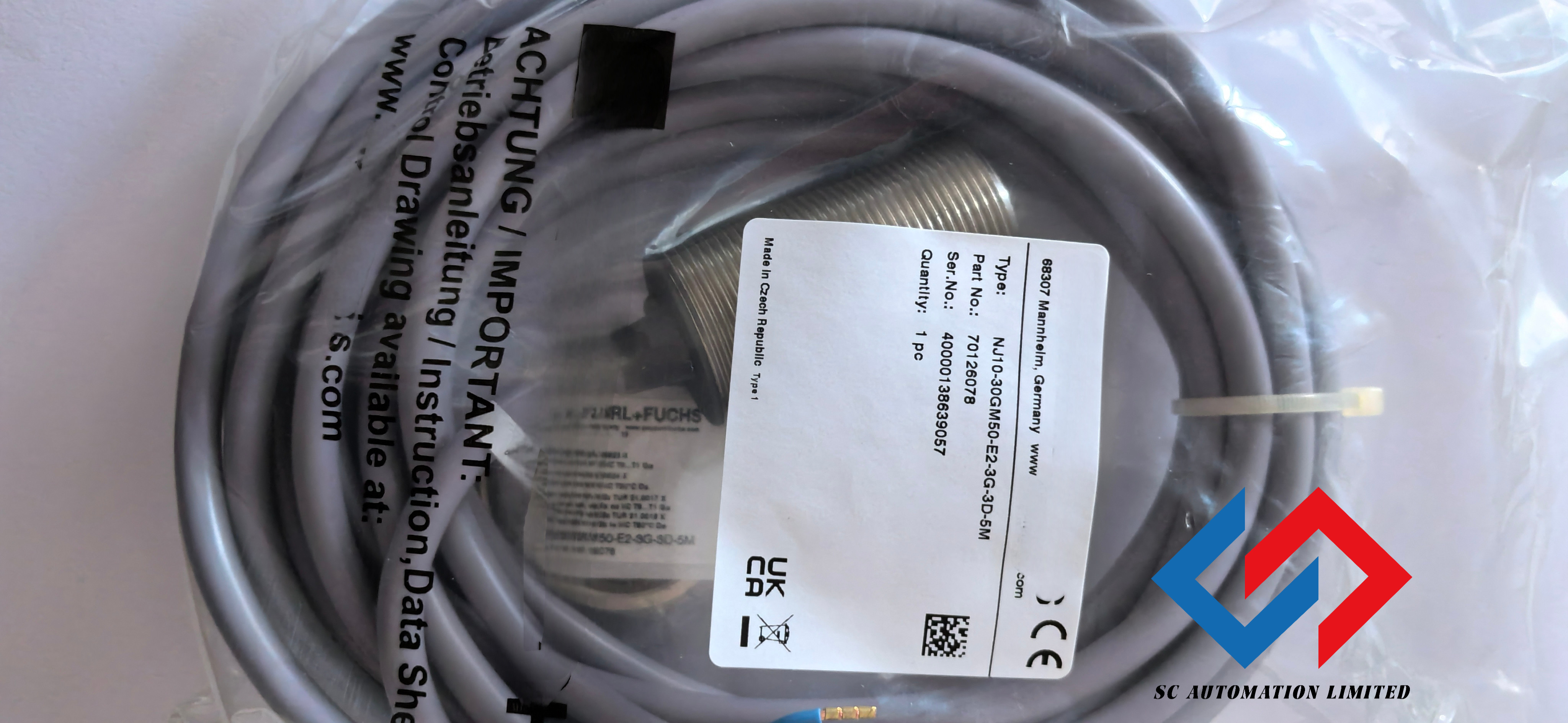

Packaging Details: standard carton packing
Delivery Time: on request
Payment Terms: T/T
Supply Ability: 100pcs per month
Switching Function: Normally Open (NO) Output Type: PNP
Rated Operating Distance: 10 Mm Installation: Flush
Operating Voltage: 10 ... 30 V DC Connection Type: Cable
Highlight:

Flush Installation Inductive sensor

,

NJ10-30GM50-E2-3G-3D-5M Inductive sensor

,

NJ10-30GM50-E2-3G-3D-5M

P+F Inductive sensor NJ10-30GM50-E2-3G-3D-5M


General specifications


Switching function

Normally open (NO)

Output type

PNP

Rated operating distance

10 mm

Installation

flush

Output polarity

DC

Assured operating distance

0 ... 8.1 mm

Actual operating distance

9 ... 11 mm typ. 10 mm

Reduction factor rAl

0.32

Reduction factor rCu

0.3

Reduction factor r304

0.66

Reduction factor rBrass

0.4

Output type

3-wire



Nominal ratings

Operating voltage

10 ... 30 V DC

Switching frequency

0 ... 1300 Hz

Hysteresis

3 ... 15 % typ. 6 %

Reverse polarity protection

reverse polarity protected

Short-circuit protection

pulsing

Voltage drop

≤ 3 V

Voltage drop at IL



Voltage drop IL = 200 mA, switching element on

1 ... 2 V typ. 1.5 V

Operating current

≤ 200 mA

Off-state current

0 ... 0.5 mA typ. 0.01 mA

No-load supply current

≤ 15 mA

Time delay before availability

≤ 100 ms

Switching state indicator

LED, yellow

Compliance with standards and directives

Standard conformity


Standards

EN IEC 60947-5-2

Approvals and certificates

IECEx approval


Equipment protection level Gc (ec)

IECEx TUR 21.0017X

Equipment protection level Dc (tc)

IECEx TUR 21.0018X

ATEX approval


Equipment protection level Gc (ec)

TÜV 20 ATEX 8523 X

Equipment protection level Dc (tc)

TÜV 20 ATEX 8524 X

UL approval

cULus Listed, General Purpose, Class 2 Power Source

CCC approval


Hazardous Location

2024322315005977
2024322315005859

Ambient conditions

Ambient temperature

-25 ... 70 °C (-13 ... 158 °F)

Storage temperature

-40 ... 85 °C (-40 ... 185 °F)

Mechanical specifications

Connection type

cable

Housing material

Stainless steel 1.4305 / AISI 303

Sensing face

PBT

Degree of protection

IP66 / IP67

Cable


Wire end ferrules

yes

Cable diameter

6.4 mm ± 0.2 mm

Bending radius

> 10 x cable diameter

Material

PVC

Color

grey

Number of cores

3

Core cross section

0.75 mm2

Length

5 m

Mass

439 g

Dimensions


Length

50 mm

Diameter

30 mm

General information

Scope of delivery

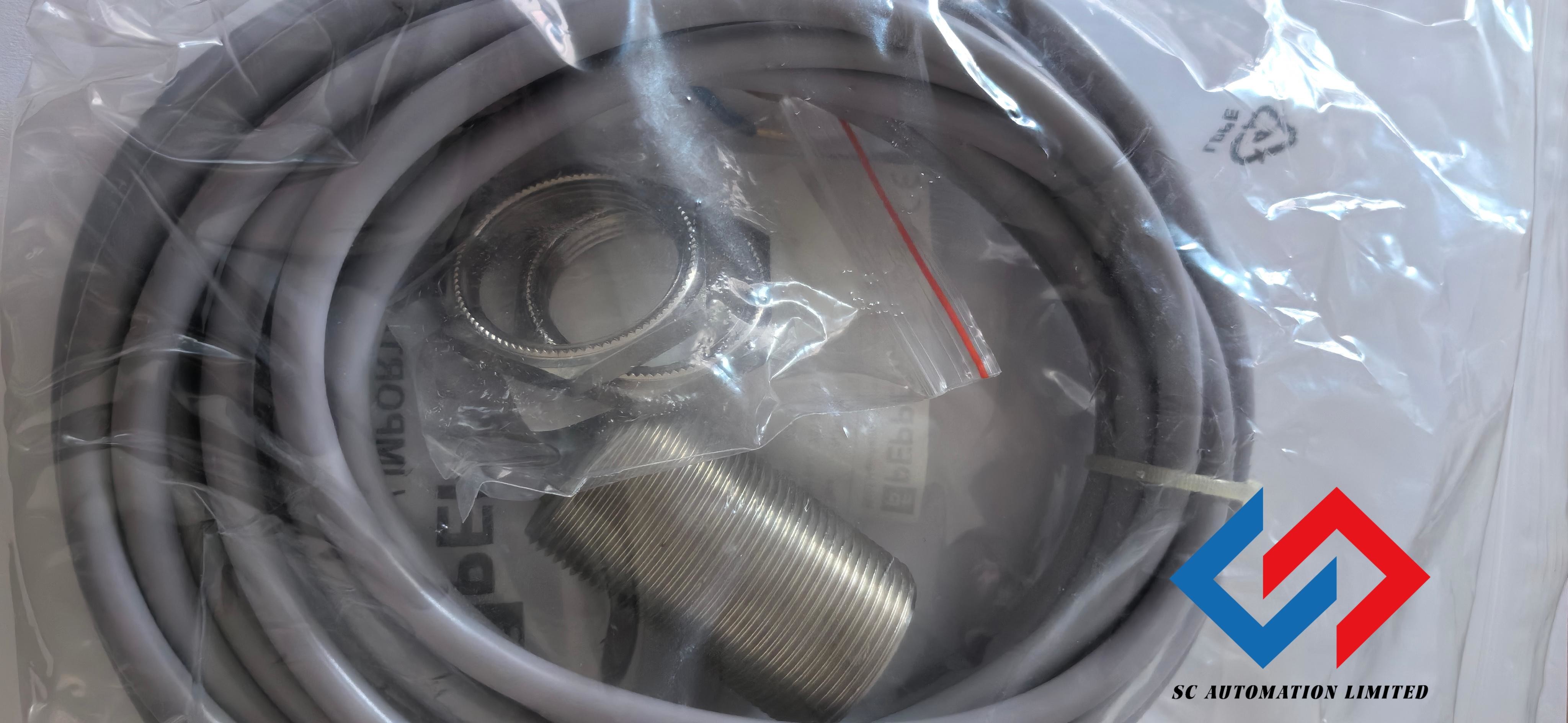

2 self locking nuts in scope of delivery

Use in the hazardous area

see instruction manuals
