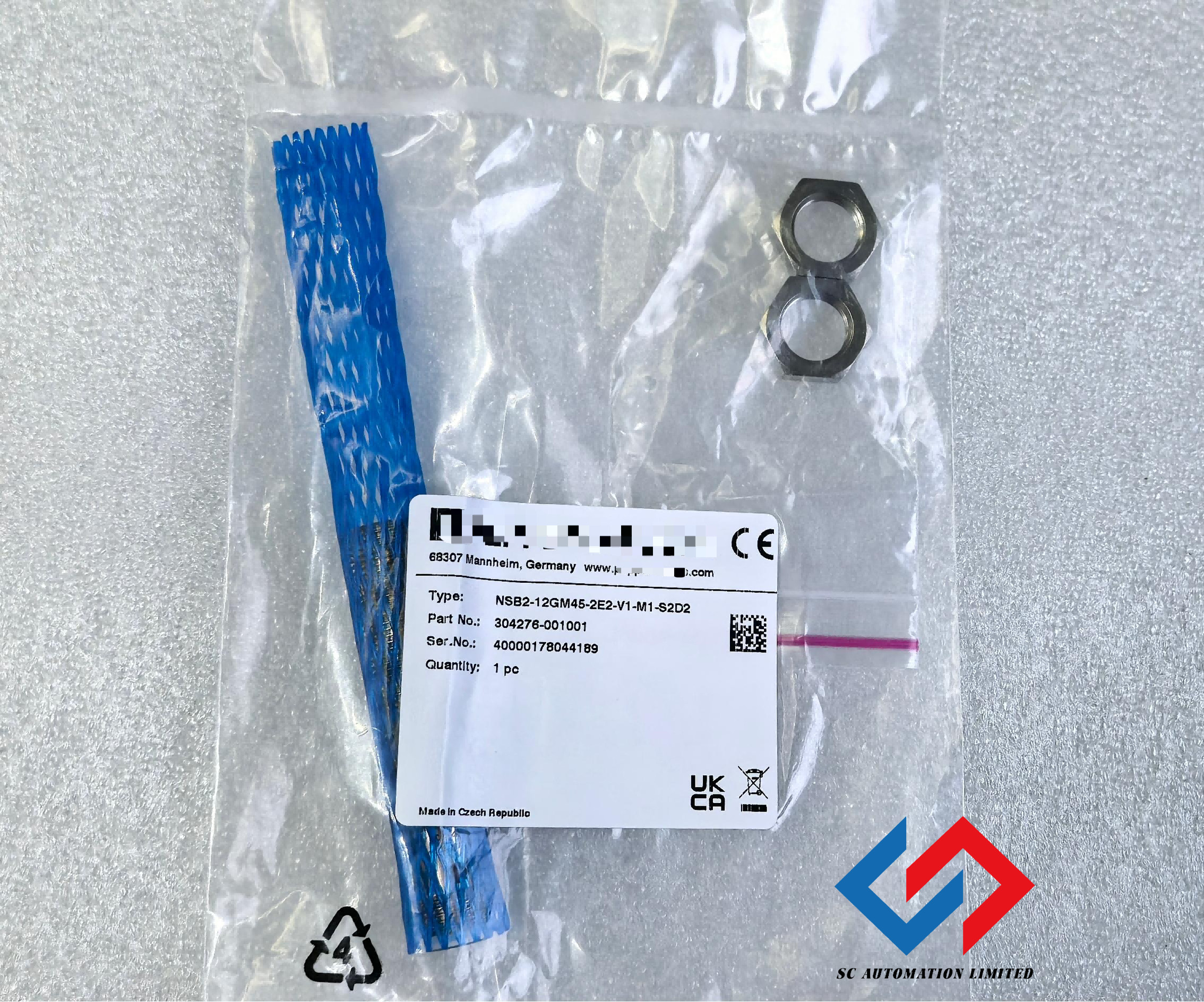

P+F Inductive Sensor NSB2-12GM45-2E2-V1-S2D2 With 18-30V Operating Voltage And PNP Output Type

  • P+F Inductive Sensor NSB2-12GM45-2E2-V1-S2D2 With 18-30V Operating Voltage And PNP Output Type
  • P+F Inductive Sensor NSB2-12GM45-2E2-V1-S2D2 With 18-30V Operating Voltage And PNP Output Type
  • P+F Inductive Sensor NSB2-12GM45-2E2-V1-S2D2 With 18-30V Operating Voltage And PNP Output Type
  • P+F Inductive Sensor NSB2-12GM45-2E2-V1-S2D2 With 18-30V Operating Voltage And PNP Output Type
Place of Origin Germany
Brand Name P+F
Certification CE
Model Number NSB2-12GM45-2E2-V1-S2D2
Document 304276-000003_eng.pdf
Minimum Order Quantity 1pc
Price negotiable

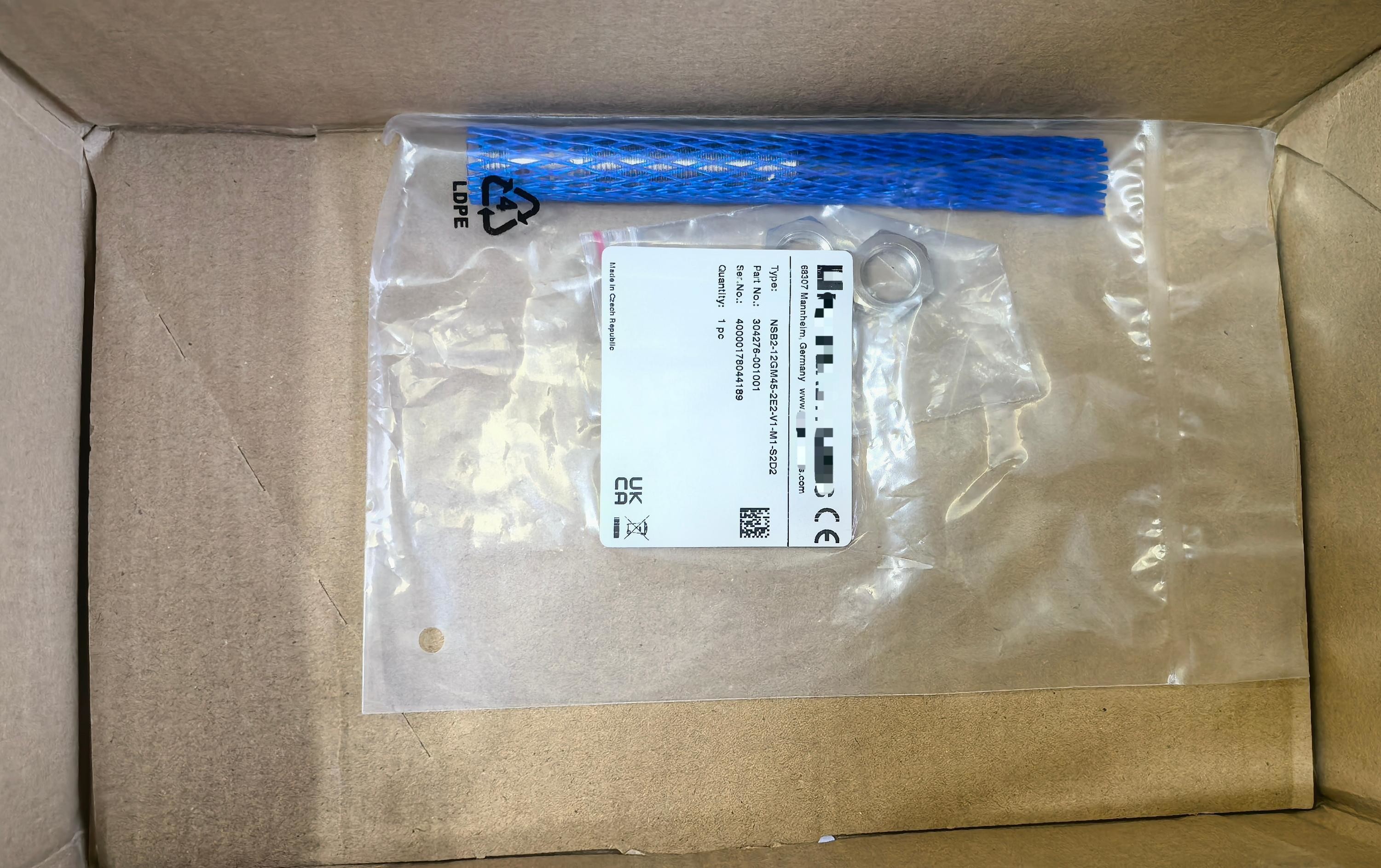

Packaging Details Original packaging
Delivery Time 8-10 weeks
Payment Terms T/T
Supply Ability 100pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Switching Function 2 X Normally Open (NO) Output Type PNP
Installation Flush Operating Voltage 18 ... 30 V
Short-circuit Protection Pulsing Switching State Indicator LED, Yellow
Highlight

P+F Inductive sensor

,

NSB2-12GM45-2E2-V1-S2D2 Inductive sensor

,

NSB2-12GM45-2E2-V1-S2D2
Leave a Message
Product Description

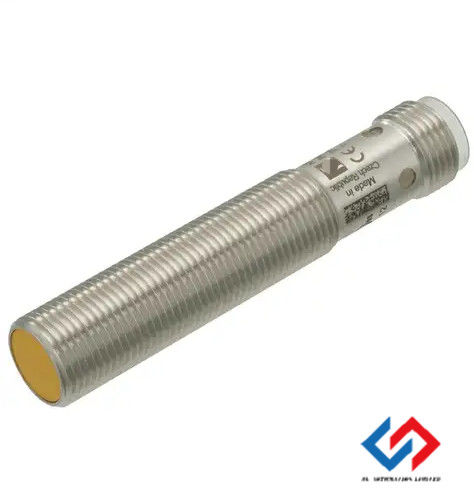

P+F Inductive sensor NSB2-12GM45-2E2-V1-S2D2

The inductive safety sensors are TÜV-certified in accordance with the EU Machinery Directive, Performance Level PLd, Category 2, and SIL2. They are used to safeguard machines and plant components, as well as for reliable position detection in this environment. With their OSSD interface for reliable, redundant shutdown of electronic outputs, they enable easy connection to a safety PLC or fail-safe control interfaces. They can also be operated as standard sensors. The sensors reliably detect standard metal objects in front of the sensor face without coding or similar; there is no blind zone. High characteristic safety values allow longer testing intervals than comparable solutions with a microcontroller. 2 sensors can be connected with 2-channel redundancy and allow PLe as a Category 3 solution.



Technical Data



General specifications
Switching function   2 x normally open (NO)
Output type   PNP
Rated operating distance sn 2 mm
Installation   flush
Output polarity   DC
Assured operating distance sa 0 ... 1.62 mm
Actuating element   Reference target according EN IEC 60947-5-2 (FE360 - ST37K)
12 mm x 12 mm x 1 mm
Reduction factor rAl   0.6
Reduction factor rCu   0.45
Reduction factor r304   0.9
Reduction factor rBrass   0.6
Output type   4-wire
Nominal ratings
Operating voltage UB 18 ... 30 V
Rated operating voltage Ue 24 V
Switching frequency f 0 ... 30 Hz
Hysteresis H typ. 5%
Reverse polarity protection   reverse polarity protected
Short-circuit protection   pulsing
Overload resistance   yes
Voltage drop Ud ≤ 3 V
at IL (sum of all outputs) max. 50 mA
Rated insulation voltage UBIS 30 V
Operating current IL 1 ... 30 mA per output
Off-state current Ir 0 ... 0.5 mA
No-load supply current I0 ≤ 15 mA
Time delay before availability tv ≤ 300 ms
Switching state indicator   LED, yellow
Error indicator   LED, red
Functional safety related parameters
Safety Integrity Level (SIL)   SIL 2
Performance level (PL)   PL d
Category   Cat. 2
MTTFd   > 7500 a
Mission Time (TM)   20 a
Diagnostic Coverage (DC)   min. 60 %
Assured release distance of a PDDB Sar 3 mm



Connection

P+F Inductive Sensor NSB2-12GM45-2E2-V1-S2D2 With 18-30V Operating Voltage And PNP Output Type 0
