P+F Inductive sensor NBN30-U4-A2

Name: P+F NBN30-U4-A2 Inductive Sensor with PNP Output Type 40 mm*40 mm*118 mm Dimensions
Brand: SC Automation Limited
SKU: NBN30-U4-A2
Price: 898.00 USD
Availability: InStock

overview

Sensor head bidirectional and rotatable

30 mm non-flush

4 LEDs indicator for 360° visibility

Dimensions

Technical Data

General specifications
Switching function		complementary
Output type		PNP
Rated operating distance	sn	30 mm
Installation		non-flush
Output polarity		DC
Assured operating distance	sa	0 ... 24.3 mm
Reduction factor rAl		0.33
Reduction factor rCu		0.31
Reduction factor r304		0.74
Reduction factor rBrass		0.38
Output type		4-wire
Nominal ratings
Operating voltage	UB	10 ... 30 V
Switching frequency	f	0 ... 230 Hz
Hysteresis	H	typ. 5 %
Reverse polarity protection		reverse polarity protected
Short-circuit protection		pulsing
Voltage drop	Ud	≤ 2 V
Operating current	IL	0 ... 200 mA
Off-state current	Ir	0 ... 0.5 mA
No-load supply current	I0	≤ 20 mA
Time delay before availability	tv	80 ms
Operating voltage indicator		LED, green
Switching state indicator		LED, yellow
Functional safety related parameters
MTTFd		1230 a
Mission Time (TM)		20 a
Diagnostic Coverage (DC)		0%
Compliance with standards and directives
Standard conformity
Standards		EN IEC 60947-5-2
Approvals and certificates
UL approval		cULus Listed, General Purpose
CCC approval		CCC approval / marking not required for products rated ≤36 V
Ambient conditions
Ambient temperature		-25 ... 85 °C (-13 ... 185 °F)
Mechanical specifications
Connection type		screw terminals
Core cross section		max. 2.5 mm2
Housing material		PA/metal with epoxy powder coating
Sensing face		PA
Housing base		metal
Degree of protection		IP68 / IP69K
Mass		225 g
Dimensions
Height		40 mm
Width		40 mm
Length		118 mm
Note		Tightening torque: 1.8 Nm (housing)

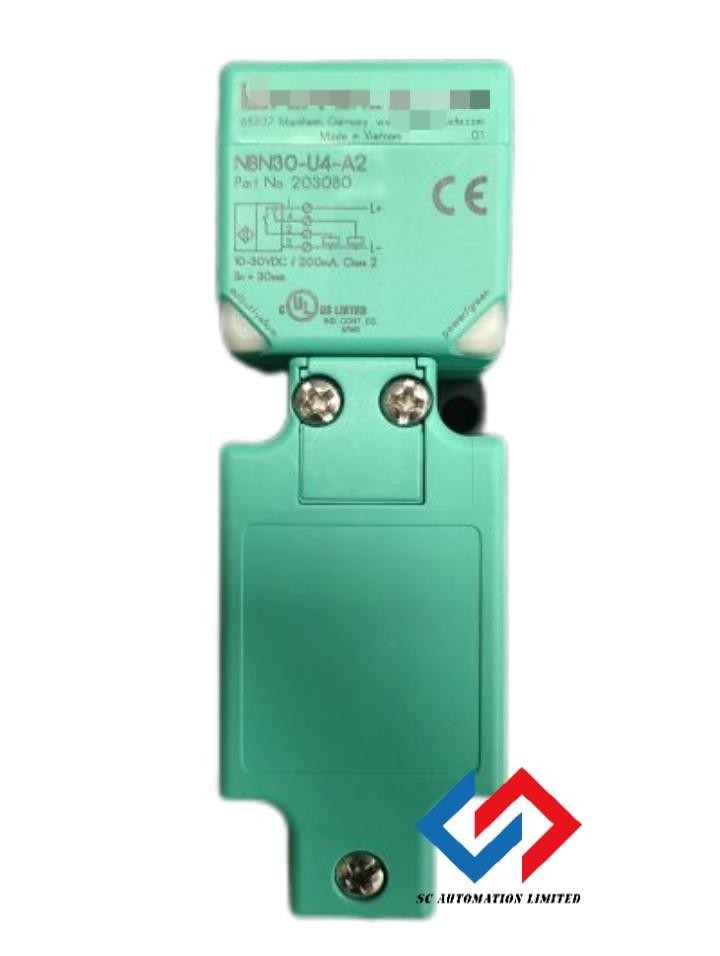

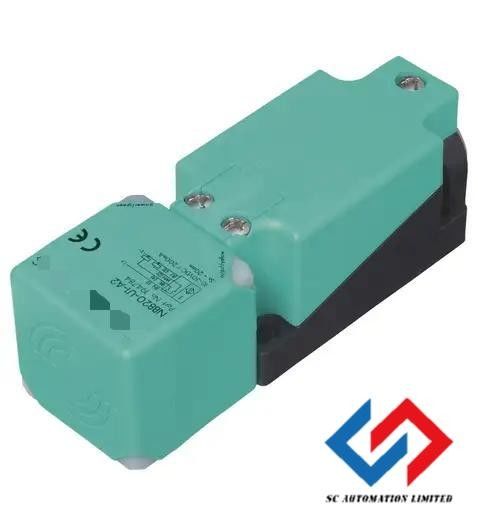

P+F NBN30-U4-A2 Inductive Sensor with PNP Output Type 40 mm*40 mm*118 mm Dimensions 1
