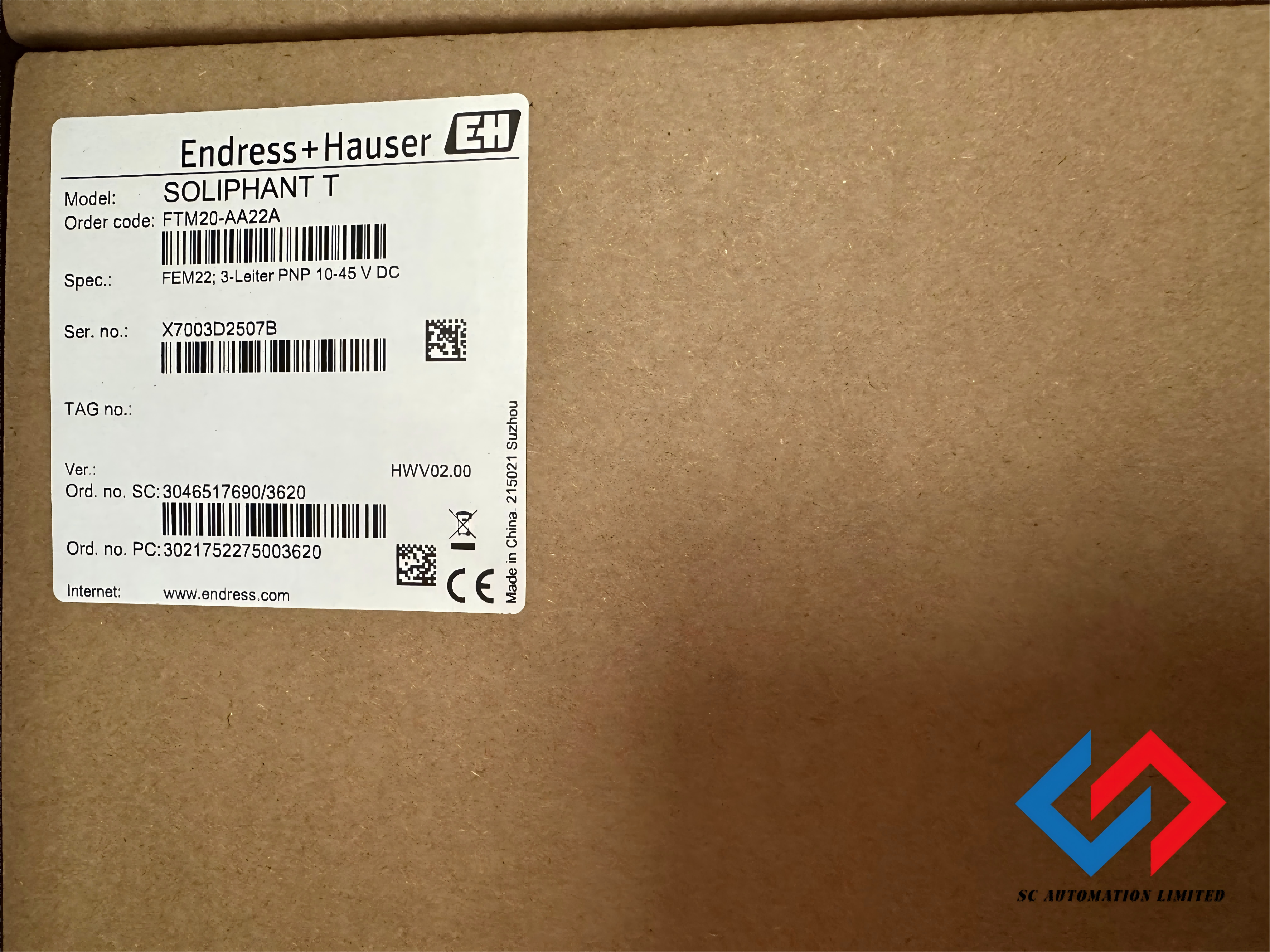

FTM20-AA22A Endress+Hanser Soliphant FTM20 Level Switch

FTM20-AA22A Endress+Hanser Soliphant FTM20 Level Switch
FTM20-AA22A Endress+Hanser Soliphant FTM20 Level Switch FTM20-AA22A Endress+Hanser Soliphant FTM20 Level Switch FTM20-AA22A Endress+Hanser Soliphant FTM20 Level Switch
Basic Information
Place of Origin: DE/CHINA
Brand Name: Endress+Hanser(E+H)
Certification: ATEX
Model Number: FTM20-AA22A
Document: TI00389FEN_1618.pdf
Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: Original packaging
Delivery Time: 8-10 weeks
Payment Terms: T/T
Supply Ability: 100pcs per month
Contact Now Chat Now
Measuring Principle: Vibration Solids Ambient Temperature: -40°C ... 70°C (-40 °F ... 160 °F)
-40°C ... 70°C (-40 °F ... 160 °F): 200 G/l Main Wetted Parts: 316L
Sensor Length: 225 Mm (9") Net Weight: 0.92kg
Highlight:

Endress+Hauser FTM20 level switch

,

FTM20-AA22A liquid level sensor

,

Soliphant FTM20 industrial switch

FTM20-AA22A E+H Soliphant FTM20 Level Switch

Field of application

Soliphant FTM20 is a point level switch for applications with fine-grained or coarse-grained, non-fluidized bulk solids. The various designs means the device has a wide range of applications. Certificates are also available for use in dust and hazardous areas.

Point level switch for fine grained solids

  • Process connections: Threads
  • Temperature: -40 to +150°C (-40 to +300°F)
  • Pressure: -1 to +25bar (-14.5 to +360psi)
  • Sensor material: 316L
  • International explosion protection certificates

Specifications


Measuring principle

 Vibration Solids

Characteristic / Application

 Compact point level switch for fine grained solids
Grain size <= 25 mm (<= 0.98 in)
Single rod
No calibration required
Not affected by build-up or external vibration
Robust
Switch value visible from outside

Supply / Communication

 10 - 45V DC
19 - 253 VAC relay
DC PNP 10 - 45 V

Ambient temperature

 -40°C ... 70°C
(-40 °F ... 160 °F)

Process temperature

 -40°C ... 150°C
(-40°F ... 300°F)

Process pressure / max. overpressure limit

 Vacuum ... 25 bar
(Vacuum ... 360 psi)

Min. density of medium

 200 g/l

Main wetted parts

 316L

Process connection

 Thread
R 1"
R 1 1/2"
1 1/4" NPT
1 1/2" NPT

Sensor length

 225 mm (9")

Communication

 DPDT relay
DC PNP max 350mA

ertificates / Approvals

 ATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, EAC


spare parts & accessories


52025790 52005910 52027693 52004277
52004137 52025688 52025691 71036514
52014472 71040497 71127760 52023313
52023312 52024578 52025090
