ETN MTL5581 isolator safety barrier

Basic Information
Place of Origin: Indonesia
Brand Name: MTL
Certification: CE
Model Number: MTL5581
Document: crouse-hinds-mtl5581-thermo...et.pdf
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Original packaging
Delivery Time: As required
Payment Terms: T/T
Supply Ability: 100pcs per month
Number Of Channels: One Signal Source: Any Dc Millivolt Source
Location Of Millivolt Source: Zone 0, IIC, T4–T6 Hazardous Area If Suitably Certified Div. 1, Group A, Hazardous Location Input And Output Signal Range: 0 To ± 50mV, Overrange To ± 55mV Maximum Lead Resistance 600Ω
Output Resistance: 60Ω Nominal LED Indicator: Green: Power Indication
Highlight:

MTL Safety Barrier isolator

,

ETN MTL5581 safety barrier

,

isolator safety barrier with warranty

ETN MTL5581 isolator safety barrier

Overview


The MTLx581 takes a low-level dc signal from a voltage source in a hazardous area, isolates it, and passes it to a receiving instrument located in the safe area. The module is intended for use with thermocouples utilising external cold-junction compensation. A switch enables or disables the safety drive in the event of thermocouple burnout or cable breakage; a second switch permits the selection of upscale or downscale operation as appropriate.

Specification

Number of channels
One
Signal source
Any dc millivolt source
Location of millivolt source
Zone 0, IIC, T4–T6 hazardous area if suitably certified
Div. 1, Group A, hazardous location
Input and output signal range
0 to ± 50mV, overrange to ± 55mV
Maximum lead resistance 600Ω
Output resistance
60Ω nominal
Transfer accuracy@20°C
Linearity and repeatability < 0.05% of reading or ± 5μV,
whichever is the greater
Temperature drift
< 2μV/°C, maximum
Response time
Settles to within 10% of final value within 150μs
Frequency response
dc to 4kHz nominal
Safety drive on THC burnout
Two switches enable or disable the safety drive and select
upscale or downscale operation

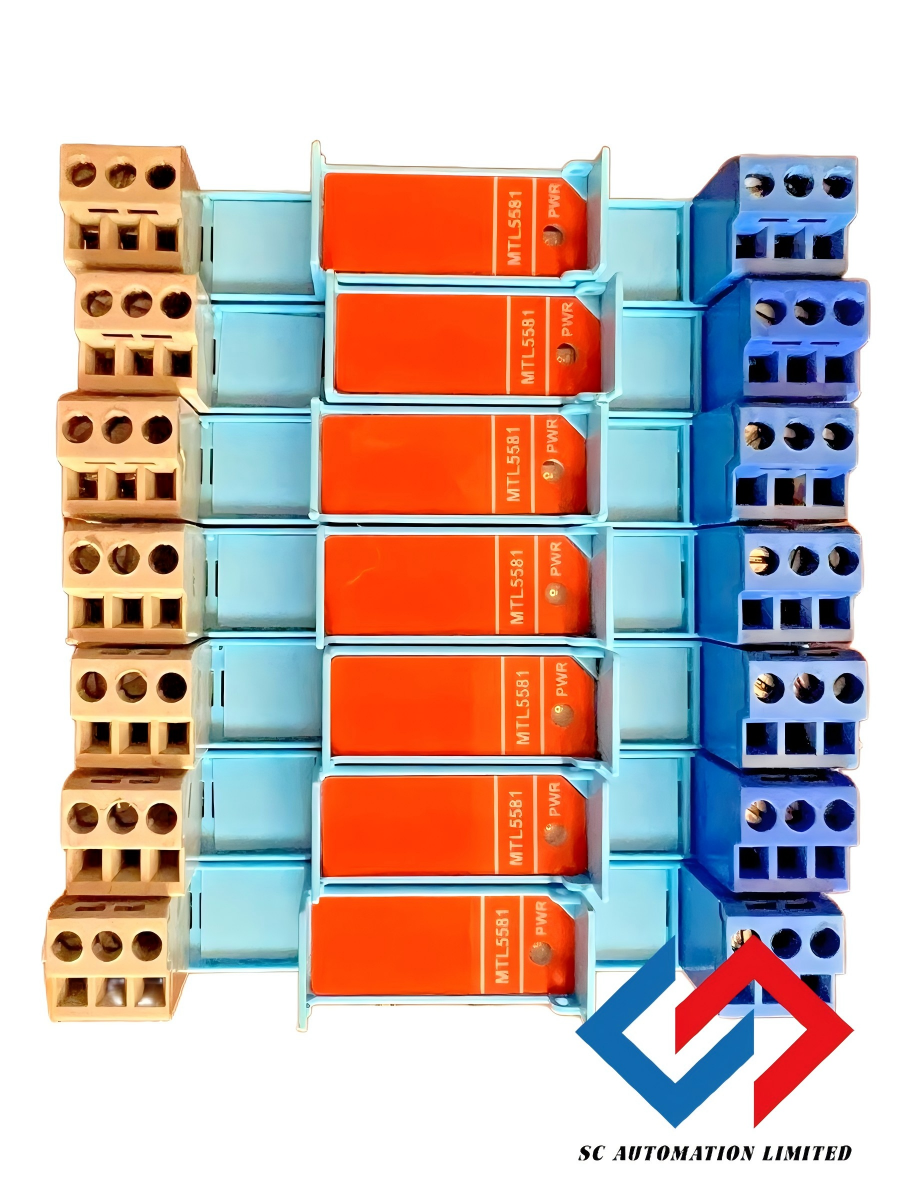

ETN MTL5581 isolator safety barrier 0


ETN MTL5581 isolator safety barrier 1
