| Place of Origin: | DE |
|---|---|
| Brand Name: | P+F |
| Certification: | CE |
| Model Number: | IC-KP2-1HB17-2V1D |
| Document: | IC-KP2-1HB17-2V1D.pdf |
| Minimum Order Quantity: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Original packaging |
| Delivery Time: | 1 week |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
| Number Of Read/write Heads: | Max. 1 | UL File Number: | E87056 |
|---|---|---|---|
| Rated Operating Voltage: | 20 ... 30 V DC , PELV | Material: | Powder Coated Aluminum |
| Installation: | Screw Fixing | Mass: | Mass |
| Highlight: | P+F RFID evaluation unit,RFID sensor with warranty,IC-KP2-1HB17-2V1D RFID unit |
||
Description

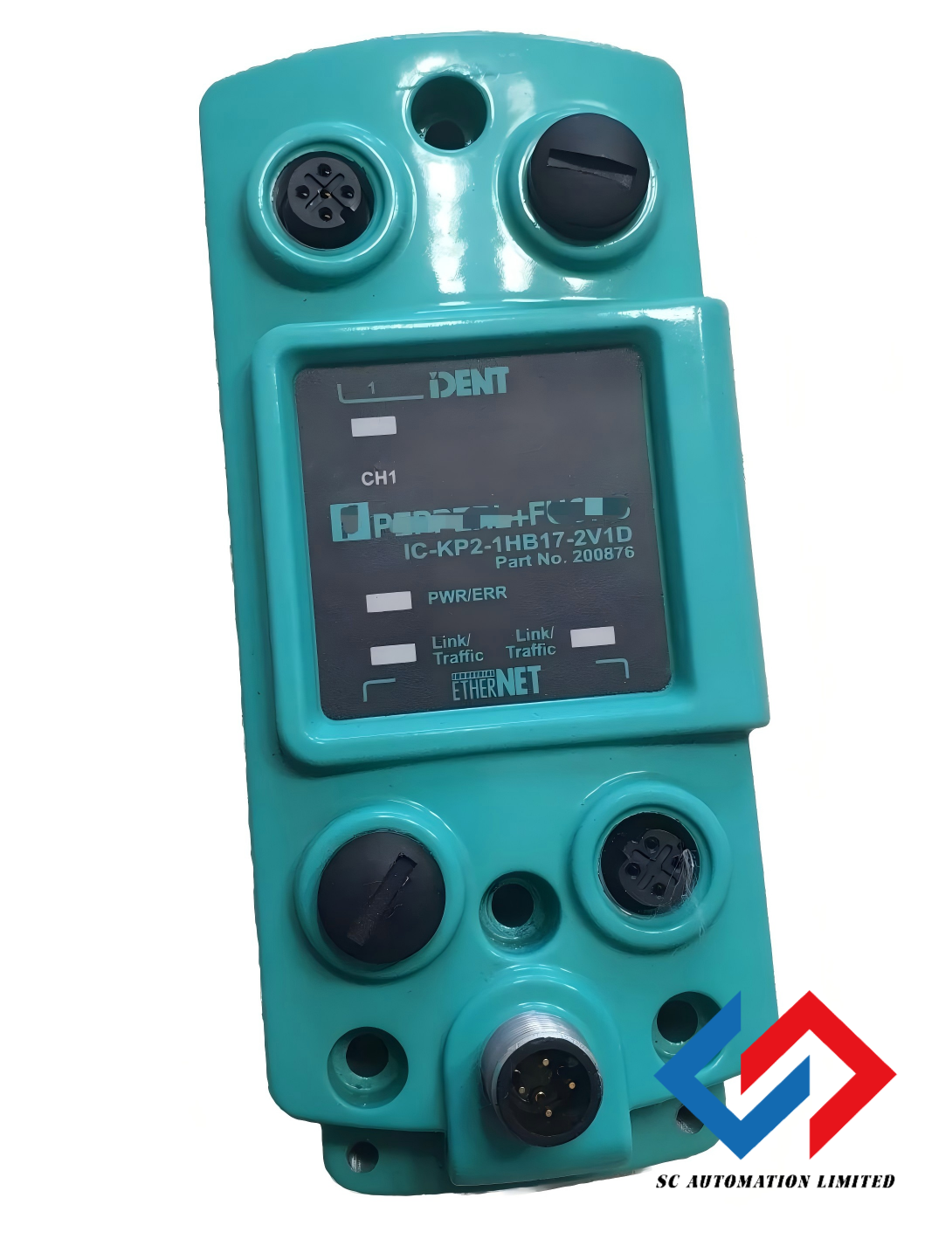

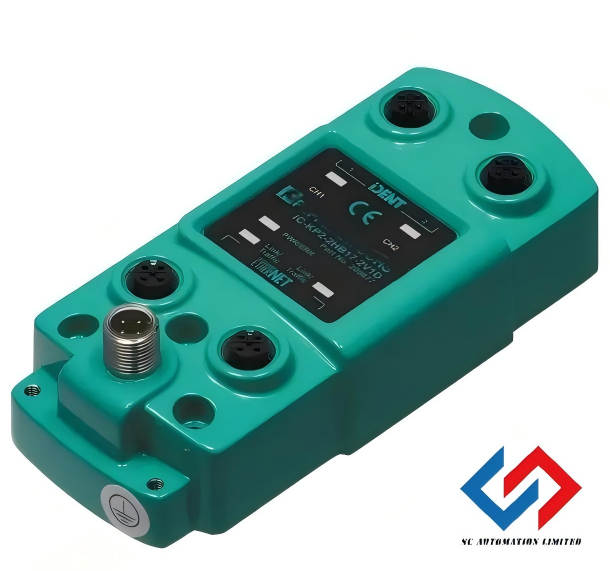

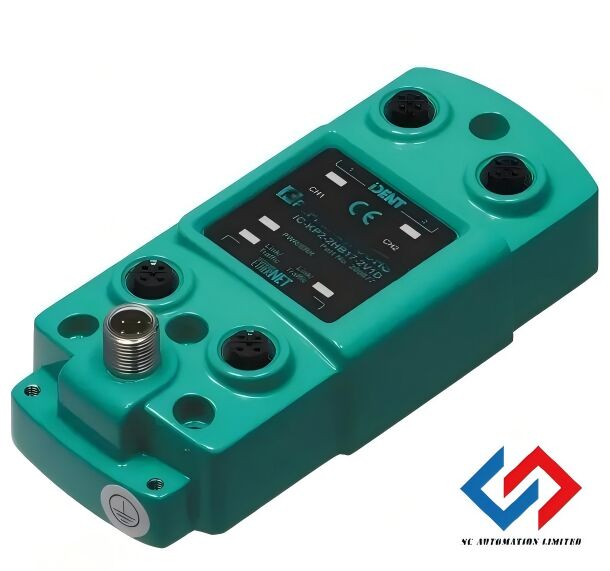

IDENTControl Compact control interface with Ethernet interface for TCP/IP, PROFINET, EtherNet/IP, and MODBUS TCP protocols
Dimensions
![]()
Technical Data
| Number of read/write heads | max. 1 |
| UL File Number | E87056 |
| MTBF |
70 a (Operation at +40 °C)
|
|

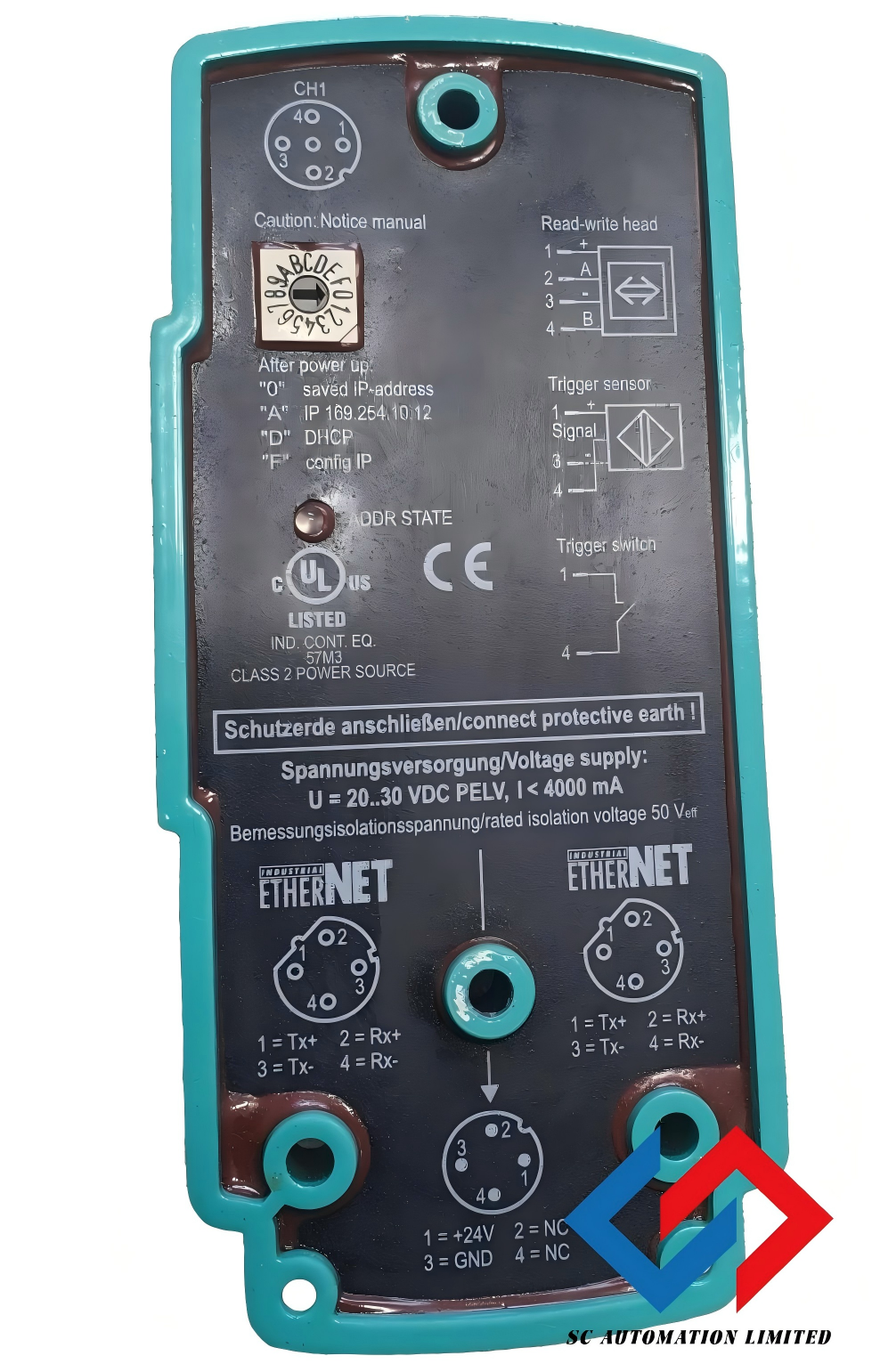

Indicators/operating means
|
|
|
LED Link/Traffic
|
green: network connection
yellow: flashes in rhythm with the transmitted data
|
|
LED 1
|
green: network connection
yellow: flashes in rhythm with the transmitted data
|
|
LED CH1
|
green: network connection
yellow: flashes in rhythm with the transmitted data
|
|
LED PWR/ERR
|
green: power on
yellow: system is starting
red: PROFINET bus failure
|
|
Rotary switch
|
Address setting
|
|
Electrical specifications
|
|
|
Rated operating voltage
|
20 ... 30 V DC , PELV
|
|
Ripple
|
≤ 10 % at 30 V DC
|
|
Current consumption
|
≤ 2 A incl. read/write head
|
|
Power consumption
|
3.5 W Without read/write heads
|
|
Galvanic isolation
|
basic insulation acc. to DIN EN 50178, rated insulation voltage of 50 Veff
|
|
Mechanical specifications
|
|
|
Housing length
|
137 mm
|
|
Housing width
|
62 mm
|
|
Housing height
|
42 mm
|
|
Degree of protection
|
IP67
|
Accessory
| V1-G-5M-PUR-ABG | V1-G-2M-PUR-ABG-V1-W | V1-G-5M-PUR-ABG-V1-W | V1SD-G-GN5M-PUR-E1S-V45-G |
| V1-G-10M-PUR-ABG-V1-W | ICZ-MH05-SACB-8 | IQH1-F61-V1 | IQH1-18GM-V1 |
| IQH1-FP-V1 | IQH3-FP-V1 | IQH1-F198-V1 | IQH1-FP7V4A |
| IQH1-FP-V1-Ex GUBW1 | IQH1-30GM-Ex | IQH1-F198-M-V1 |
![]()
