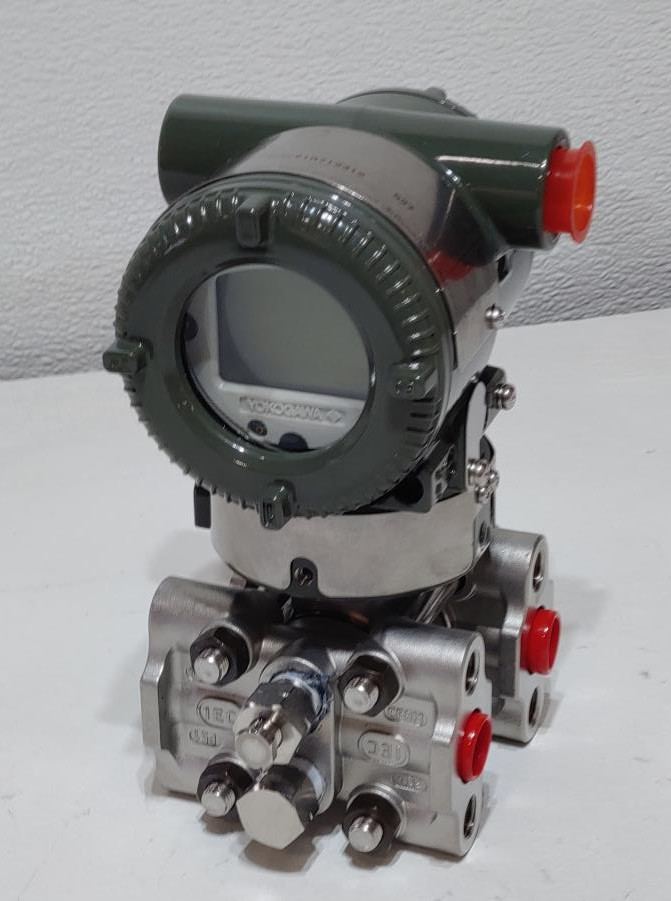

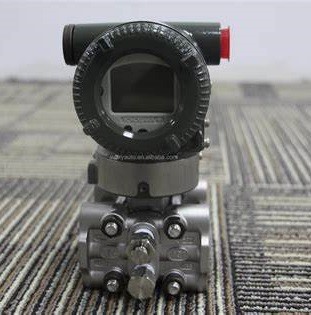

EJA110E Dp Transmitter EJA110E-DMS4J-912DB Differential Pressure Level Transmitter 100kPa
Product Details:
| Place of Origin: | Japan |
| Brand Name: | YOKOGAWA |
| Certification: | CE |
| Model Number: | EJA110E-DMS4J-912DB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Output Signa: | 4 To 20 MA DC With Digital Communication (BRAIN Protocol) | Measurement Span (capsule): | 1 To 100 KPa (4 To 400 InH2O) |
|---|---|---|---|
| Process Connections: | With 1/2 NPT Female Process Connecto | Bolts And Nuts Material: | B7 Carbon Steel |
| Installation: | Horizontal Piping And Left Side High Pressure | Amplifier Housing: | Cast Aluminum Alloy |
| Electrical Connection: | 1/2 NPT Female, Two Electrical Connections Without Blind Plugs | Integral Indicator: | Digital Indicator*8 |
| Mounting Bracket: | 304 SST 2-inch Pipe Mounting, Flat Type (for Horizontal Piping) | Degrees Of Protection: | IP66/IP67, Type 4X |
| Highlight: | EJA110E dp transmitter,dp transmitter EJA110E-DMS4J-912DB,differential pressure level transmitter 100kPa |
||
Product Description

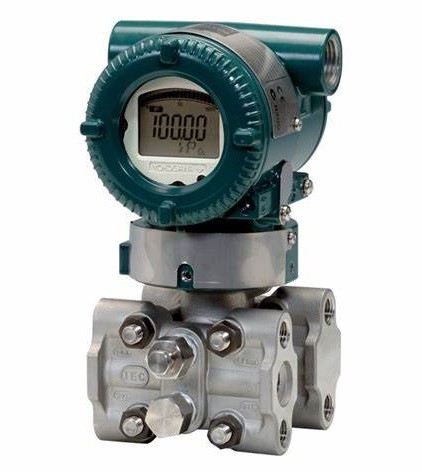

EJA110E Differential Pressure Transmitter EJA110E-DMS4J-912DB
The high performance diff erential pressure transmitter EJA110E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam fl ow as well as liquid level, density and pressure. EJA110E outputs a 4 to 20 mA DC signal corresponding to the measured diff erential pressure. Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. EJA-E series models in their standard confi guration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certifi ed as complying with SIL 2 for safety requirement.
EJA110E Specification Overview
| Measurement Types | |
| Primary Variable | Differential Pressure (DP) |
| Secondary Variable | Static Pressure (SP) |
| Reference Accuracy | |
| Primary Variable | ±0.055% of Span |
| Secondary Variable | ±0.5% of Span available |
| Response Time | |
| Primary Variable | 90 msec |
| Secondary Variable | 360 msec |
| Long Term Stability | |
| Primary Variable | ±0.1% of URL per 10 years |
| Over-pressure Effect | |
| Primary Variable | ±0.03% of URL |
| Rangeability | |
| Primary Variable | 100:1 |
