P+F K-LB-1.30G Surge Protection Barrier 8 Terminals For Unprotected Area
Product Details:
| Place of Origin: | Germany |
| Brand Name: | P+F |
| Certification: | CE |
| Model Number: | K-LB-1.30G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Number Of Protected Signal Lines: | 2 | Topology: | Grounded |
|---|---|---|---|
| Safety Integrity Level (SIL): | SIL 3 | Connection: | Protected Area: Terminals 7, 8 Unprotected Area: Terminals 1, 2 |
| Rated Current: | 250 MA | Leakage Current: | < 10 µA At 24 V And 25 °C (77 °F) , Line-line |
| Nominal Voltage: | 24 V DC | Maximum Continuous Operating Voltage: | 30 V DC |
| Highlight: | P+F Surge Protection Barrier,Surge Protection Barrier K-LB-1.30G,8 Terminals P+F Sensors |
||
Product Description

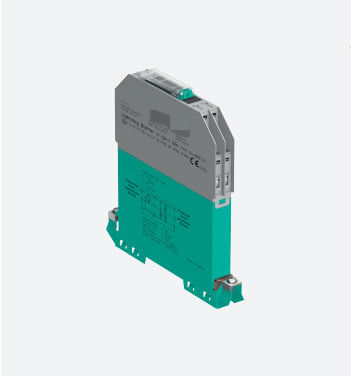

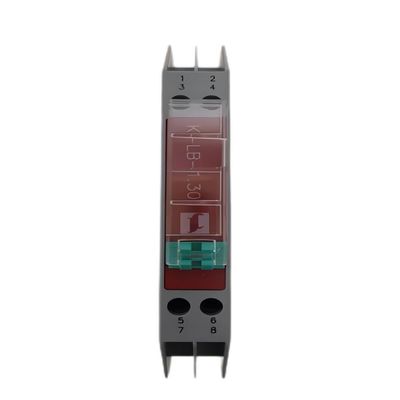

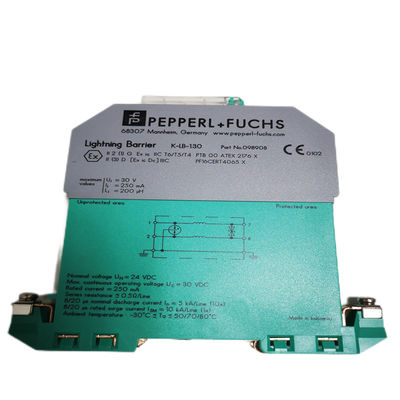

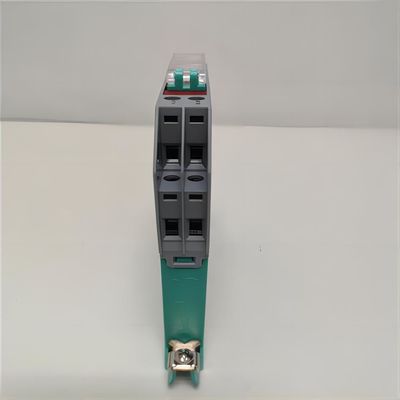

Surge Protection Barrier K-LB-1.30G
-
1-channel
-
Mounting on DIN mounting rail
-
For intrinsically safe or non-intrinsically safe 30 V applications
-
Protects field or control circuit inputs
-
Max. surge current (8/20 µs) 20 kA
-
Uninterruptable operation (auto reset)
-
Up to SIL 3 acc. to IEC/EN 61508
|
General specifications |
||
|---|---|---|
|
Number of protected signal lines |
2 |
|
|
Topology |
grounded |
|
|
Functional safety related parameters |
||
|
Safety Integrity Level (SIL) |
SIL 3 |
|
|
Electrical specifications |
||
|
Connection |
protected area: terminals 7, 8 |
|
|
Rated current |
250 mA |
|
|
Leakage current |
< 10 µA at 24 V and 25 °C (77 °F) , line-line |
|
|
Nominal voltage |
24 V DC |
|
|
Maximum continuous operating voltage |
30 V DC |
|
|
Series resistance |
< 0.5 Ω per line |
|
|
Impulse rating |
10 kV/5 kA (category C2) |
|
|
Impulse discharge current (10/350 µs) |
2 kA per line (2x) |
|
|
Nominal discharge current (8/20 µs) |
5 kA per line (10x) |
|
|
Rated surge current (8/20 µs) |
10 kA per line (1x) |
|
|
Total discharge current (8/20 µs) |
20 kA (1x) |
|
|
Voltage protection level |
max. 100 V line-line for nominal discharge current In |
|
|
Impulse reset time |
< 30 ms |
|
|
Insertion loss |
≤ 0.05 dB, at 0 ... 4 kHz, in 600 Ω-System |
|
|
Indicators/settings |
||
|
Labeling |
space for labeling at the front |
|
|
Conformity |
||
|
Degree of protection |
IEC 60529:2013 |
|
|
Surge protective devices for low voltage |
EN 61643-21:2001+A1:2009+A2:2013 |
|
|
Operating conditions |
||
|
Installation conditions |
|
|
|
|
Mounting location |
indoor |
|
Ambient conditions |
||
|
Ambient temperature |
-30 ... 80 °C (-22 ... 176 °F) |
|
|
Relative humidity |
5 ... 95 % |
|
|
Mechanical specifications |
||
|
Degree of protection |
IP20 |
|
|
Connection |
screw terminals |
|
|
Core cross section |
2 x 2.5 mm2 |
|
|
Mass |
approx. 100 g |
|
|
Dimensions |
12.5 x 115 x 116 mm (0.5 x 4.5 x 4.6 inch) (W x H x D) |
|
|
|
Height |
115 mm |
|
|
Width |
12.5 mm |
|
|
Depth |
116 mm |
|
Mounting |
on 35 mm DIN mounting rail acc. to EN 60715:2001 |
|
|
Data for application in connection with hazardous areas |
||
|
EU-type examination certificate |
PTB 00 ATEX 2176 X |
|
|
|
Marking |
|
|
|
Temperature class |
T6 for ambient temperature ≤ 50 °C |
|
|
Voltage |
30 V |
|
|
Current |
250 mA |
|
|
Internal capacitance |
negligible |
|
|
Internal inductance |
200 µH |
|
Certificate |
PF 16 CERT 4065 X |
|
|
|
Marking |
|
|
Directive conformity |
|
|
|
|
Directive 2014/34/EU |
EN 60079-0:2012+A11:2013 , EN 60079-11:2012 |
|
International approvals |
||
|
CSA approval |
|
|
|
|
Control drawing |
116-0187 (cCSAus) |
|
IECEx approval |
|
|
|
|
IECEx certificate |
IECEx BAS 14.0010X |
