MTL4514D – MTL5514D Switch/Proximity Detector Interface for Harsh Environments
Product Details:
| Place of Origin: | England |
| Brand Name: | MTL |
| Certification: | CE |
| Model Number: | MTL4514 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Number Of Channels: | One | Location Of Switch: | Zone 0, IIC, T6 Hazardous Area Div.1, Group A, Hazardous Location |
|---|---|---|---|
| Location Of Proximity Detector: | Zone 0, IIC, T4–6 Hazardous Area, If Suitably Certified Div.1, Group A, Hazardous Location | Hazardous–area Inputs: | Inputs Conforming To BS EN60947–5–6:2001 Standards For Proximity Detectors (NAMUR) |
| Voltage Applied To Sensor: | 7 To 9V Dc From 1kΩ ±10% | Safe-area Output: | Two, Single Pole Relays With Normally-open Contact |
| Highlight: | MTL5514D Switch/Proximity Detector Interface,MTL4514D Switch/Proximity Detector Interface,Harsh Environments Switch/Proximity Detector Interface |
||
Product Description

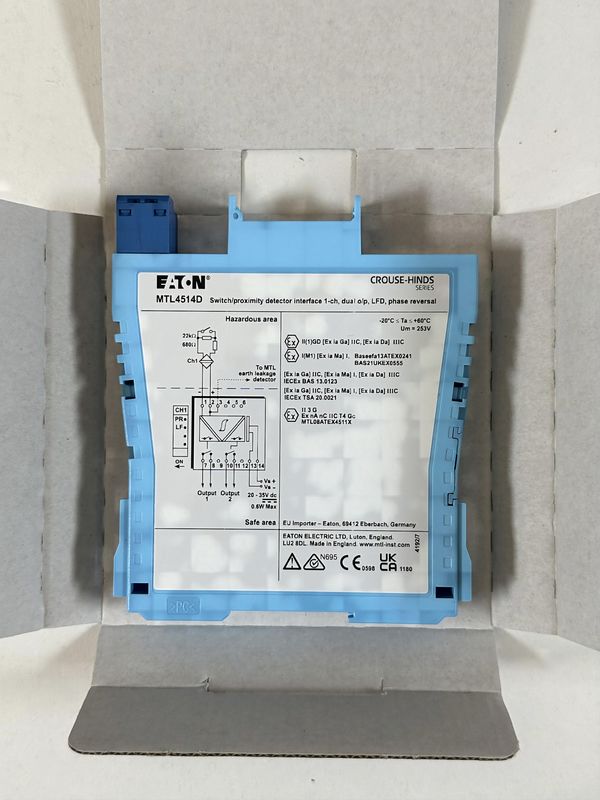

MTL4514D – MTL5514D SWITCH/ PROXIMITY DETECTOR INTERFACE

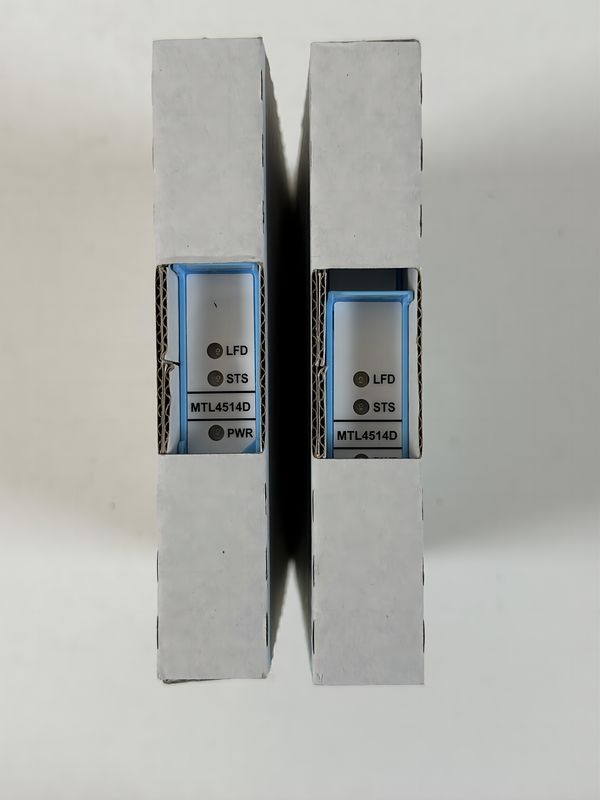

The MTLx514D enables two safe–area loads to be controlled, through relays, by a proximity detector or switch located in a hazardous area. When selected, open or short circuit conditions in the field wiring are detected by the line fault detect (LFD) facility and indicated on the top of the module. Switches are provided to select phase reversal and to enable the line fault detection.
Relay characteristics
| MTL4514D | MTL5514D | |
| Response time: | 10ms maximum | 10ms maximum |
| Contact rating (Safe Area): | 10W, 0.5A, 35V dc | 250V ac, 2A, cosØ >0.7, 40V dc, 2A, resistive load |
| Contact rating (Zone 2): | 10W, 0.5A, 35V dc | 35V, 2A, 100VA. |
