Endress+Hauser Proline Promag W 300 Electromagnetic Flowmeter 5W3B80
Product Details:
| Place of Origin: | Germany |
| Brand Name: | Endress+Hauser |
| Certification: | CE |
| Model Number: | 5W3B80-AAEIBAAAFAAUD5K0AA2+AADAJA(5W3B80-E1T0/101) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiable |
| Packaging Details: | standard carton packing |
| Delivery Time: | on request |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Nominal Diameter Range: | DN 25 To 3000(1 To 120") | Measured Variables: | Volume Flow, Conductivity, Mass Flow |
|---|---|---|---|
| Max. Process Pressure: | PN 40, Class 300, 20K | Inputs: | Status Input 4-20 MA Input |
| Power Supply: | DC 24 V AC 100 To 230 V AC 100 To 230 V / DC 24 V (non-hazardous Area) | Product Safety: | CE, C-tick, EAC Marking |
| Highlight: | 5W3B80 electromagnetic flowmeter,Proline Promag W 300 electromagnetic flowmeter,5W3B80 |
||
Product Description

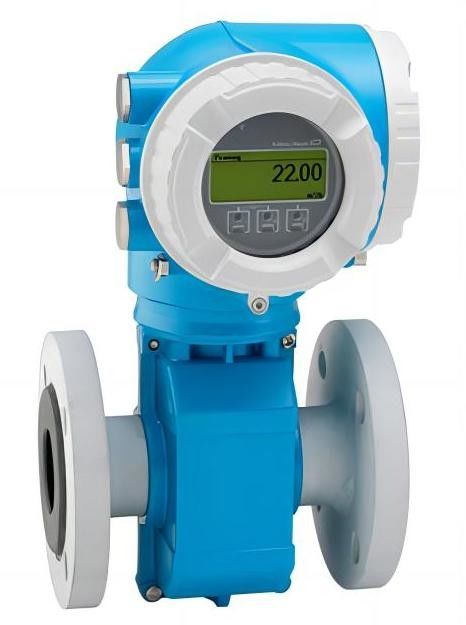

Endress+Hauser Proline Promag W 300 electromagnetic flowmeter 5W3B80
The premium device for water and wastewater measurement Promag W 300 was designed for reliable use in hazardous areas and under harsh conditions. Its compact transmitter offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables measurement reliability and compliant verification.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
-
Dedicated to the measurement of industrial or municipal water and wastewater
Device properties
-
International drinking water approvals
-
Degree of protection IP68 (Type 6P enclosure)
-
Approved for custody transfer to MI-001/OIML R49
-
Compact dual-compartment housing with up to 3 I/Os
-
Backlit display with touch control and WLAN access
-
Remote display available
Related model
| 50W25-UA0A1AA0AAAA Successor type: 5W4C25-AAELHA0AUD5K0A | 5W4C25-5NT3/0 |
50P40-EA2A1AAOBAAA Successor type: 5P3B40-AAIBAEAFADED5K2AA2 | 5P3B40-1F7H1/0 |
| 5P3B50-AAIBAEAFAAAD5K1AA2 | 5P3B50-17WF4/0 |
53H80-A00B1AA0ABAB Successor type: 5H3B80-AAIBAEHFAA00000BA2 | 5H3B80-AP89/0 |
| PMP635-R43L9M1AEU1 Successor type:PMP75-ACA1MB1B4AAA | PMP75-2F86/142 |
53H40-A00B1AA1ABAB Successor type:5H3B40-AAIBAEHFAA00000BA2 | 5H3B40-9E94/0 |
| 50P40-EA2A1AA0AAAA Successor type:5P3B40-AAIBAEAFAAED5K2AA2 | 5P3B40-PLJ9/0 |
50P80-EA2A1AA0BAAA Successor type: 5P3B80-AAIBAEAFADED5K2AA2 | 5H3B40-9E94/0 |
| 50P80-EA1A1AAOBAAA Successor type:5P3B80-AAIBAEAFADED5K1AA2 | 5P3B80-25ET9/0 | 50W3H-HD0A1AA0A5AA Successor type: 5W4C3H-AAELHA0AHD2K0A | 5H3B40-9E94/0 |
| 53P1Z-EH2B1BA0ABAA Successor type:5P3B1Z-BDDBAEAFAAED3S2BA2 | 5P3B1Z-DEV5/0 | 80E08-AD2SAABAAAAA Successor type: 8E3B08-BDEBAEAFAASAD2SHA2 | 8E3B08-R5K1/0 |
| 50P50-EA2A1AA0BAAA Successor type:5P3B50-AAIBAEAFADED5K2AA2 | 5P3B50-2JKV5/0 | 50W25-UA0A1AA0A4AA Successor type: 5W4C25-AAELHA0AUD5K0A | 5W4C25-5NT3/0 |
| 80E08-AD2SAABAABAA Successor type:8E3B08-BDDBAEAFAASAD2SHA2 | 8E3B08-R5J6/0 | 50W1H-HCOA1AA0AAAA Successor type: 5W4C1H-AAELHA0AHD3K0A | 5W4C1H-L7L0/0 |
| 50W32-UA0A1A10AAAW Successor type:5W4C32-AAELHA0AUD5K0A | 5W4C32-2AT4/0 | 50W5H-HC0A1AK1ABAA Successor type: 5W4C5H-AAGLHP1AHD3K0A+CB | 5W4C5H-XLN5/0 |
| 50P50-EA2A1AA0BAAA Successor type:5P3B50-AAIBAEAFADED5K2AA2 | 5P3B50-2JKV5/0 | 53W65-HHOB1BA0ABAA Successor type:5W3B65-BDEDBAEAFAAHD3S0BA2+D8LA | 5W3B65-64E6/0 |
| 80E08-AD2SAABAABAA Successor type:8E3B08-BDDBAEAFAASAD2SHA2 | 8E3B08-R5J6/0 | 50W1Z-HC0A1AA0ABAA Successor type:5W4C1Z-AAELHA0AHD3K0A | 5W4C1Z-4FC0/0 |
| 53P1H-ECOB1BA0ABAA Successor type: 5P3B1H-BDDBAEAFAAED3K0BA2 | 5P3B1H-1VJ61/0 |
50P1H-EC1A1A10AAAA Successor type: 5P3B1H-AAIBAEAFAAED3K1AA2 | 5P3B1H-W4T6/0 |
| 50W3H-HCOA1AA0ABAA Successor type: 5W4C3H-AAELHA0AHD3K0A | 5W4C3H-D530/0 |
10W40-UAGA1AA0B4AA Successor type: 5WBB40-AAEAEBKA0DUD5KGAA1 | 5WBB40-AQ56/0 |
| 50W4F-HC0A1AK2ABAA Successor type: 5W4C4F-AAGLHP2AHD3K0A+CB | 5W4C4F-FMV7/0 |
50W40-UL1A1AA0A4AA Successor type:5W4C40-AAELHA0AUA1K1A | 5W4C40-6JK1/0 |
