P+F Switch Amplifier KFD2-SR2-Ex2.W

Name: P+F Switch Amplifier KFD2-SR2-Ex2.W with B2 Housing Type
Brand: SC Automation Limited
SKU: KFD2-SR2-Ex2.W
Price: 898.00 USD
Availability: InStock

This isolated barrier is used for intrinsic safety applications.

The device transfers digital signals from NAMUR sensors or dry contacts from the hazardous area to the non-hazardous area.

The proximity sensor or the mechanical contact controls the control side load for a relay contact output. The device output changes the state when

the input signal changes the state.

Via switches the mode of operation can be reversed and the line fault detection can be switched off.

During a fault condition, the relay reverts to its de-energized state and the LEDs indicate the fault according to NAMUR NE 44.

If the device is operated via Power Rail, additionally a collective error message is available.

General specifications
Signal type		Digital Input
Functional safety related parameters
Safety Integrity Level (SIL)		SIL 2
Systematic capability (SC)		SC 3
Supply
Connection		Power Rail or terminals 14+, 15-
Rated voltage		19 ... 30 V DC
Ripple		≤ 10 %
Rated current		≤ 50 mA
Power dissipation		≤ 1 W
Power consumption		≤ 1 W
Input
Connection side		field side
Connection		terminals 1+, 2+, 3-; 4+, 5+, 6-
Rated values		acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current		approx. 8 V DC / approx. 8 mA
Switching point/switching hysteresis		1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection		breakage I ≤ 0.1 mA , short-circuit I > 6 mA
Pulse/Pause ratio		min. 20 ms / min. 20 ms
Output
Connection side		control side
Connection		output I: terminals 7, 8, 9 ; output II: terminals 10, 11, 12
Output I, II		signal, relay
Contact loading		250 V AC/2 A/cos φ > 0.75; 126.5 V AC/4 A/cos φ > 0.75; 40 V DC/2 A resistive load
Minimum switch current		2 mA / 24 V DC
Energized/De-energized delay		approx. 20 ms / approx. 20 ms
Mechanical life		10⁷ switching cycles
Collective error message		Power Rail
Transfer characteristics
Switching frequency		≤ 10 Hz
Galvanic isolation
Input/Output		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Input/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Output/power supply		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Output/Output		reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V_eff
Indicators/settings
Display elements		LEDs
Control elements		DIP switch
Configuration		via DIP switches
Labeling		space for labeling at the front
Directive conformity
Electromagnetic compatibility
	Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Low voltage
	Directive 2014/35/EU	EN 61010-1:2010+A1:2019+A1:2019/AC:2019
Conformity
Electromagnetic compatibility		NE 21:2017 , EN 61326-3-1:2017 , EN IEC 61326-3-2:2018
Degree of protection		IEC 60529:1989+A1:1999+A2:2013
Functional safety		IEC/EN 61508:2010
Input		EN 60947-5-6:2000
Ambient conditions
Ambient temperature		-40 ... 70 °C (-40 ... 158 °F)
Mechanical specifications
Degree of protection		IP20
Connection		screw terminals
Mass		approx. 150 g
Dimensions		20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
	Height	119 mm
	Width	20 mm
	Depth	115 mm
Mounting		on 35 mm DIN mounting rail acc. to EN 60715:2001
Data for application in connection with hazardous areas
EU-type examination certificate		PTB 00 ATEX 2080
	Marking	II (1)G [Ex ia Ga] IIC II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I
	Input	Ex ia
	Voltage	10.5 V
	Current	13 mA
	Power	34 mW (linear characteristic)
Supply
	Maximum safe voltage	253 V AC / 125 V DC (Attention! U_m is no rated voltage.)
Output
	Maximum safe voltage	253 V AC (Attention! The rated voltage can be lower.)
Fault indication output
	Maximum safe voltage	40 V DC (Attention! U_m is no rated voltage.)
Certificate		PF 08 CERT 0803
	Marking	II (3)G [Ex ic Gc] IIC
Input		Ex ic
	Voltage	10.5 V
	Current	13 mA
	Power	34 mW (linear characteristic)
Certificate		TÜV 99 ATEX 1493 X
	Marking	II 3G Ex ec nC IIC T4 Gc
Galvanic isolation
	Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
	Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity
	Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019
International approvals
FM approval
	FM certificate	FM19US0207X
	Control drawing	116-0035
UL approval		E106378
	Control drawing	116-0473 (cULus)
	Contact loading	250 V AC/2 A/cos φ > 0.75; 126.5 V AC/4 A/cos φ > 0.75; 30 V DC/2 A resistive load
IECEx approval
	IECEx certificate	IECEx PTB 11.0034 , IECEx TUN 19.0013X
	IECEx marking	[Ex ia Ga] IIC [Ex ia Da] IIIC [Ex ia Ma] I Ex ec nC IIC T4 Gc

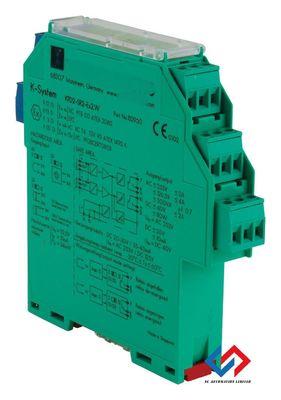

P+F Switch Amplifier KFD2-SR2-Ex2.W with B2 Housing Type 5

P+F Switch Amplifier KFD2-SR2-Ex2.W with B2 Housing Type 6
